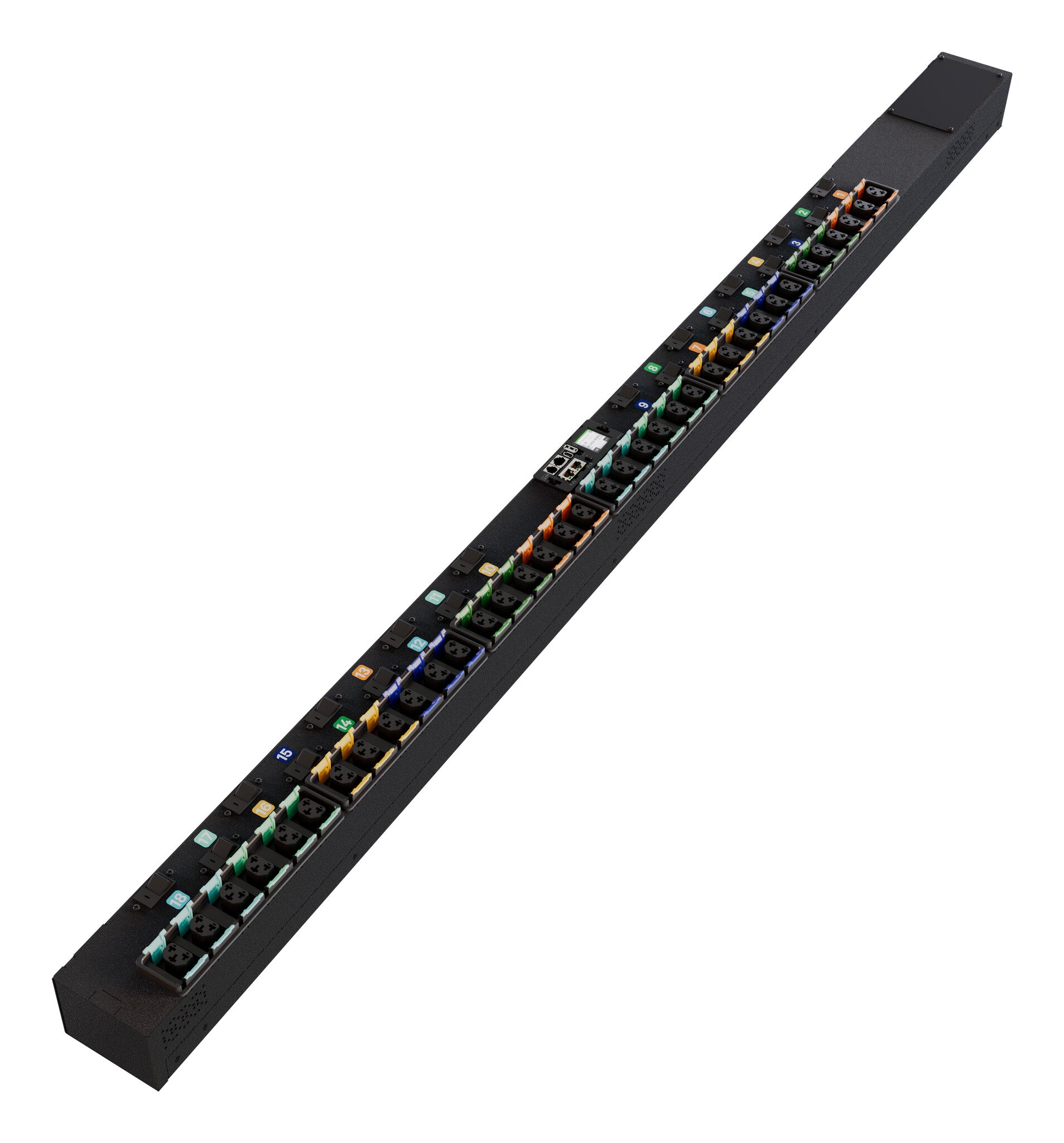

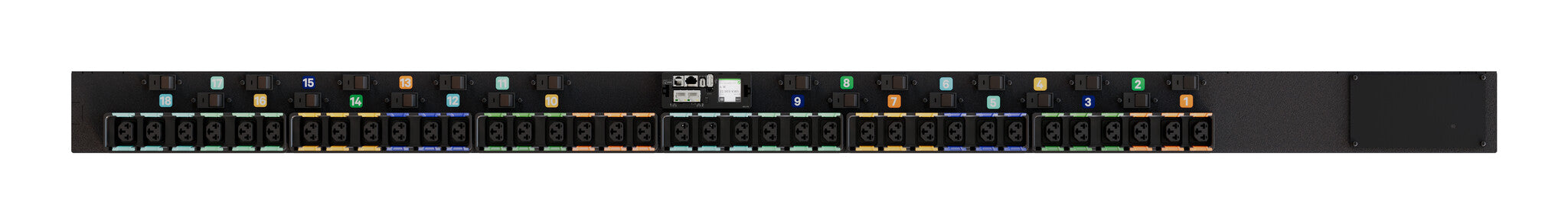

Vertiv PowerIT rack power distribution unit, 57.6kW, hardwired input plug, TAA Compliance, RoHS, China RoHS, UL-listed
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,091.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
- Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
- Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
- Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
- Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase
The Vertiv PowerIT Switched Unit Level Monitored High Density Rack Power Distribution Unit (rPDU) VP5UA0A0 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level switching. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a hardwired input plug providing 57.6kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Specifications
Design
| Product colour | Black |
|---|---|
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Three-phase |
| PDU types | Switched |
Ports & interfaces
| USB ports quantity | 1 |
|---|---|
| Serial ports quantity | 1 |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 36 AC outlet(s) |
Show all 21 specificationsShow fewer specifications
Management features
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
|---|
Power
| Power protection features | Over current |
|---|---|
| Maximum power | 57600 W |
| Maximum current | 80 A |
| Nominal input voltage | 240 - 415 V |
Certificates
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
|---|---|
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
Weight & dimensions
| Weight | 9.98 kg |
|---|---|
| Height | 1682.8 mm |
| Depth | 76.2 mm |
| Width | 96.5 mm |
General
| Product family | PowerIT |
|---|
