£3,954.99

Stock Available: 0
  • Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
  • Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
  • Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
  • Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
  • Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

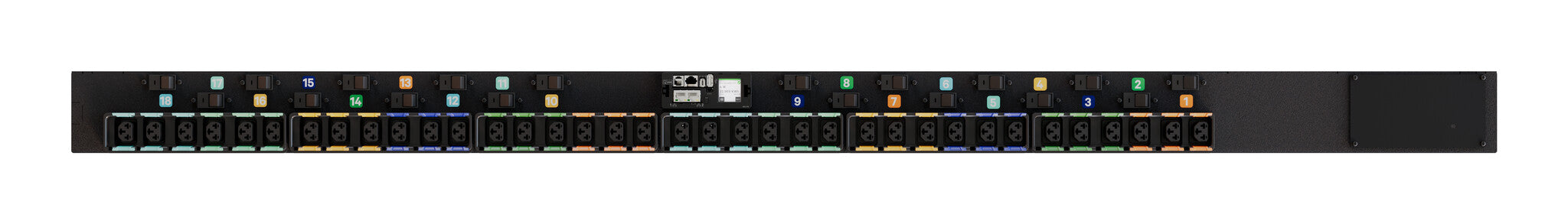

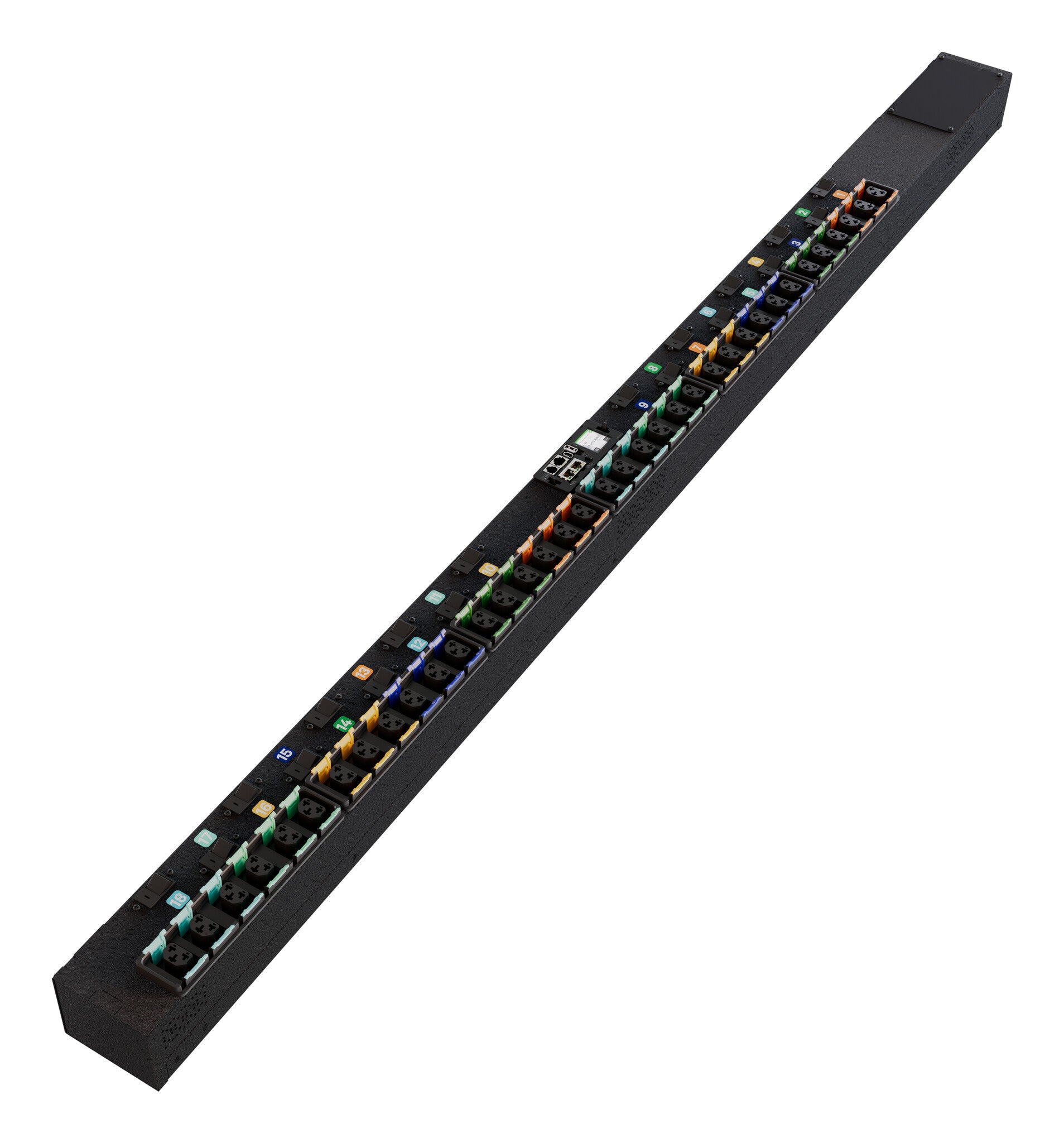

The Vertiv PowerIT Switched Outlet Level Monitored High Density Rack Power Distribution Unit (rPDU) VP7UA0A0 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a hardwired input plug providing 57.6kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

Design
Product colour Black
Mounting Vertical
Rack capacity 0U
Type Three-phase
PDU types Monitored, Switched
Ports & interfaces
USB ports quantity 1
Serial ports quantity 1
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 36 AC outlet(s)
Management features
Management platform DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
Power
Power protection features Over current
Maximum power 57600 W
Maximum current 80 A
Nominal input voltage 240 - 415 V
Certificates
Certification UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1
Compliance certificates China RoHS, Trade Agreements Act (TAA), RoHS
Weight & dimensions
Weight 9.98 kg
Height 1682.8 mm
Depth 76.2 mm
Width 96.5 mm
Packaging data
Package height 177.8 mm
Package depth 2209.8 mm
Package width 279.4 mm
Package weight 9.98 kg
General
Product family PowerIT
Logistics data
Country of origin United States
