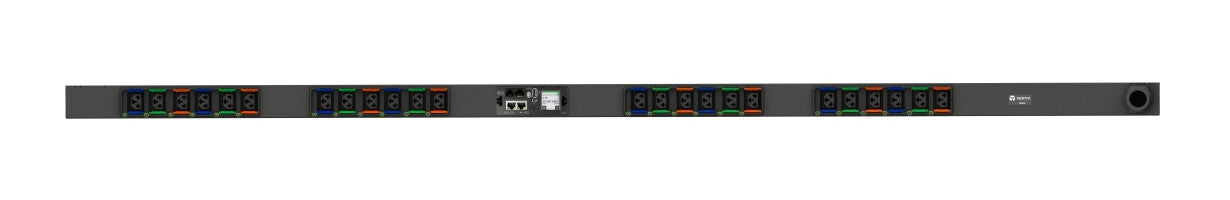

Vertiv MGR5MGB0-24CF13-2PS56B2A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £620.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Three-phase Monitored 0U Black
- LCD
- 24 AC outlet(s) C13 coupler, C19 coupler
- 11000 W
Overview
Upgradeable Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
Fault-Tolerant
Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Specifications
Design
| Display | LCD |
|---|---|
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Three-phase |
| PDU types | Monitored |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 24 AC outlet(s) |
Show all 26 specificationsShow fewer specifications
Features
| Cable length | 3 m |
|---|---|
| Reset button | Yes |
| Daisy chain | Yes |
Management features
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Power protection features | Over current |
|---|---|
| Maximum power | 11000 W |
| Load capacity | 11000 VA |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 200 - 415 V |
Certificates
| Compliance certificates | CE, UKCA, RoHS, RCM, China RoHS |
|---|
Weight & dimensions
| Weight | 8.16 kg |
|---|---|
| Height | 1683 mm |
| Depth | 66 mm |
| Width | 51 mm |
