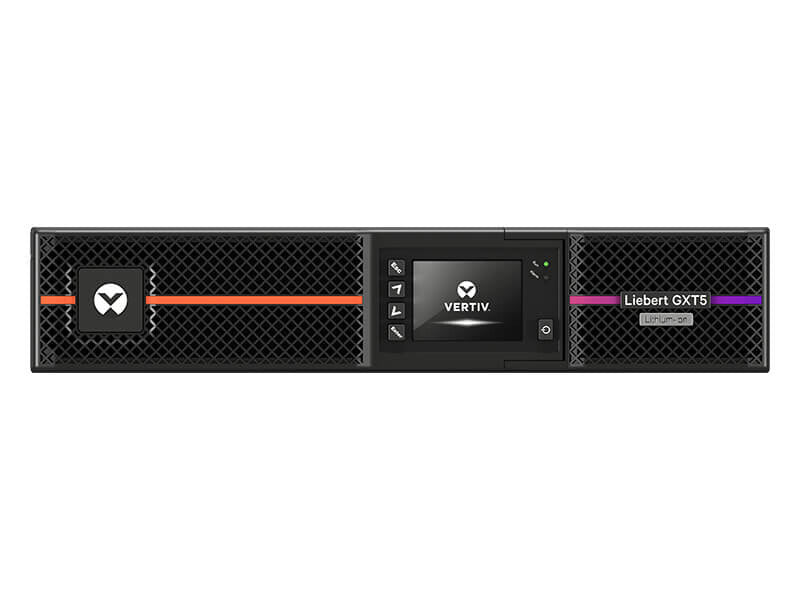

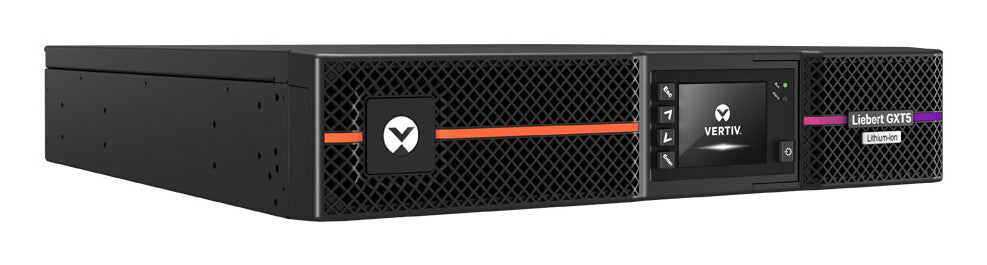

Vertiv Liebert GXT5 Lithium-Ion Online UPS 1000 VA/1000 W 230 V Rack/Tower
Couldn't load pickup availability
- Lithium-Ion UPS batteries last up to 3x longer than traditional VRLA batteries; with 5-year warranty on UPS and batteries
- Offers lowest total cost of ownership (TCO) with fewer or no battery replacements over its lifetime
- Environmentally friendly UPS reduces battery disposal and recycling with lower replacement rates
- The 1 kVA UPS offers longer runtime and faster recharge time
- Add 1U external battery cabinet units to power the UPS for scalable runtime
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium LFB batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Power factor | 0.99 |
| Efficiency (On-line mode) | 93% |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 115 V |
| Waveform | Pure sine |
| Output power | 1000 W |
| Output power capacity | 1 kVA |
| UPS topology | Double-conversion (Online) |

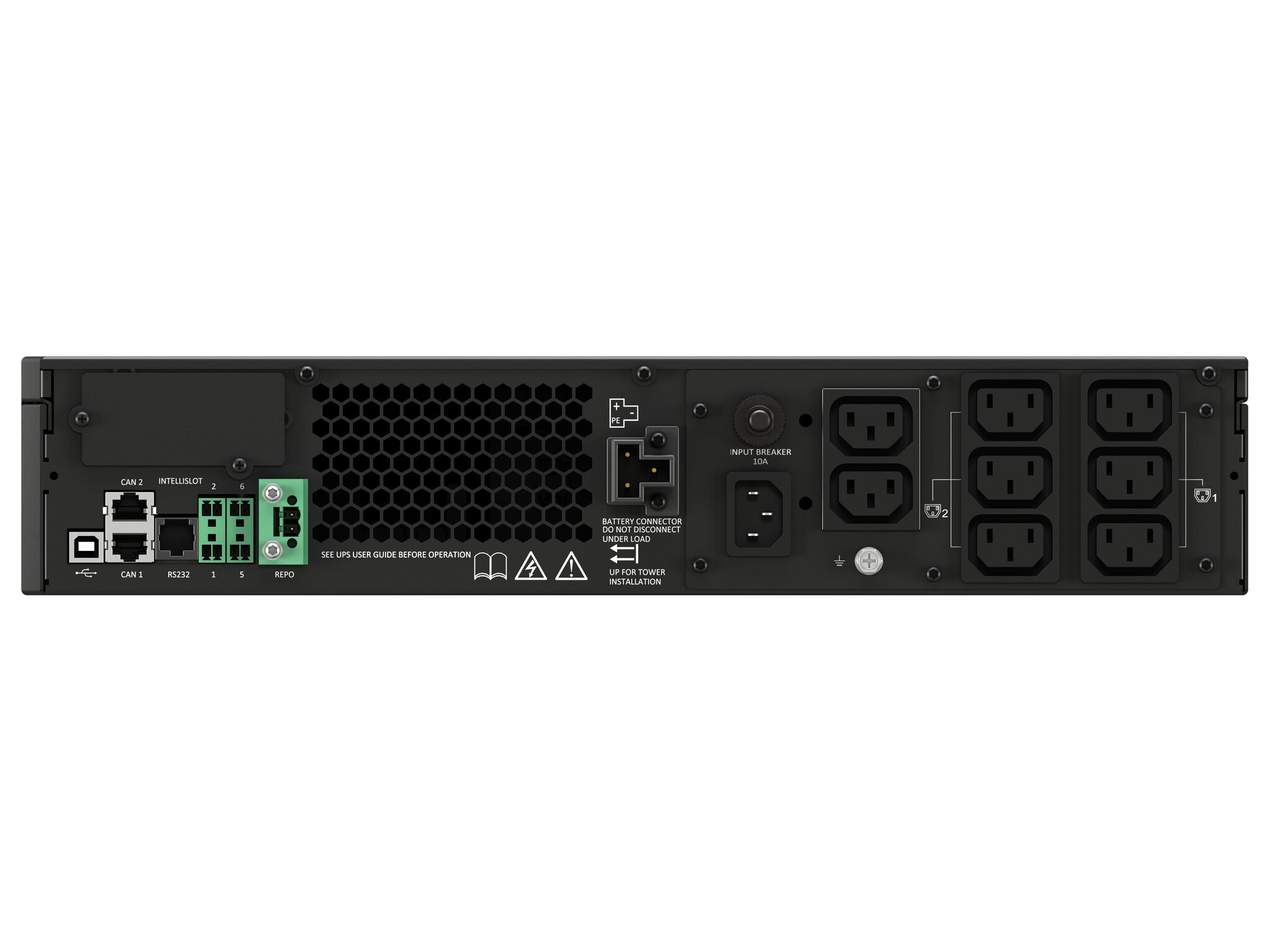

| Ports & interfaces | |
|---|---|
| Serial interface | Yes |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Typical backup time at half load | 26.5 min |
| Typical backup time at full load | 12 min |
| Design | |
|---|---|
| LED indicators | Yes |
| Display type | LCD |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| General | |
|---|---|
| Product family | Liebert |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Cables included | USB cable |
| Certificates | |
|---|---|
| Certification | UL1778,4thEd.FCCPart15ClassAANSIC62.41Cat.BISTA1A |
| Compliance certificates | REACH, RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 15 kg |
| Height | 85 mm |
| Depth | 446 mm |
| Width | 430 mm |
| Packaging data | |
|---|---|
| Package weight | 21 kg |
| Package height | 242 mm |
| Package depth | 597 mm |
| Package width | 570 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Other features | |
|---|---|
| Packaging content | GXT5LI UPS, USB Cable, Quick Install Guide (QIG), 4-Post Rack 2U Rail Kit, Tower Base Kit |
