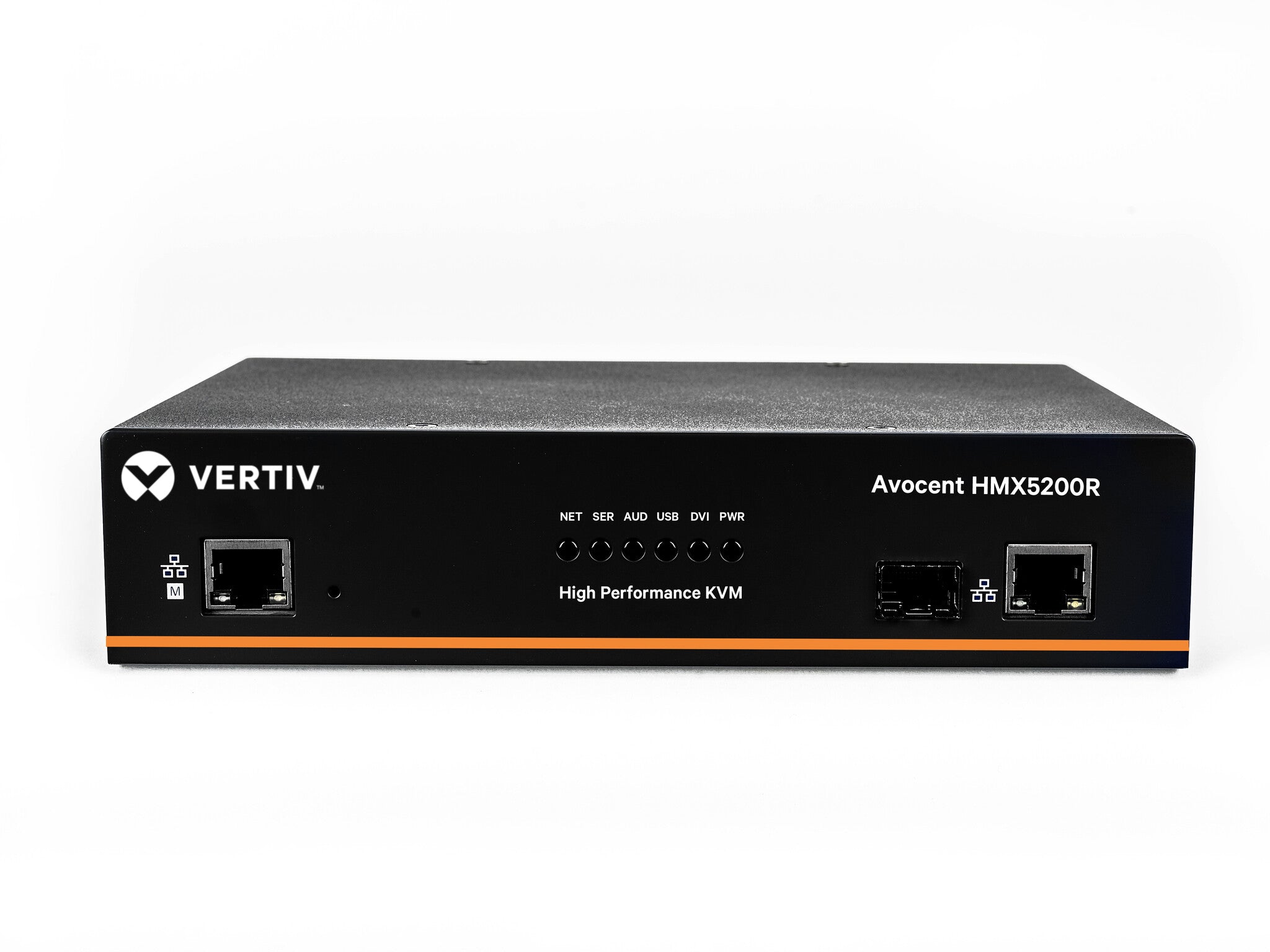

Vertiv Avocent HMX5200R KVM switch Rack mounting Blue
£1,368.99
inc. VATSpread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £456.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview

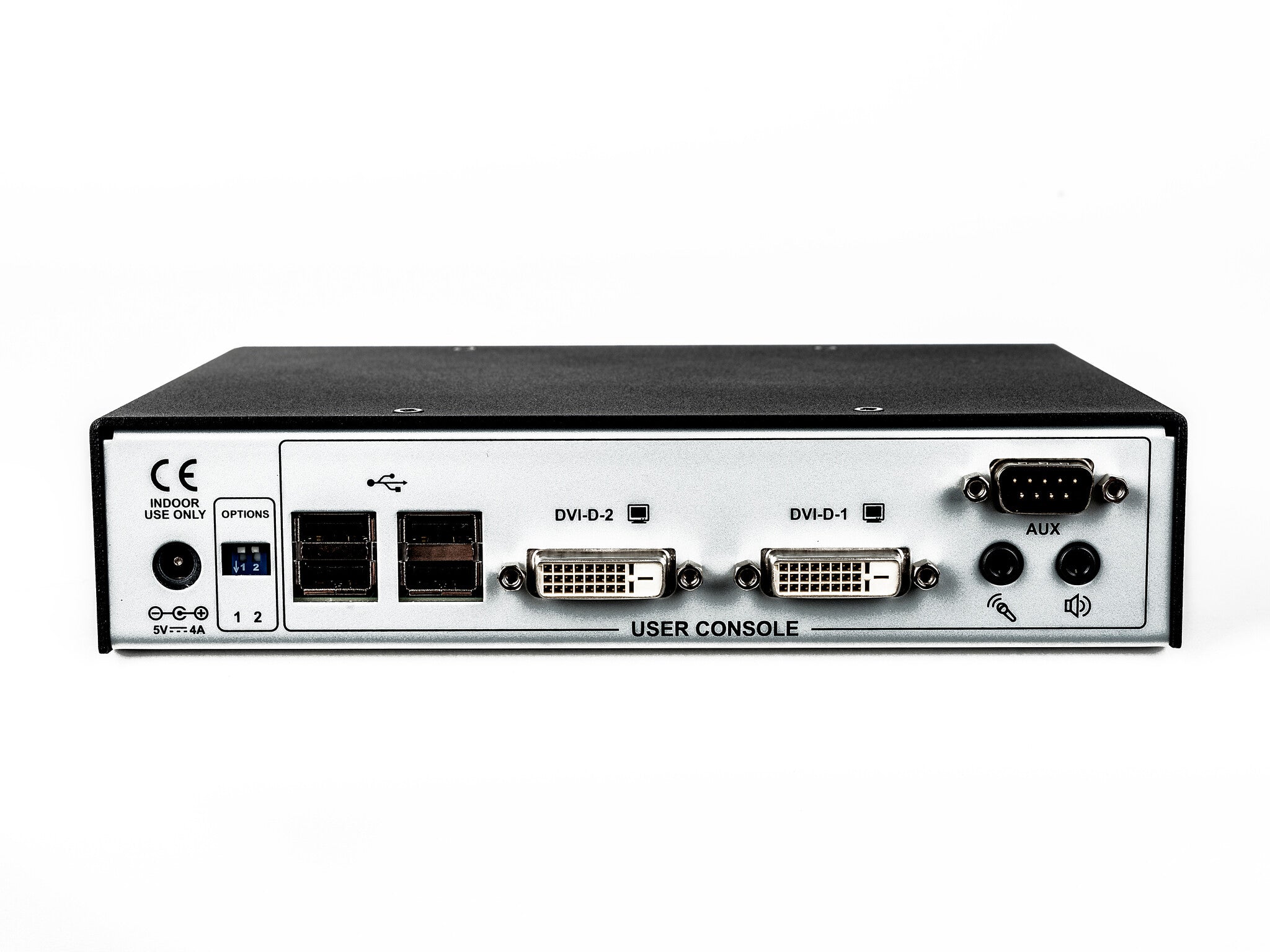

- Dual-Head DVI-D Interface - Supports resolutions to a maximum of 1920x1200
- Digital KVM extension with USB, audio and serial
- Extend over LAN or point-to-point over UTP
- Optional Fiber connectivity using SFP Modules
Avocent HMX 5200R High Performance KVM System\nThe Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix Solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.
Specifications
Ports & interfaces
| DC-in jack | Yes |
|---|---|
| Number of microphone inputs | 1 |
| Headphone outputs | 1 |
| Audio connections | Yes |
| Serial ports quantity | 1 |
| Serial port type | DE-9 (DB-9) |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| USB 2.0 Type-A hub ports quantity | 4 |
| DVI-D ports quantity | 2 |
| Video port type | DVI-D |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 1 |
Network
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Ethernet LAN | Yes |
Show all 46 specificationsShow fewer specifications
Performance
| Firmware upgradeable | Yes |
|---|---|
| Number of users | 16 user(s) |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| HD type | Full HD |
Design
| Certification | CE, FCC, UL |
|---|---|
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Blue |
| Rack mounting | Yes |
| Rack capacity | 1U |
Display
| On Screen Display (OSD) | Yes |
|---|---|
| Built-in display | No |
Power
| Compatible power plug types | EU |
|---|---|
| Input current | 0.8 A |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power source | AC |
General
| Product family | Avocent |
|---|
Operational conditions
| Storage relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Weight | 1.1 kg |
|---|---|
| Height | 44 mm |
| Depth | 150 mm |
| Width | 198 mm |

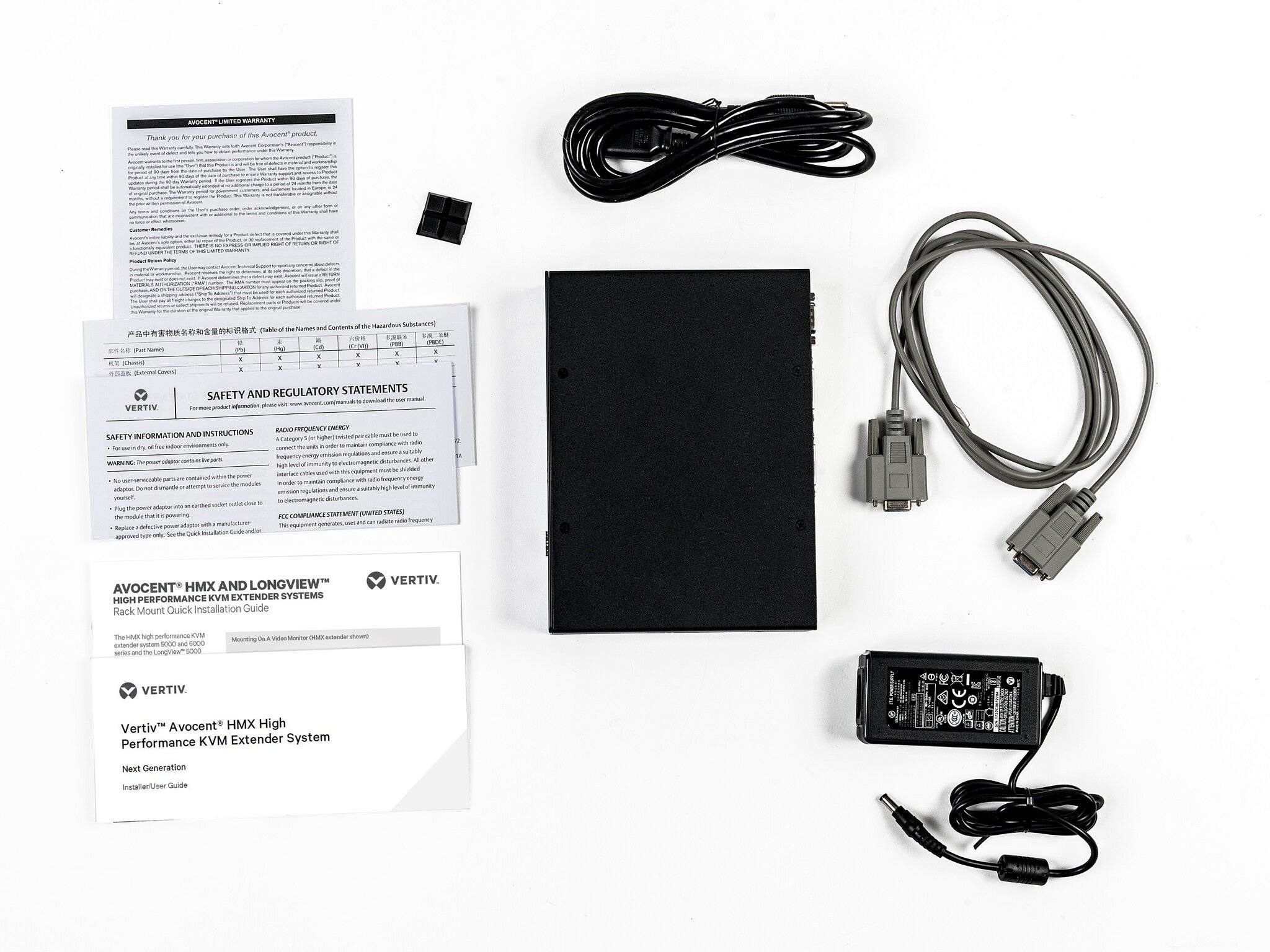

Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
