Vertiv Avocent HMX5100T KVM switch Rack mounting Blue
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £422.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Single-Head DVI-D Interface - Supports resolutions to a maximum of 1920x1200 / 1080p
- Digital KVM extension with USB, audio and serial
- Extend over LAN or point-to-point over UTP
- Optional Fiber connectivity using SFP Modules
The Avocent® HMX Digital High Performance KVM system is designed for organizations that need to provide workers the ability to seamlessly access and share one or more computing resource(s) which are physically separated from their work environment. This solution provides users an “at-the-desktop” experience from their work stations to any appliances, PCs or computing resources attached to the HMX IP network. This real-time, high-quality “at-the-PC” user experience is perfect for demanding environments such as pre and postproduction editing (broadcast), control rooms (broadcast, industrial, manufacturing, energy/utilities, IT, telecom and emergency response) and collaborative environments (training/simulation, medical diagnosis and imaging and financial trading desks).\n\nToday, the Avocent HMX Digital High Performance KVM system empowers the command centers of major hydroelectric plants; streamlines the editing of Hollywood blockbusters and is used in production environments by a vast majority of major broadcasting television and cable networks. In these and other cases, the Avocent HMX Digital High Performance KVM system enables organizations to improve employee productivity, reduce IT costs and, ultimately, produce better business results for their customers.\n\nThe Avocent HMX Digital High Performance KVM system is the ideal solution for these demanding environments. The solution can be easily deployed over a local area network (LAN). It supports a comprehensive range of peripherals including DVI-D video, digital audio, USB mass storage, keyboard and mouse and other USB devices.\n\nThe Avocent HMX Digital High Performance KVM system is ideal for the enterprise market bringing a robust set of administrative tools with the Avocent HMX Advanced Manager Solution. The Avocent HMX Advanced Manager Solution provides administration and connection-management control from a central location, enabling the desktop administrator to effectively and efficiently manage the computing resources without compromising the user experience.
Specifications

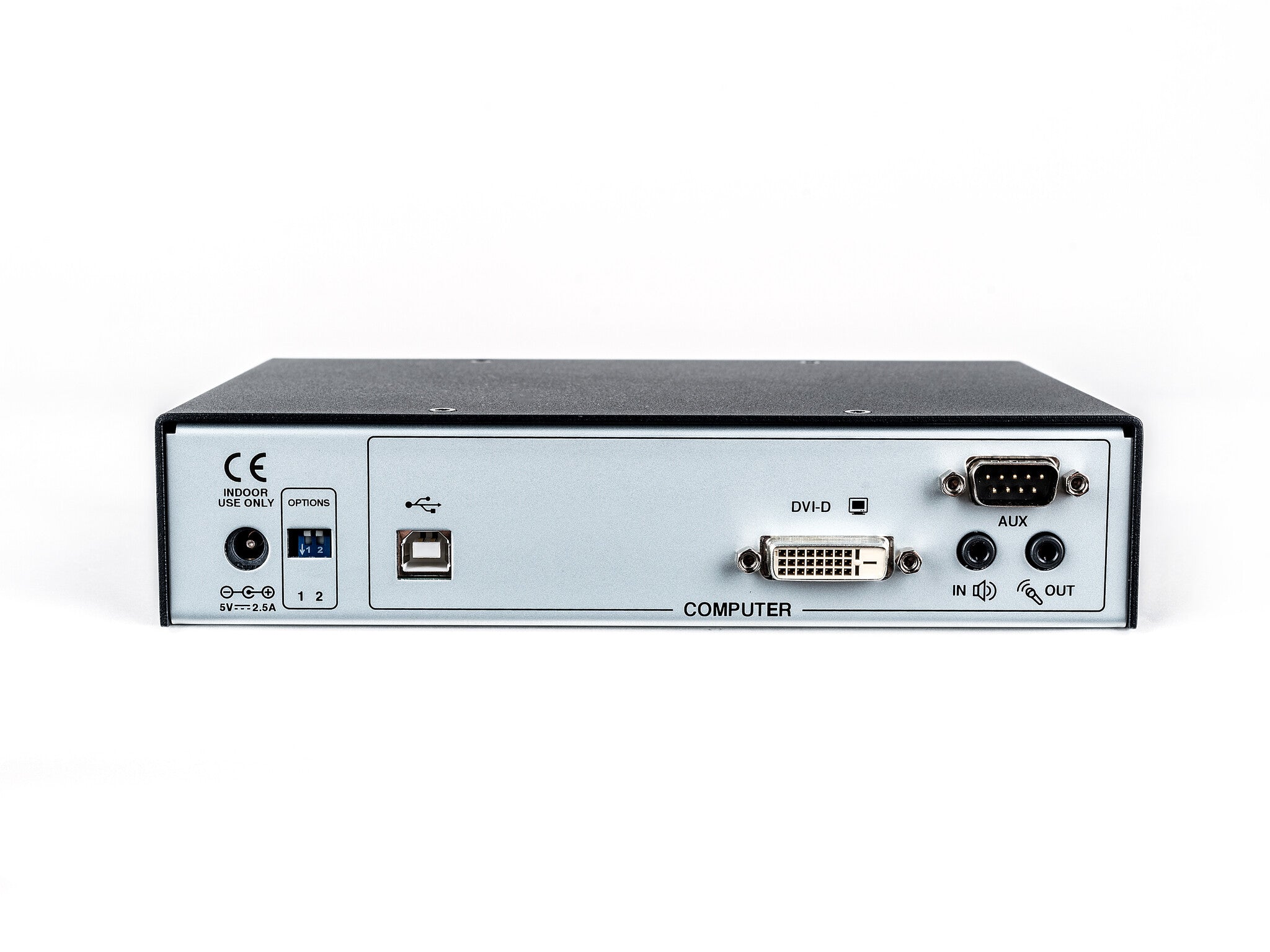

Ports & interfaces
| DC-in jack | Yes |
|---|---|
| Number of microphone inputs | 1 |
| Headphone outputs | 1 |
| Audio connections | Yes |
| Serial ports quantity | 1 |
| Serial port type | DE-9 (DB-9) |
| USB connector type | USB Type-B |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Video port type | DVI-D |
| Mouse port type | USB |
| Keyboard port type | USB |
Network
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Ethernet LAN | Yes |
Show all 49 specificationsShow fewer specifications
Performance
| Firmware upgradeable | Yes |
|---|---|
| Number of users | 16 user(s) |
| Plug and Play | Yes |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| HD type | Full HD |
Design
| Certification | CE, FCC, UL |
|---|---|
| Hot keys | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Blue |
| Rack mounting | Yes |
| Rack capacity | 1U |
Display
| Built-in display | No |
|---|
Power
| Power consumption (typical) | 20 W |
|---|---|
| External power adapter | Yes |
| Compatible power plug types | UK |
| Input current | 0.8 A |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power source | AC |
General
| Product family | Avocent |
|---|
Operational conditions
| Storage relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Weight | 1.1 kg |
|---|---|
| Height | 44 mm |
| Depth | 150 mm |
| Width | 198 mm |

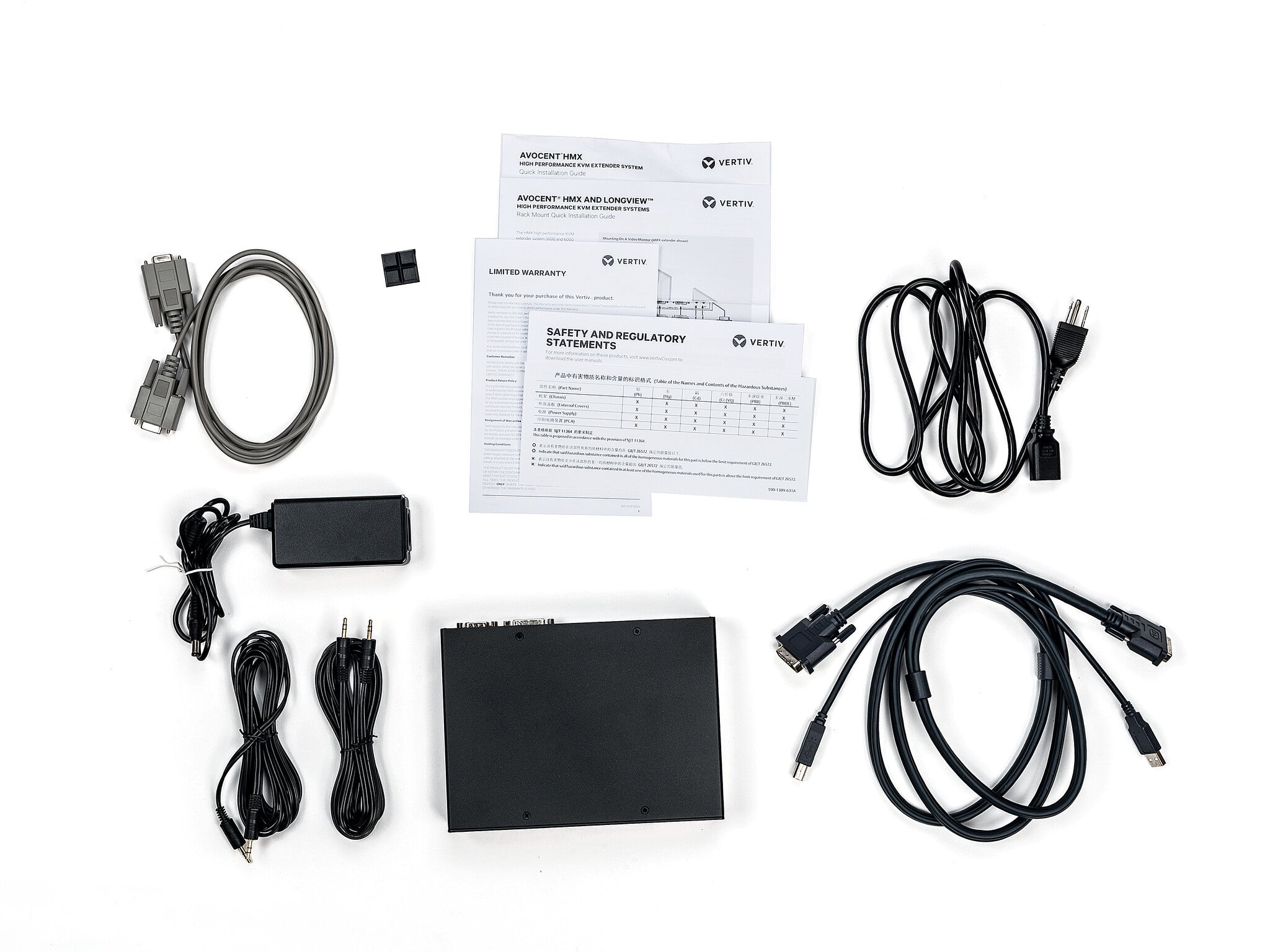

Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Cables included | AC, Audio (3.5mm), DVI, Serial, USB |
