Vertiv · MPN: HMX5100T-202
£1,268.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £422.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Maximum resolution1920 x 1200 pixels
  • Weight1.1 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • Single-Head DVI-D Interface - Supports resolutions to a maximum of 1920x1200 / 1080p
  • Digital KVM extension with USB, audio and serial
  • Extend over LAN or point-to-point over UTP
  • Optional Fiber connectivity using SFP Modules

The Avocent® HMX Digital High Performance KVM system is designed for organizations that need to provide workers the ability to seamlessly access and share one or more computing resource(s) which are physically separated from their work environment. This solution provides users an “at-the-desktop” experience from their work stations to any appliances, PCs or computing resources attached to the HMX IP network. This real-time, high-quality “at-the-PC” user experience is perfect for demanding environments such as pre and postproduction editing (broadcast), control rooms (broadcast, industrial, manufacturing, energy/utilities, IT, telecom and emergency response) and collaborative environments (training/simulation, medical diagnosis and imaging and financial trading desks).\n\nToday, the Avocent HMX Digital High Performance KVM system empowers the command centers of major hydroelectric plants; streamlines the editing of Hollywood blockbusters and is used in production environments by a vast majority of major broadcasting television and cable networks. In these and other cases, the Avocent HMX Digital High Performance KVM system enables organizations to improve employee productivity, reduce IT costs and, ultimately, produce better business results for their customers.\n\nThe Avocent HMX Digital High Performance KVM system is the ideal solution for these demanding environments. The solution can be easily deployed over a local area network (LAN). It supports a comprehensive range of peripherals including DVI-D video, digital audio, USB mass storage, keyboard and mouse and other USB devices.\n\nThe Avocent HMX Digital High Performance KVM system is ideal for the enterprise market bringing a robust set of administrative tools with the Avocent HMX Advanced Manager Solution. The Avocent HMX Advanced Manager Solution provides administration and connection-management control from a central location, enabling the desktop administrator to effectively and efficiently manage the computing resources without compromising the user experience.

Specifications

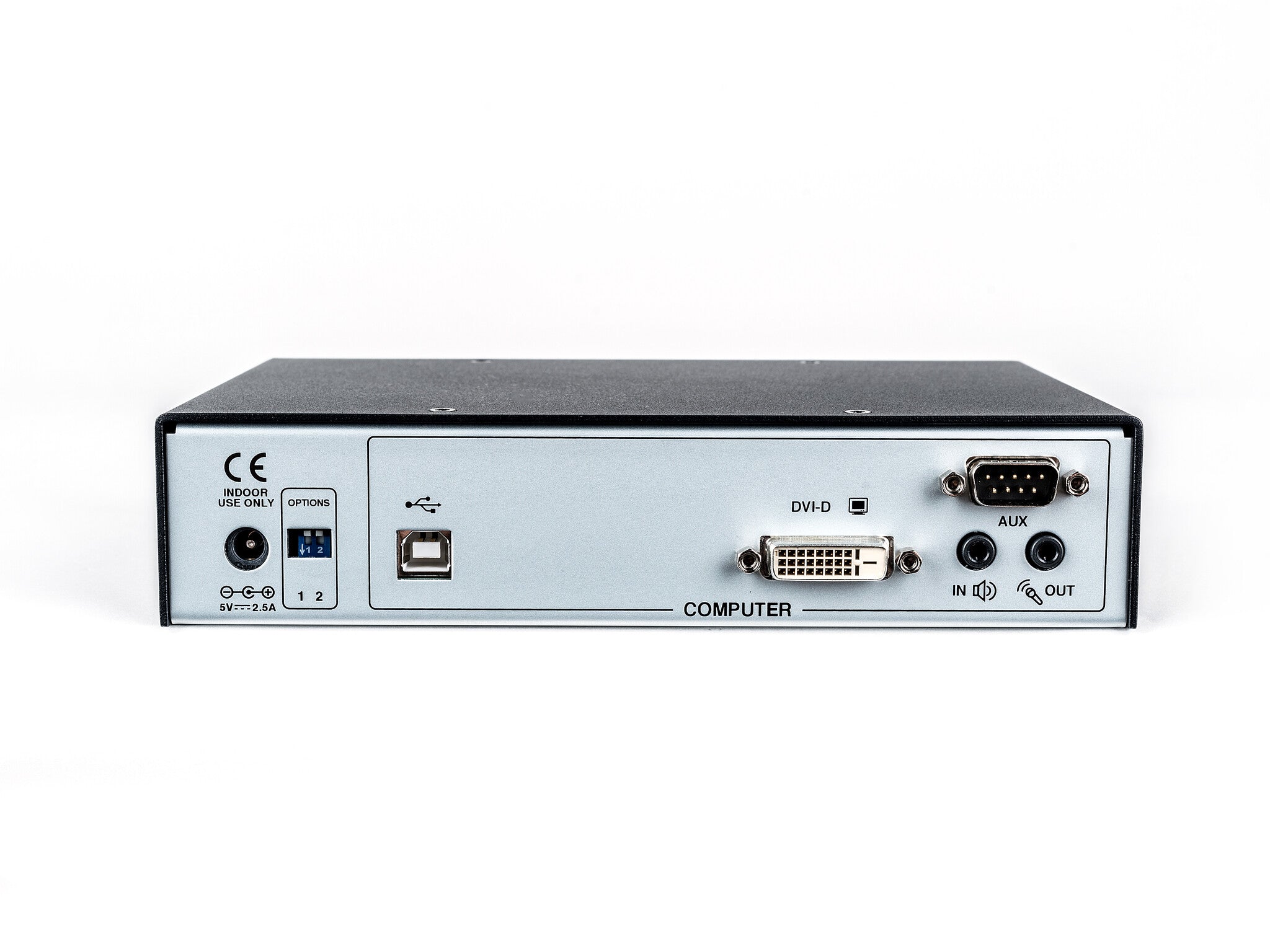

Ports & interfaces

Number of microphone inputs1
Headphone outputs1
Audio connectionsYes
Serial ports quantity1
Serial port typeDE-9 (DB-9)
USB version2.0
USB 2.0 ports quantity4
USB 2.0 Type-B ports quantity1
DVI-D ports quantity1
Display connectionYes
Video port typeDVI-D
Mouse port typeUSB
Keyboard port typeUSB
Number of computers controlled1

Network

Cabling technology10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports1
Ethernet LANYes
Show all 51 specificationsShow fewer specifications

Performance

Firmware upgradeableYes
Number of users16 user(s)
Plug and PlayYes
Video bandwidth60 Hz
Maximum resolution1920 x 1200 pixels
HD typeFull HD

Design

CertificationCE, FCC, UL
Hot keysYes
LED indicatorsYes
Housing materialMetal
Product colourBlue
Rack mountingYes
Rack capacity1U

Display

Built-in displayNo

Power

External power adapterYes
Compatible power plug typesEU
Input current0.8 A
AC input frequency50 - 60 Hz
Input voltage100 - 240 V
Power sourceAC

General

Product familyAvocent

Operational conditions

Storage relative humidity (H-H)10 - 90%
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight1.1 kg
Height44 mm
Depth150 mm
Width198 mm

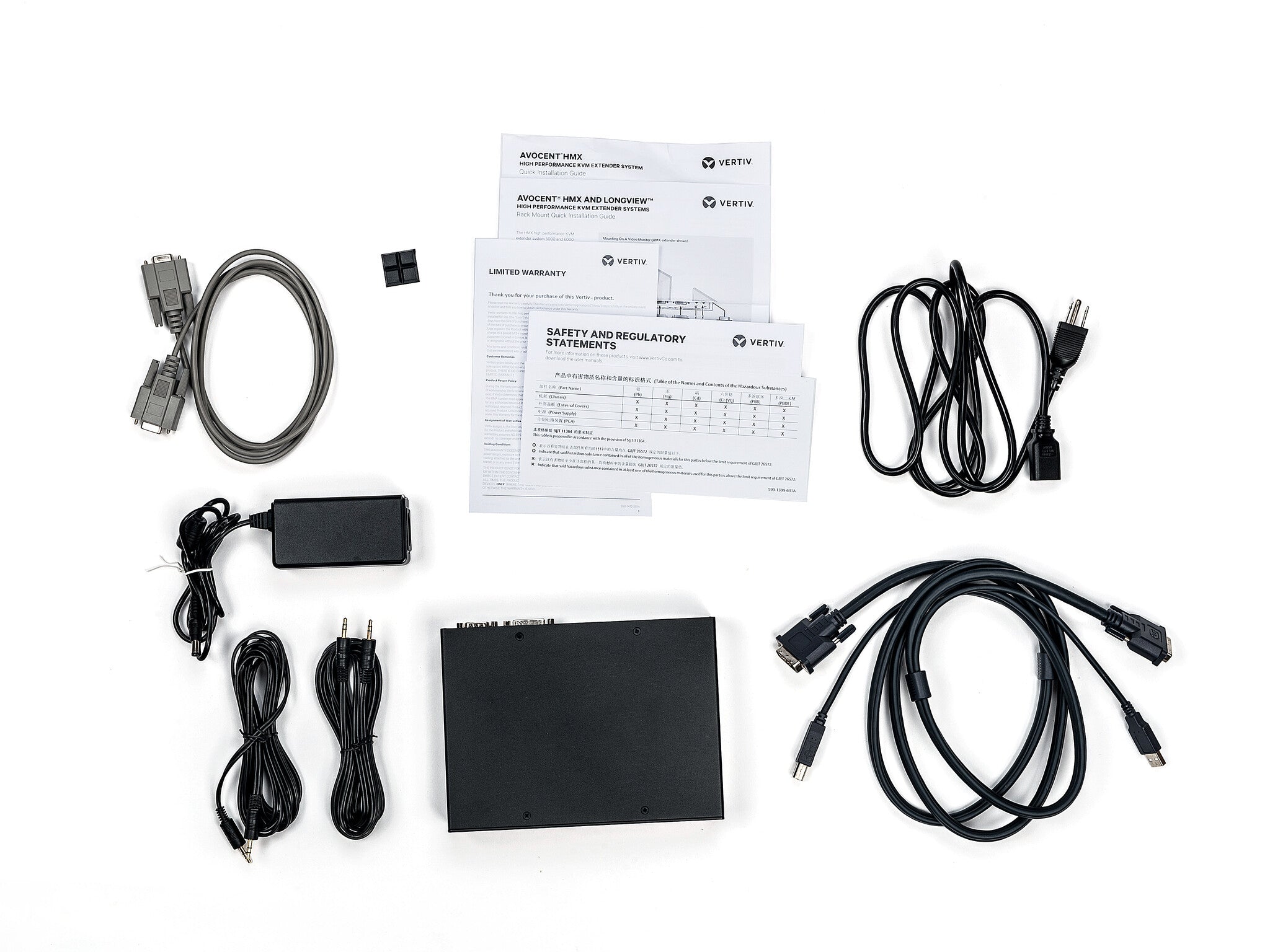

Packaging content

Quick installation guideYes
ManualYes
AC adapter includedYes
Cables includedDVI, Serial, USB

Other features

Audio supportYes

Manuals & downloads
