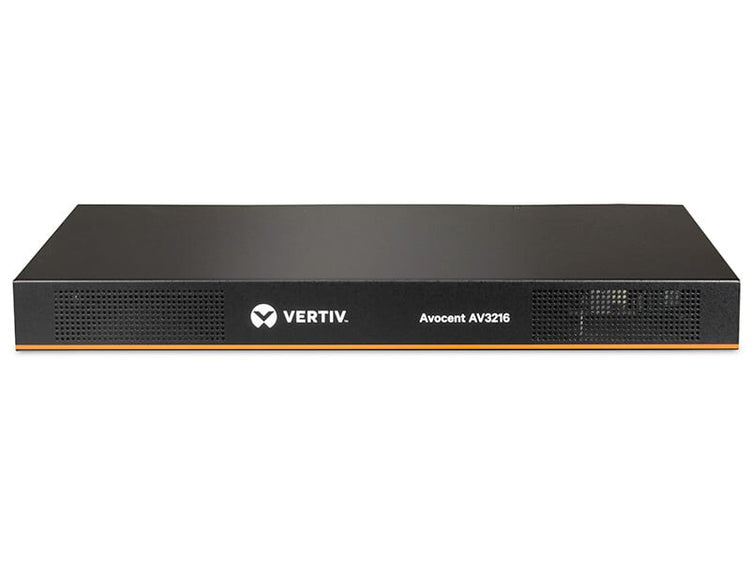

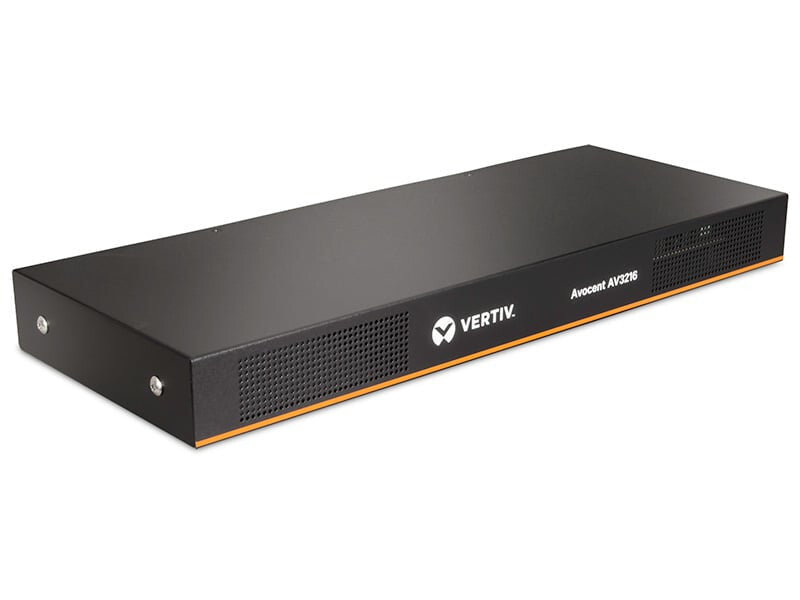

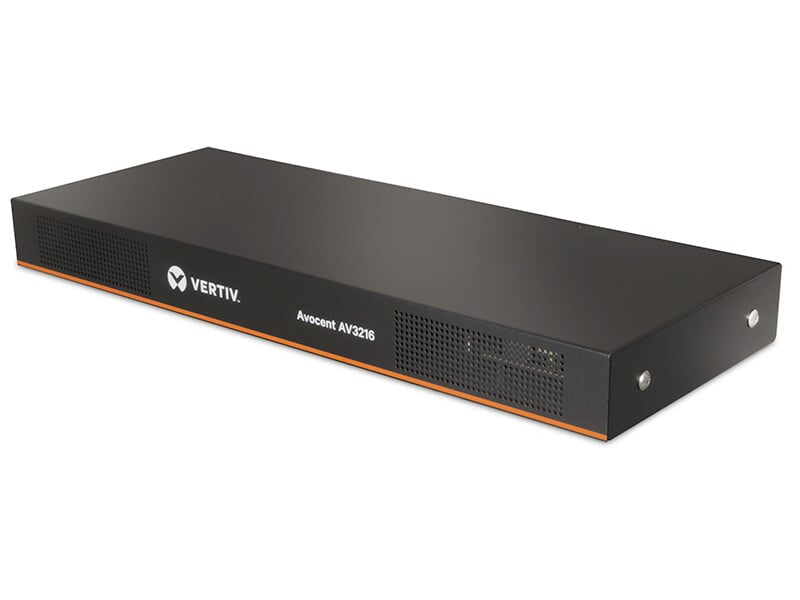

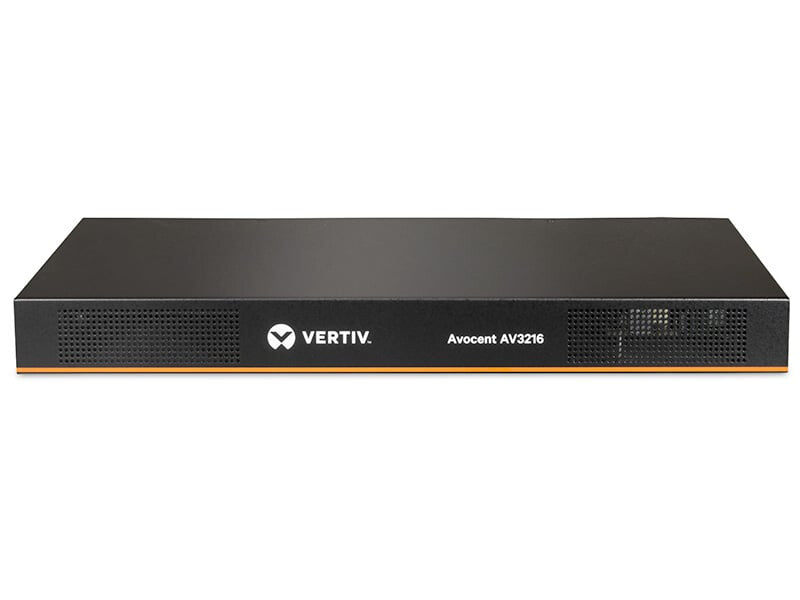

Vertiv Avocent AV 3216 KVM switch Rack mounting Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £333.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Rack mounting 1U Black
- Number of computers controlled: 16
- Keyboard port type: USB Mouse port type: USB
- 1680 x 1050 pixels
- AC 18 W
Built for small data centers and remote/branch office environments, the AV 3000 series KVM over IP switch provides consolidated, streamlined access to server resources. Centralize the management of the switches with DSView 4 Management software.
Specifications

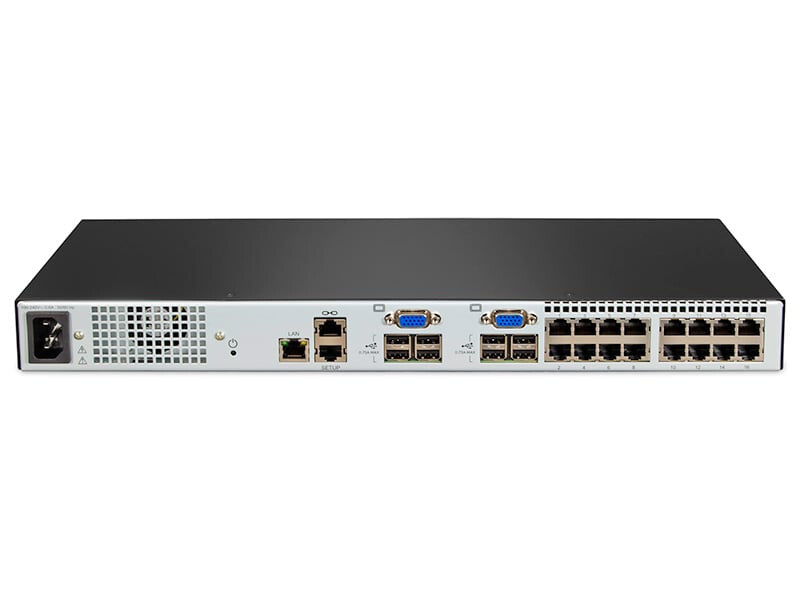

Ports & interfaces
| Console ports | RJ–45 |
|---|---|
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 16 |
Network
| Security algorithms | 3DES, AES, 128-bit SSL, DES |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Show all 29 specificationsShow fewer specifications
Performance
| Firmware upgradeable | Yes |
|---|---|
| Maximum resolution | 1680 x 1050 pixels |
Design
| Certification | UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
Display
| Built-in display | No |
|---|
Power
| Power consumption (typical) | 18 W |
|---|---|
| Input current | 5 A |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power source | AC |
Operational conditions
| Storage temperature (T-T) | -20 - 70 °C |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Weight | 2 kg |
|---|---|
| Height | 43.7 mm |
| Depth | 165 mm |
| Width | 432 mm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Rack mount kit | Yes |
| Cables included | AC |
