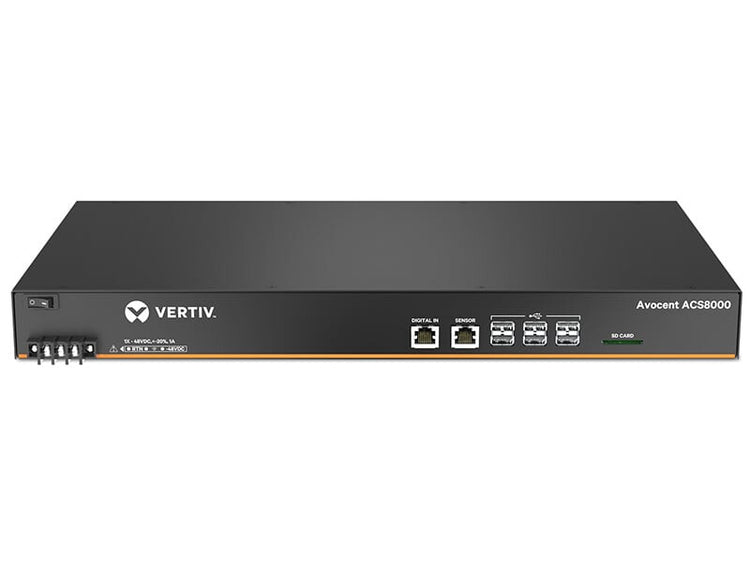

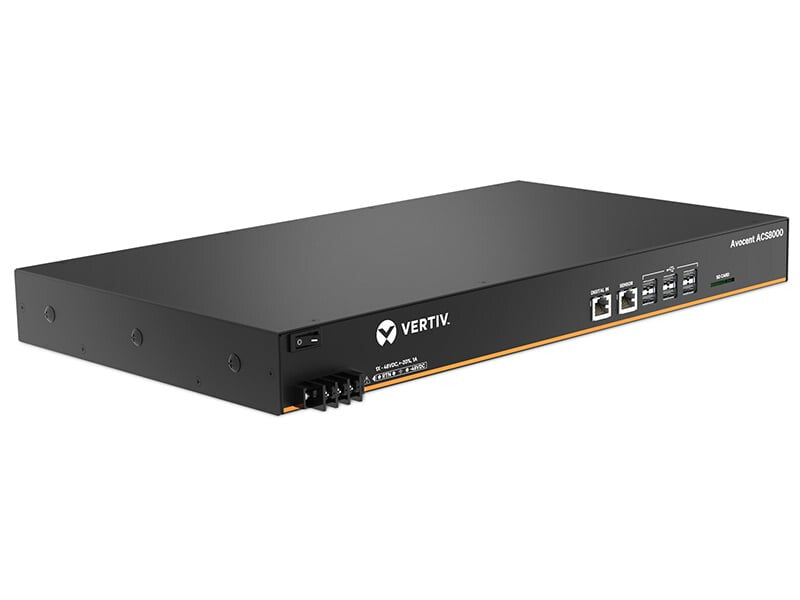

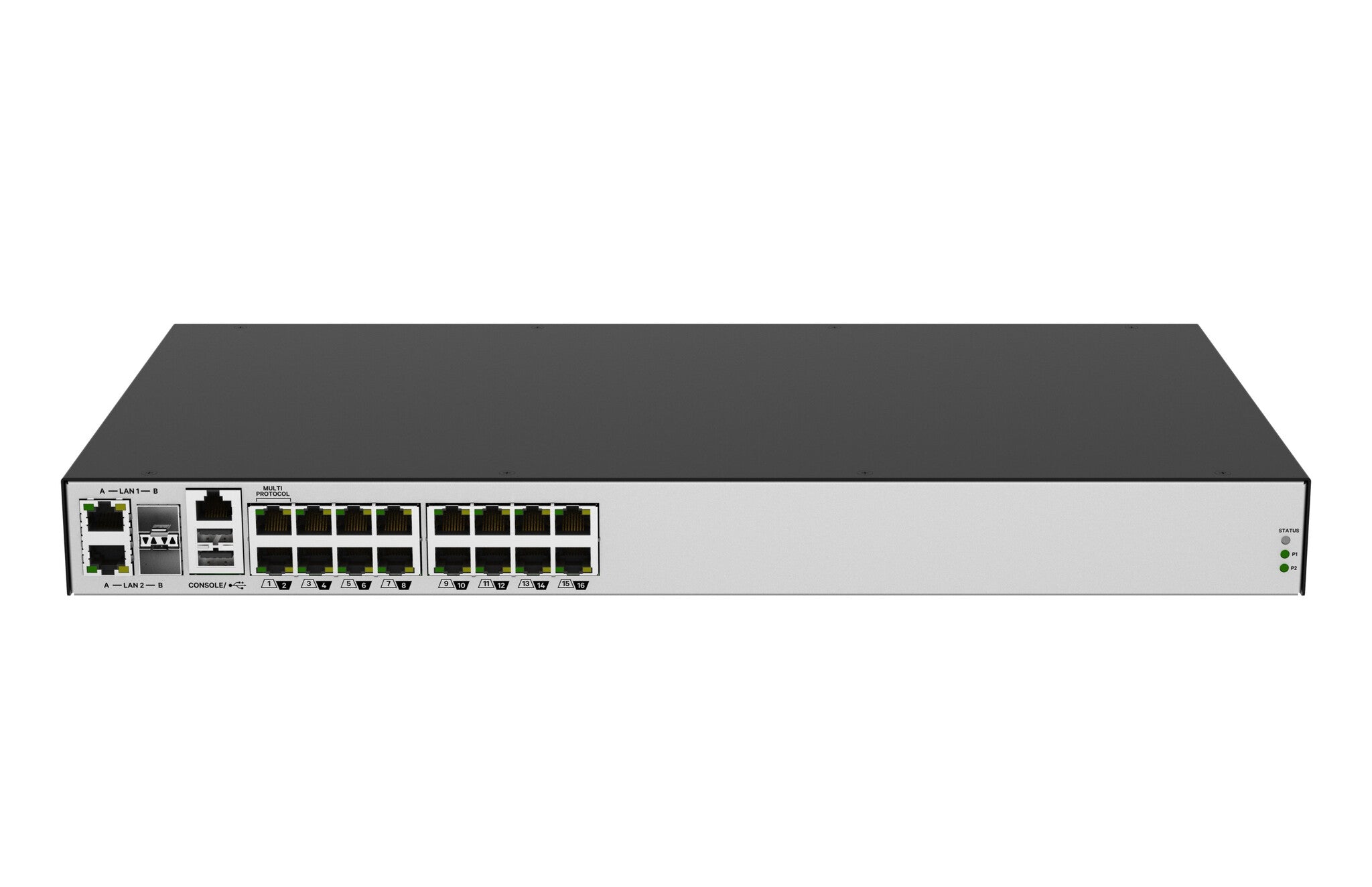

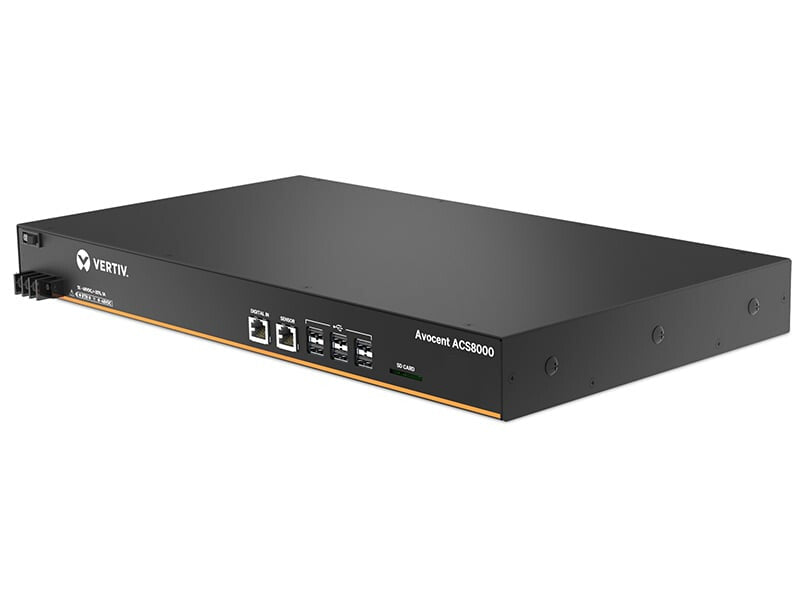

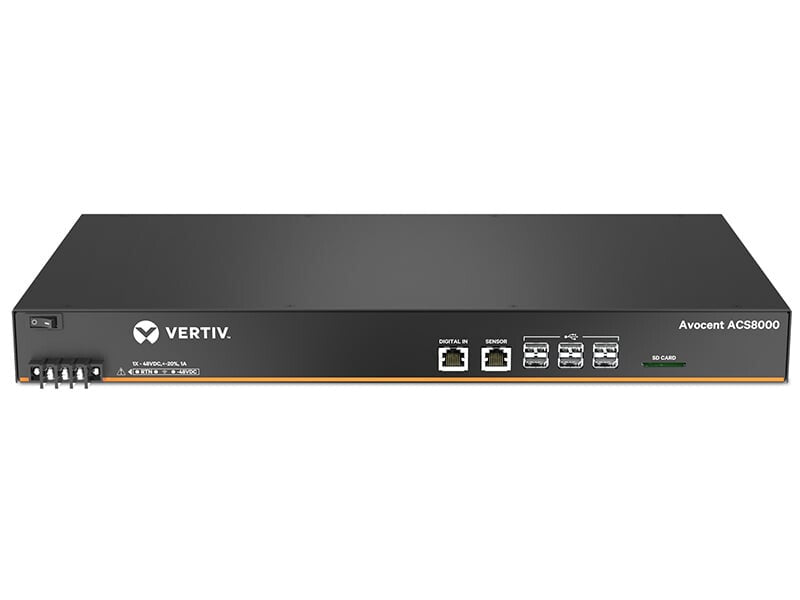

Vertiv Avocent ACS 8016SDC RS-232
£2,719.99
Couldn't load pickup availability
- Internal memory: 1000 MB Flash memory: 16000 MB
- Rack mounting
- Console port: RS-232
- Power source type: DC
- Power consumption (typical): 11 W Power consumption (max): 33 W
The Vertiv™ Avocent® ACS 8000 Serial Consoles deliver secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the system provides flexibility to access devices when wired networks are down (failover) or unavailable at the location.
| Technical details | |
|---|---|
| Event logging | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 16 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP module slots quantity | 2 |
| Console port | RS-232 |
| Software | |
|---|---|
| Operating system installed | Embedded LINUX |
| General | |
|---|---|
| Product family | Avocent |
| Certificates | |
|---|---|
| Certification | FCC Class AUL (USA)CE Class A (EU)cUL (Canada)ICES-003 (Canada)EN-60950 (EU)VCCI (Japan)CBRCM (Australia)Customs Union (CU)KCC (Korea) |
| Power | |
|---|---|
| Power consumption (typical) | 11 W |
| Power consumption (max) | 33 W |
| Memory | |
|---|---|
| Flash memory | 16000 MB |
| Internal memory | 1000 MB |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
