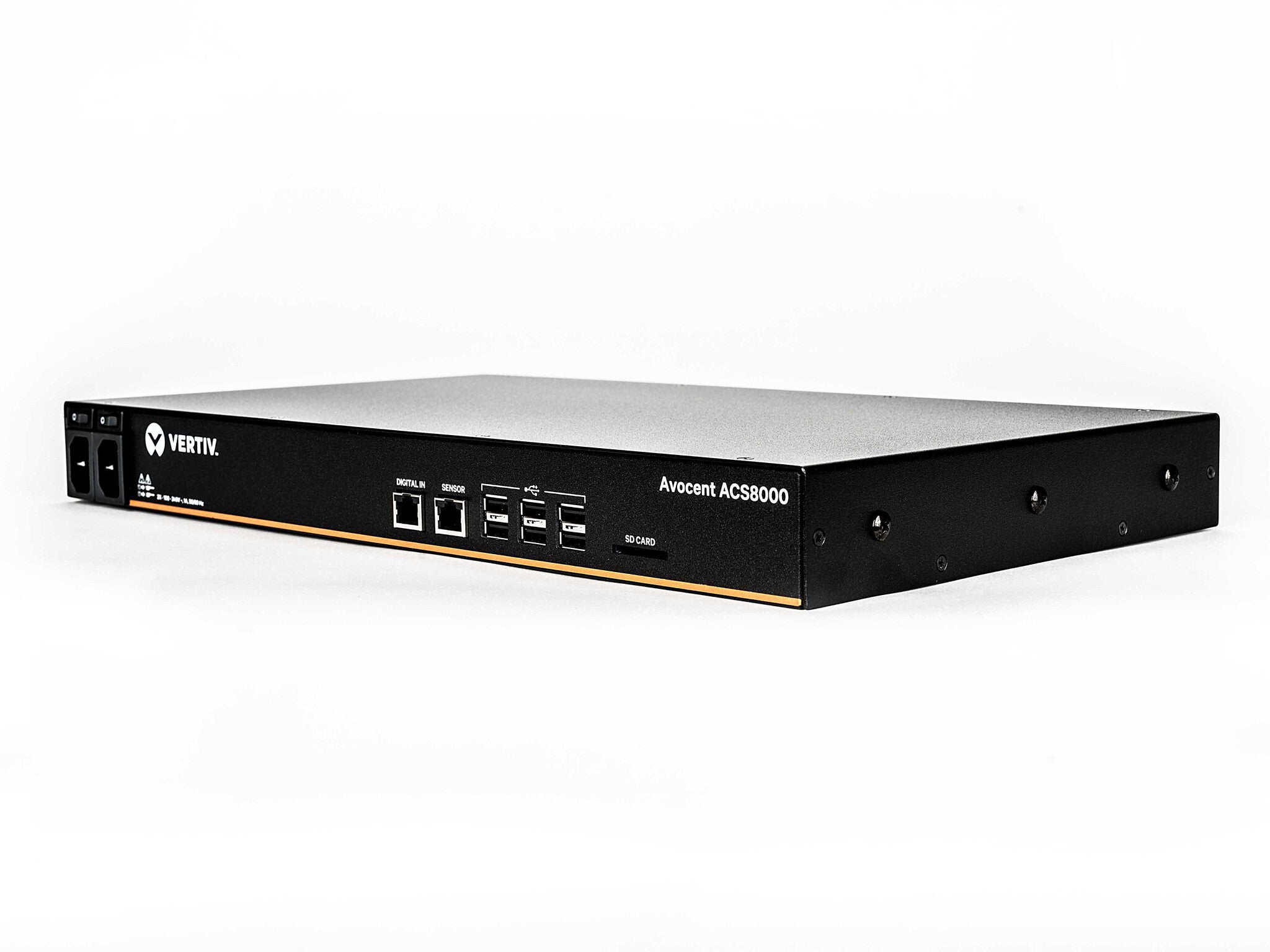

Vertiv Avocent 16-Port ACS8000 Console System with dual AC Power Supply - ACS8016DAC-404
Now £3,330.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Secure in-band and out-of-band network remote management
  • Fast, automated configuration with Zero Touch Provisioning
  • Access and troubleshoot remote locations using automatic network failover
  • No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
  • Compliance with data center access and security policies
  • Console event logging and notification
  • Integrated support for 1Gb SFP fiber modules
  • USB ports to support new IT equipment and external devices

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6)

Specifications

Technical details

Event loggingYes
Rack mountingYes
Internal modemNo
Zero Touch Provisioning (ZTP)Yes
Web-based managementYes
Temperature sensorYes
Product colourBlack

Management features

Management protocolsCLI, HTTP/ HTTPS, SNMP
Show all 40 specificationsShow fewer specifications

Security

Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
Authentication methodLOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
IP address filteringYes
One-time password (OTP)Yes

Ports & interfaces

AC outlet typesC13 coupler
Serial ports quantity16
USB 2.0 ports quantity8
Ethernet LAN (RJ-45) ports2
SFP module slots quantity2
Console portRJ-45

General

Product familyAvocent

Network

Cable types supportedCat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
Copper ethernet cabling technology10BASE-T, 1000BASE-T, 1000BASE-TX

Memory

Flash memory16000 MB
RAM capacity1024 MB
RAM typeDDR3L
Internal memory1024 MB
eMMC capacity16 GB

Other features

SafetyUL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Processor

Processor frequency667 MHz
Processor cores2
Processor architectureARM Cortex-A9
Processor familyARM Cortex-A9

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

Certificates

CertificationFCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Power

Number of power supply units2
Power consumption (typical)20 W
Power consumption (max)35 W
AC input voltage100 - 240 V
