Veracity VHW-HWPS-CBB PoE adapter Fast Ethernet
£198.99
Couldn't load pickup availability
- Compact unit for inside cameras housings
- Flexible leads for easy connection in small spaces
- Reliably powers POE Plus cameras up to 25watts
- SAFEVIEW instantly checks connection + power status
- Compatible with all HIGHWIRE Powerstar Base units
- Simple fast, cost-effective installation
- Full 100Base-TX Ethernet performance

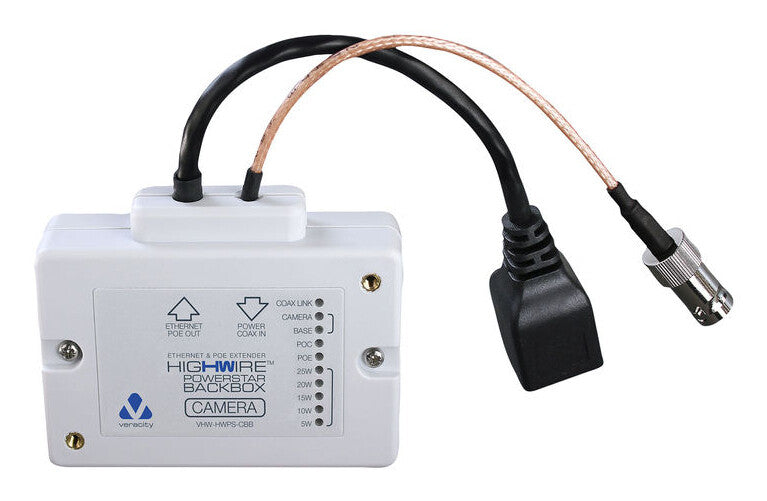

Inside The Housing
The Backbox version of HIGHWIRE Powerstar is designed to fit inside a camera housing or backbox. It is powered by POE over coax and includes leads and connectors to link to the legacy coax and the IP camera itself. Like all Powerstar units, it includes SAFEVIEW status and power level indicators.
HIGHWIRE Powerstar (Base) connects to HIGHWIRE Powerstar Backbox over legacy coax cabling to deliver full bandwidth Ethernet and up to 25W POE for maximum reliability with minimal recabling. The Base unit may be powered by POE or directly by a 57V DC PSU for maximum POE delivery.
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 100 Mbit/s |
| Features | |
|---|---|
| Product colour | Black, White |
| LED indicators | Link, Activity, PoE, Power |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
|---|---|
| Output power | 25 W |
| Power consumption (typical) | 1.5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 62 mm |
| Depth | 84 mm |
| Height | 23 mm |
| Weight | 103 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| Packaging data | |
|---|---|
| Package width | 147 mm |
| Package depth | 113 mm |
| Package height | 32 mm |
| Package weight | 143 g |
| Package type | Box |
