Veracity · MPN: VLS-1P-B
£275.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £91.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Network transmitter 1000 m 200 Mbit/s
  • 10/100Base-T(X)
  • Power over Ethernet (PoE)
  • Blue, Metallic

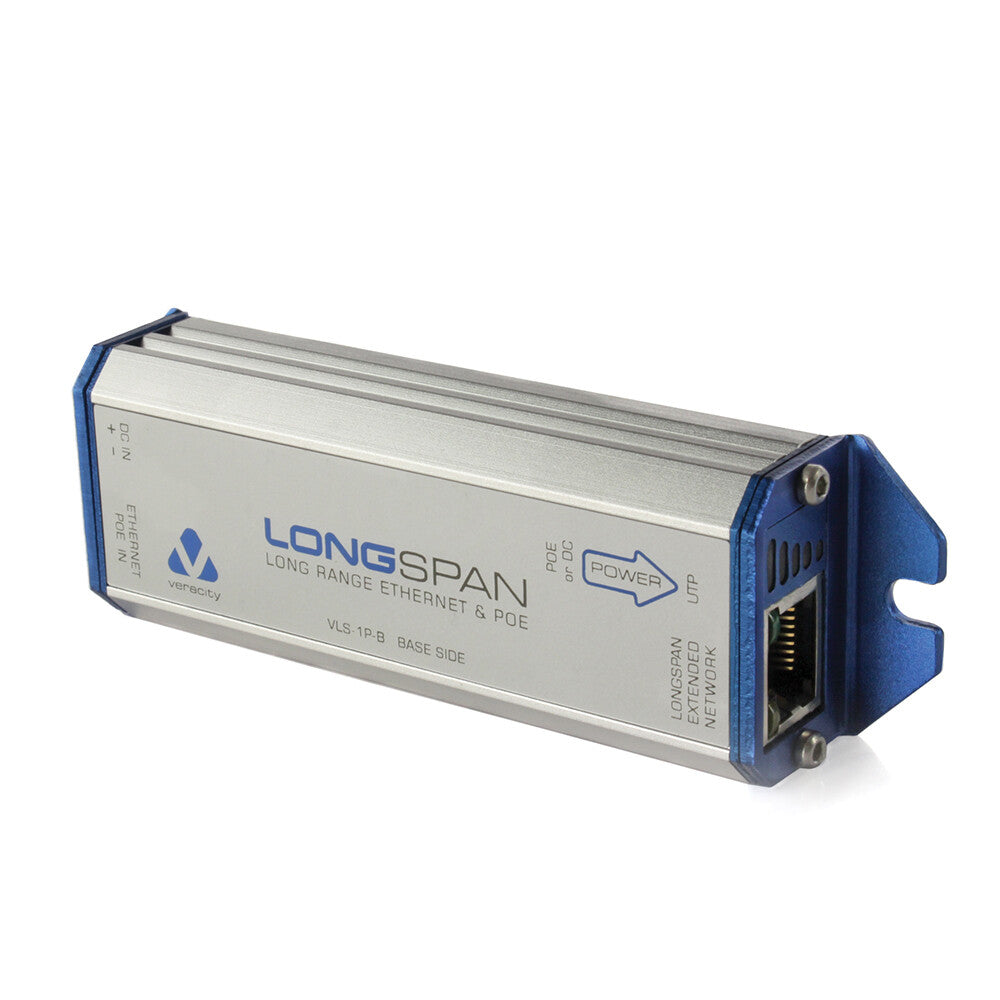

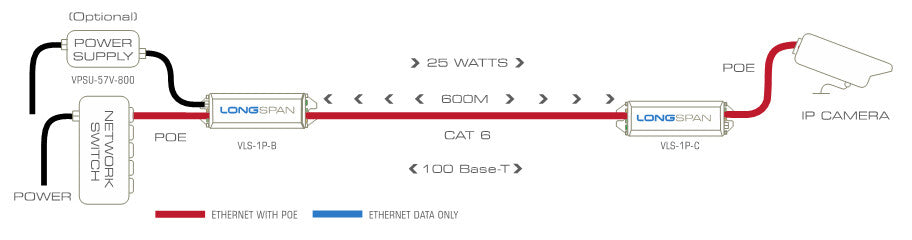

LONGSPAN Base Unit: long-range POE (powered via POE-in or VPSU-57V-X). Working together, LONGSPAN’s Base and Camera units deliver unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices. IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-T Ethernet at up to 840 metres Cat 6 (or 690 metres Cat 5e).

- As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
- For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.

Specifications

Performance

Auto-negotiationYes
Duplex systemFull
Cable types supportedCat5e, Cat6, Fiber
Data transfer rate200 Mbit/s
Maximum transfer distance1000 m
TypeNetwork transmitter

Network

Networking standardsIEEE 802.3af, IEEE 802.3at
Cabling technology10/100Base-T(X)
Show all 24 specificationsShow fewer specifications

Ports & interfaces

Power over Ethernet (PoE) ports quantity2
Ethernet LAN (RJ-45) ports2

Design

CertificationFCC, CE, RoHS
LED indicatorsYes
Product colourBlue, Metallic

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)1 W

Operational conditions

Storage relative humidity (H-H)0 - 85%
Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Weight80 g
Height21 mm
Depth93 mm
Width35 mm

Packaging content

ManualYes
Quick start guideYes

Certificates

Compliance certificatesRoHS
