Ubiquiti ULTRA gateway/controller 1000 Mbit/s
iFrame
£105.99
Couldn't load pickup availability
- Runs UniFi Network for full-stack network management
- Manages 30+ UniFi Network devices and 300+ clients
- 1 Gbps routing with IDS/IPS
- Multi-WAN load balancing

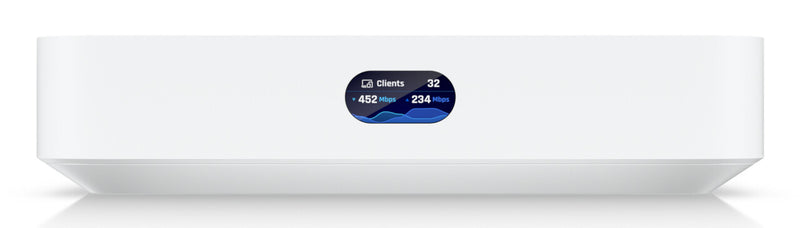

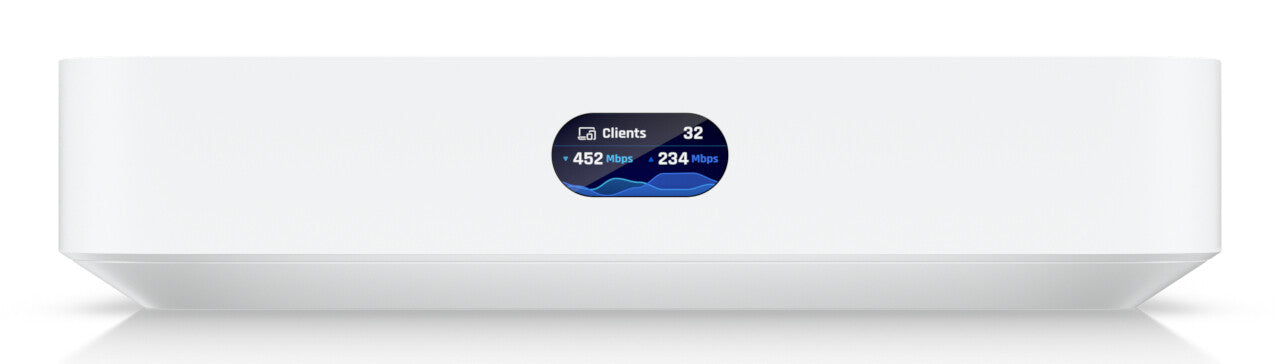

- 0.96" LCM status display
- USB-C powered (adapter included)
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
| Design | |
|---|---|
| LED indicators | LAN |
| Enclosure material | Polycarbonate (PC) |
| Product colour | White |
| Performance | |
|---|---|
| Flash memory | 16384 MB |
| Internal memory | 3072 MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor frequency | 1500 MHz |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A53 |
| Built-in processor | Yes |
| Control display unit | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Network | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000 Mbit/s |
| Security | |
|---|---|
| Firewall security | Yes |
| VLAN support | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |

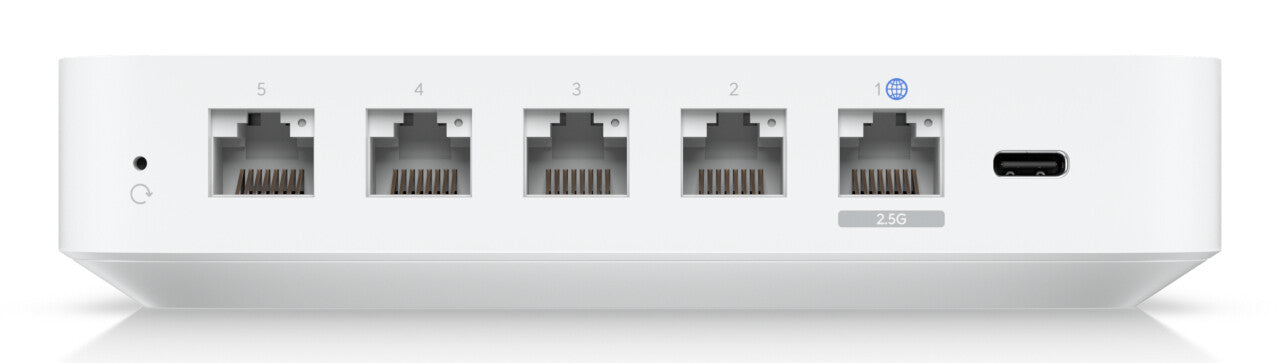

| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Power | |
|---|---|
| Output current | 3 A |
| Output voltage | 5 V |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 6.2 W |
| Weight & dimensions | |
|---|---|
| Weight | 520 g |
| Width | 141.8 mm |
| Depth | 127.6 mm |
| Height | 30 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
