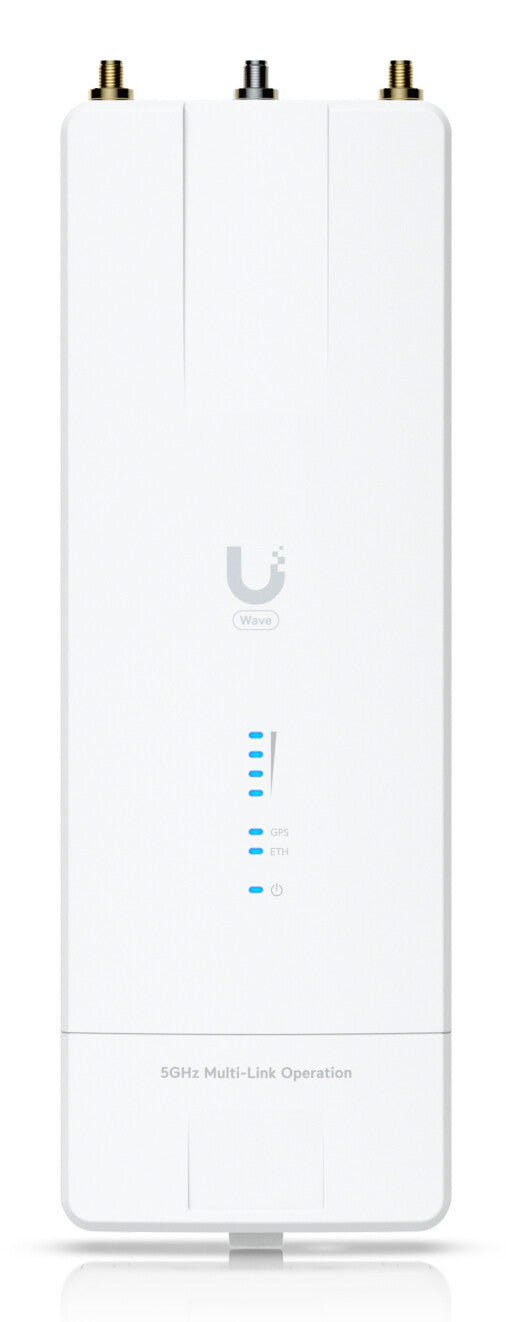

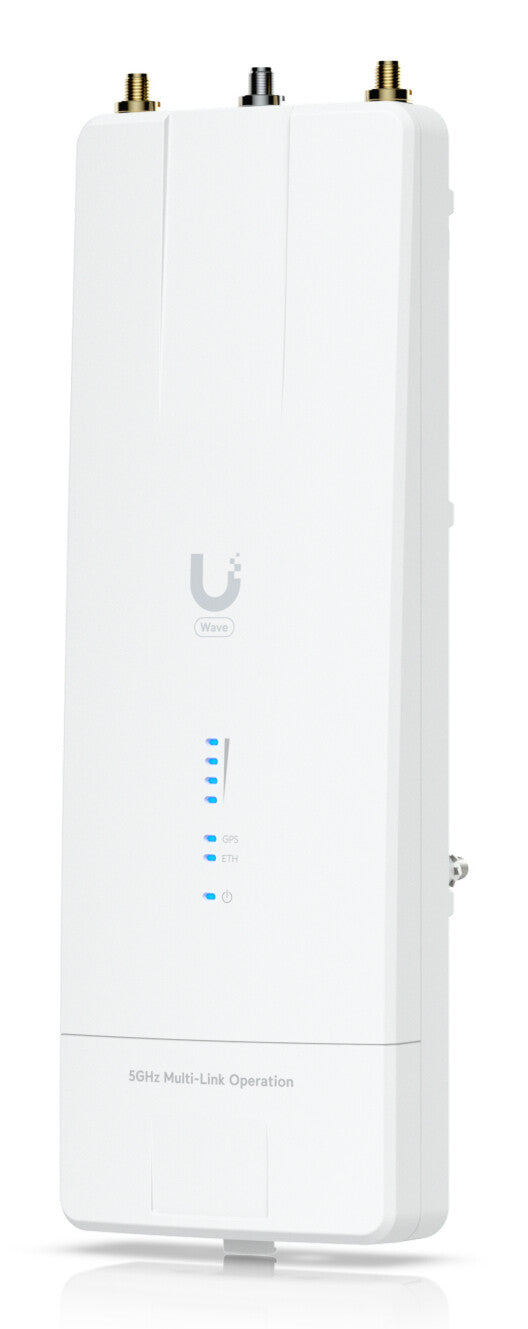

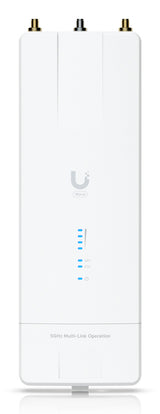

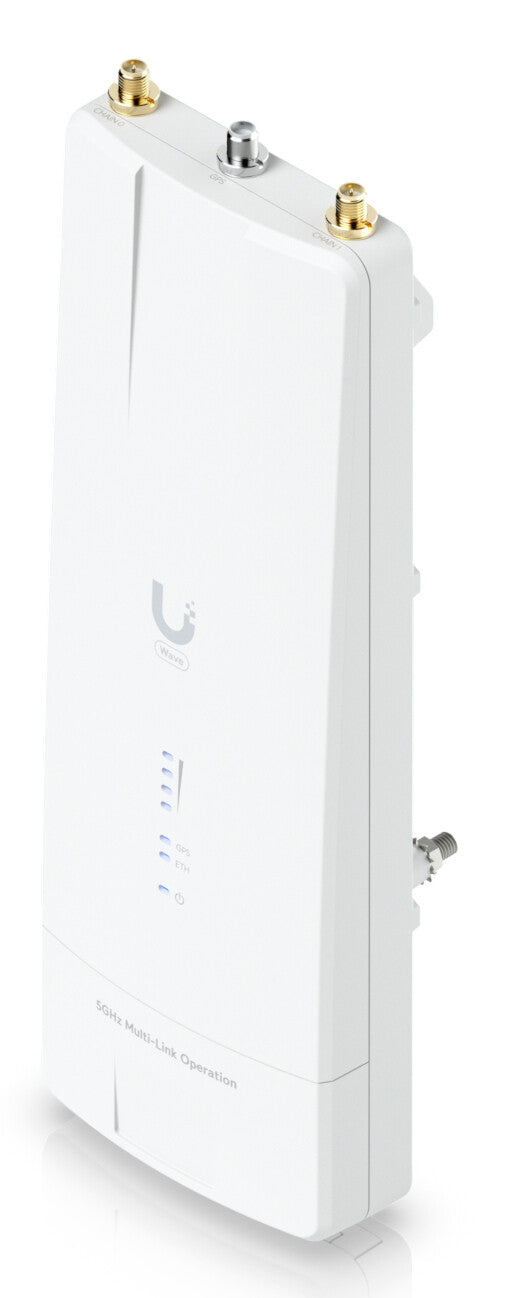

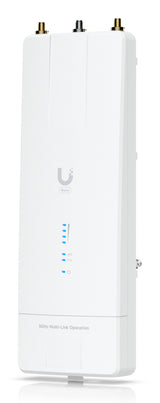

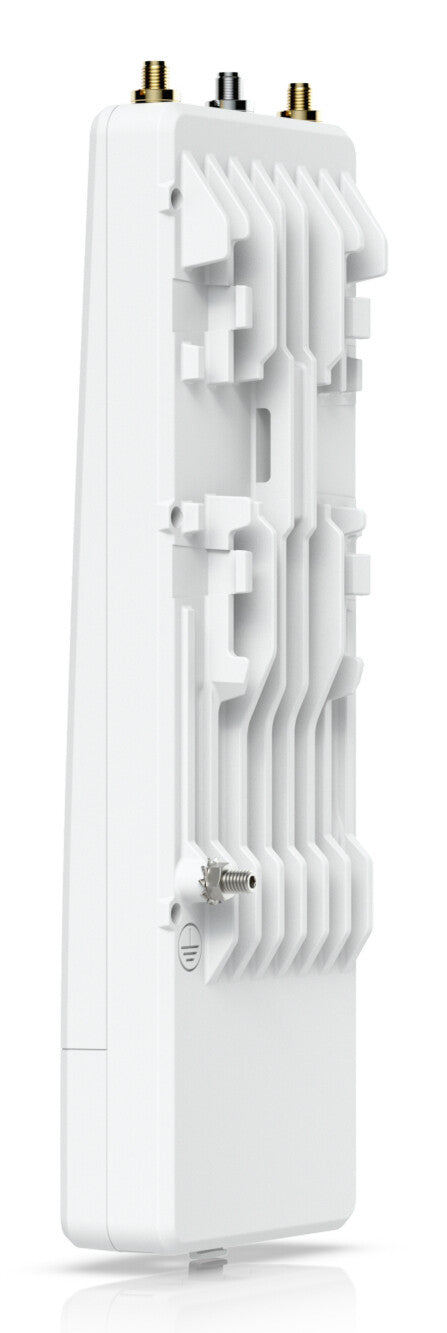

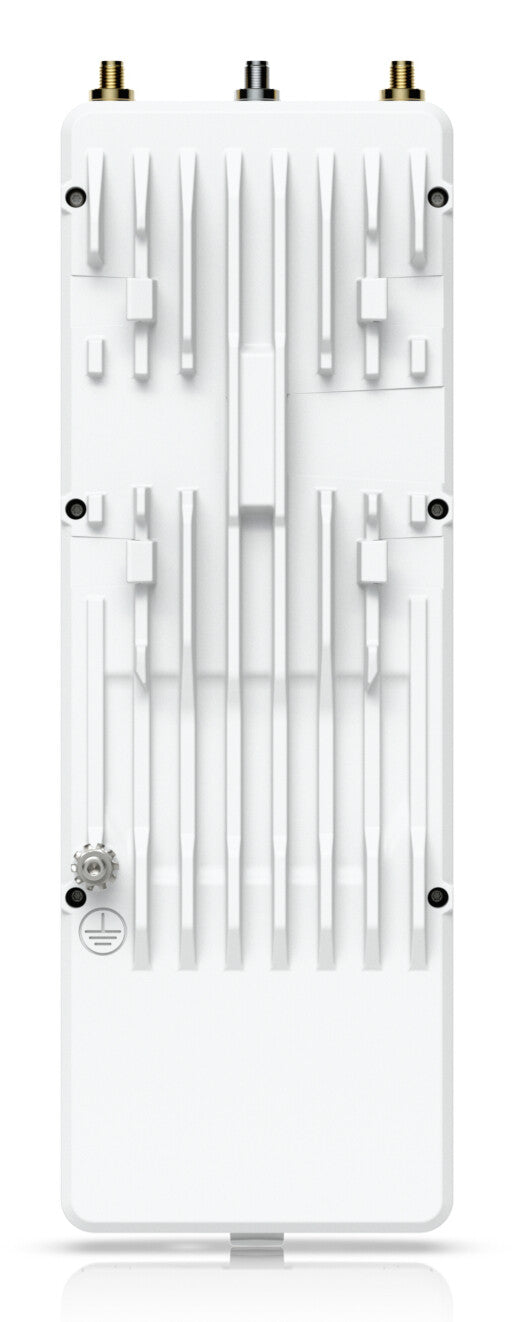

Ubiquiti UISP Wave MLO5 Network bridge 5000 Mbit/s White
£364.99
Couldn't load pickup availability
- 5 GHz, 100+ km link range
- 5+ Gbps throughput
- Dedicated spectral analysis radio
- Channel puncturing

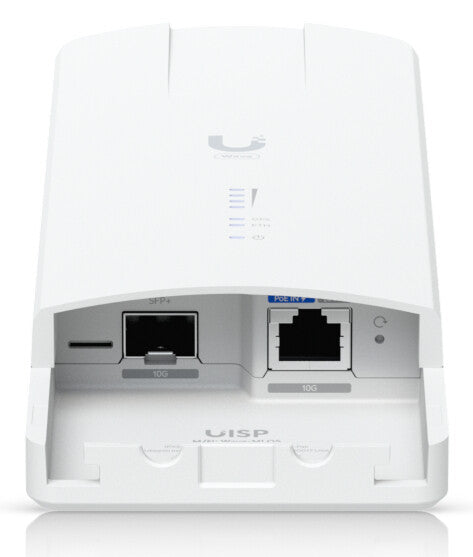

- (1) 10 GbE and (1) SFP+ port
- Integrated Bluetooth
- Compatible with airMAX antenna, airFiber X antenna, UISP Dish and UISP Horn
High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.
| Data transmission | |
|---|---|
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum transfer distance | 100000 m |
| Antenna | |
|---|---|
| Antenna type | 2x2 |

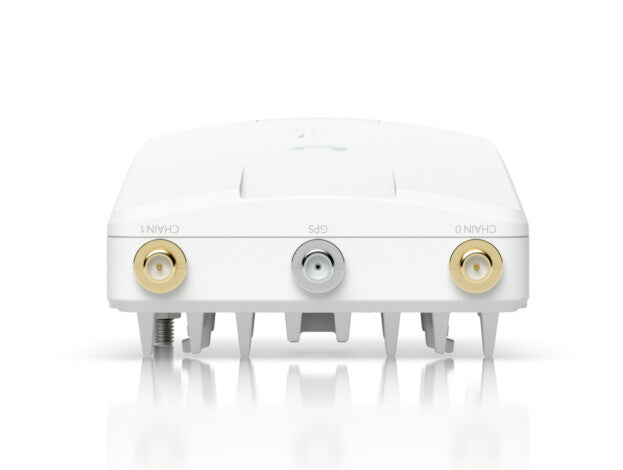

| Antenna connector type | RP-SMA |
| Wireless LAN features | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Frequency band | 5.18 - 5.745 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Security algorithms | AES, WPA3-PSK |
| Features | |
|---|---|
| Product type | Network bridge |
| Material | Aluminium, Polycarbonate (PC) |

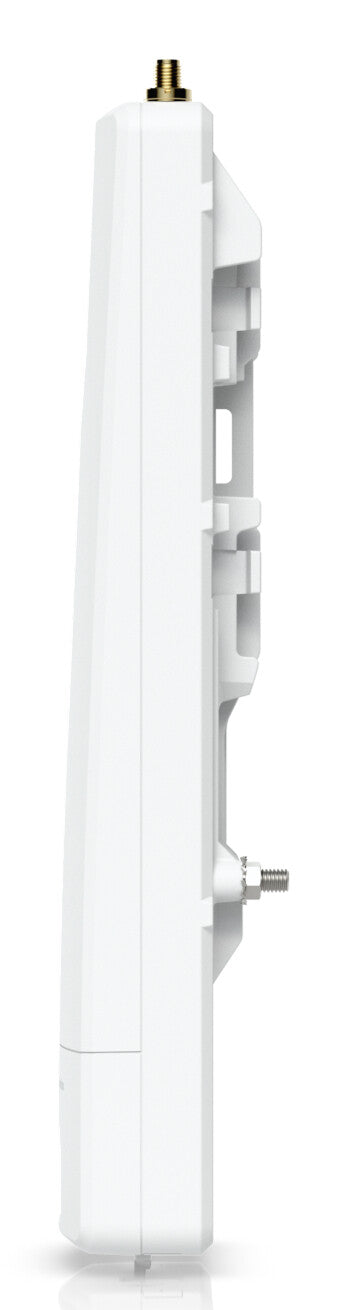

| Mounting type | Pole |
| Product colour | White |
| LED indicators | GPS, LAN, Power, Signal strength, Status |
| Power LED | Yes |
| Network Time Protocol (NTP) client | Yes |
| International Protection (IP) code | IPX6 |
| Reset button | Yes |
| Processor manufacturer | ARM |
| Processor frequency | 1500 MHz |
| Processor family | ARM Cortex |
| Processor model | Cortex-A53 |
| RAM type | DDR4 |
| Internal memory | 1000 MB |
| Power | |
|---|---|
| Power source type | PoE |
| DC input voltage | 44 - 54 V |
| Power consumption (max) | 20 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| General | |
|---|---|
| Product family | UISP |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 47.6 mm |
| Height | 249.3 mm |
| Weight | 575 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
