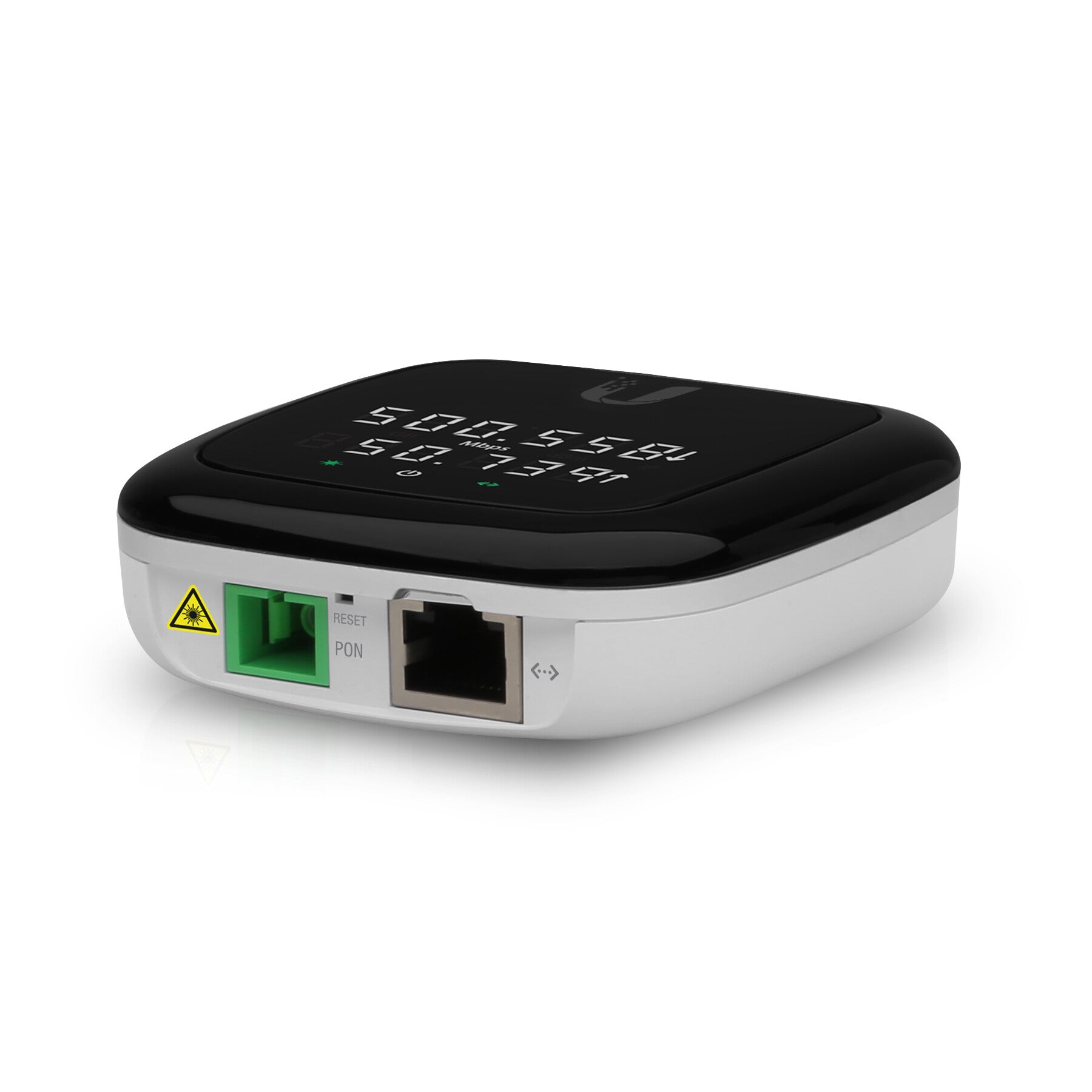

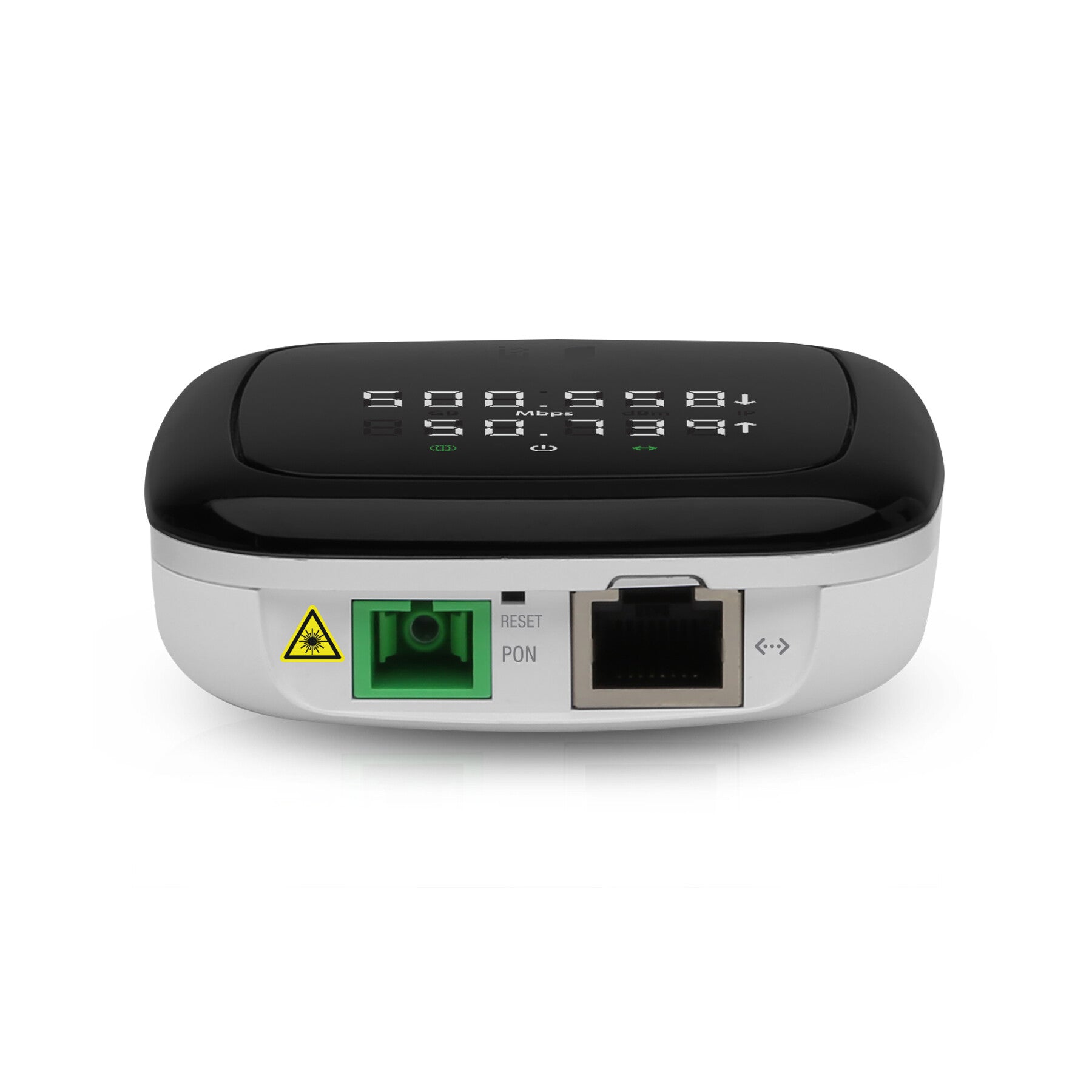

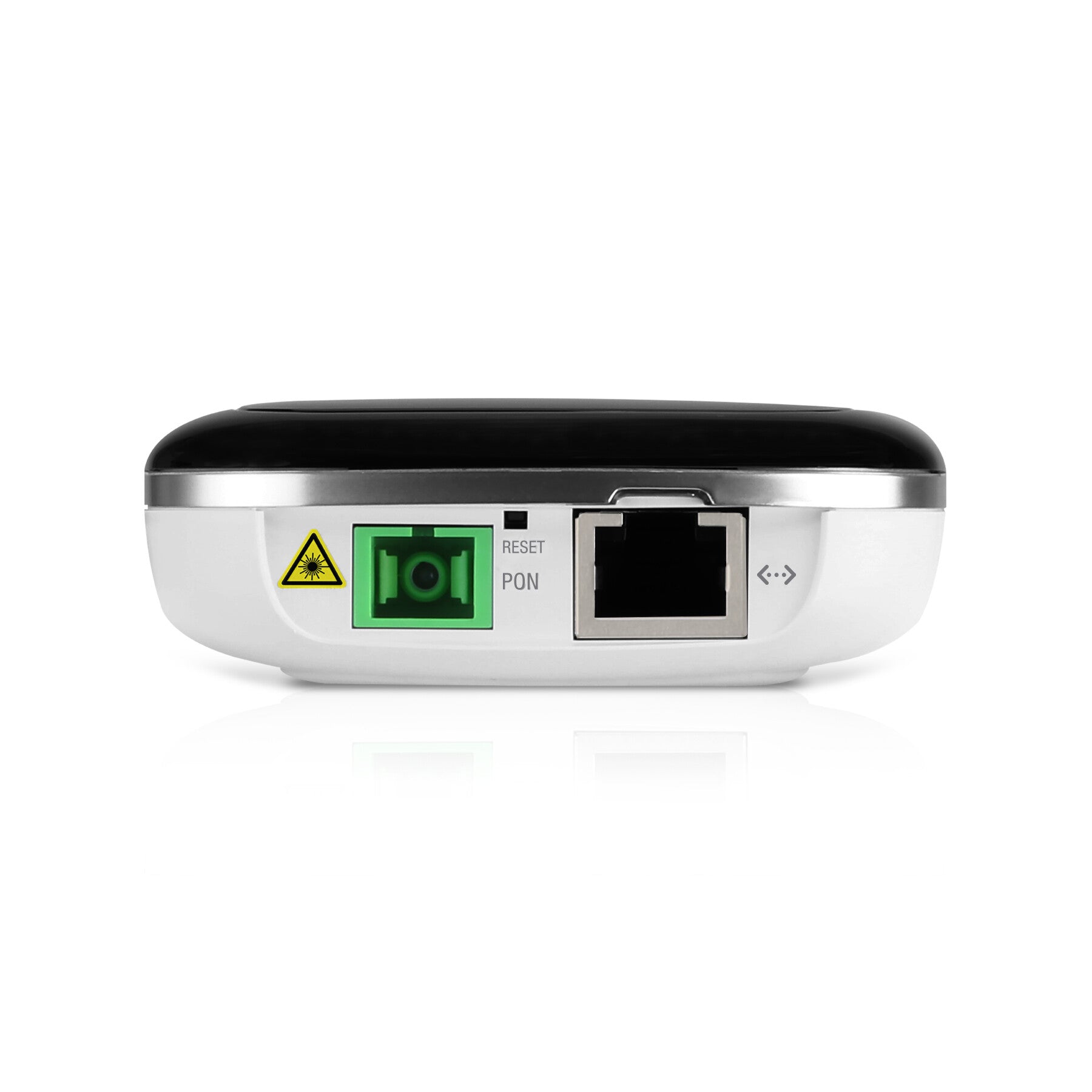

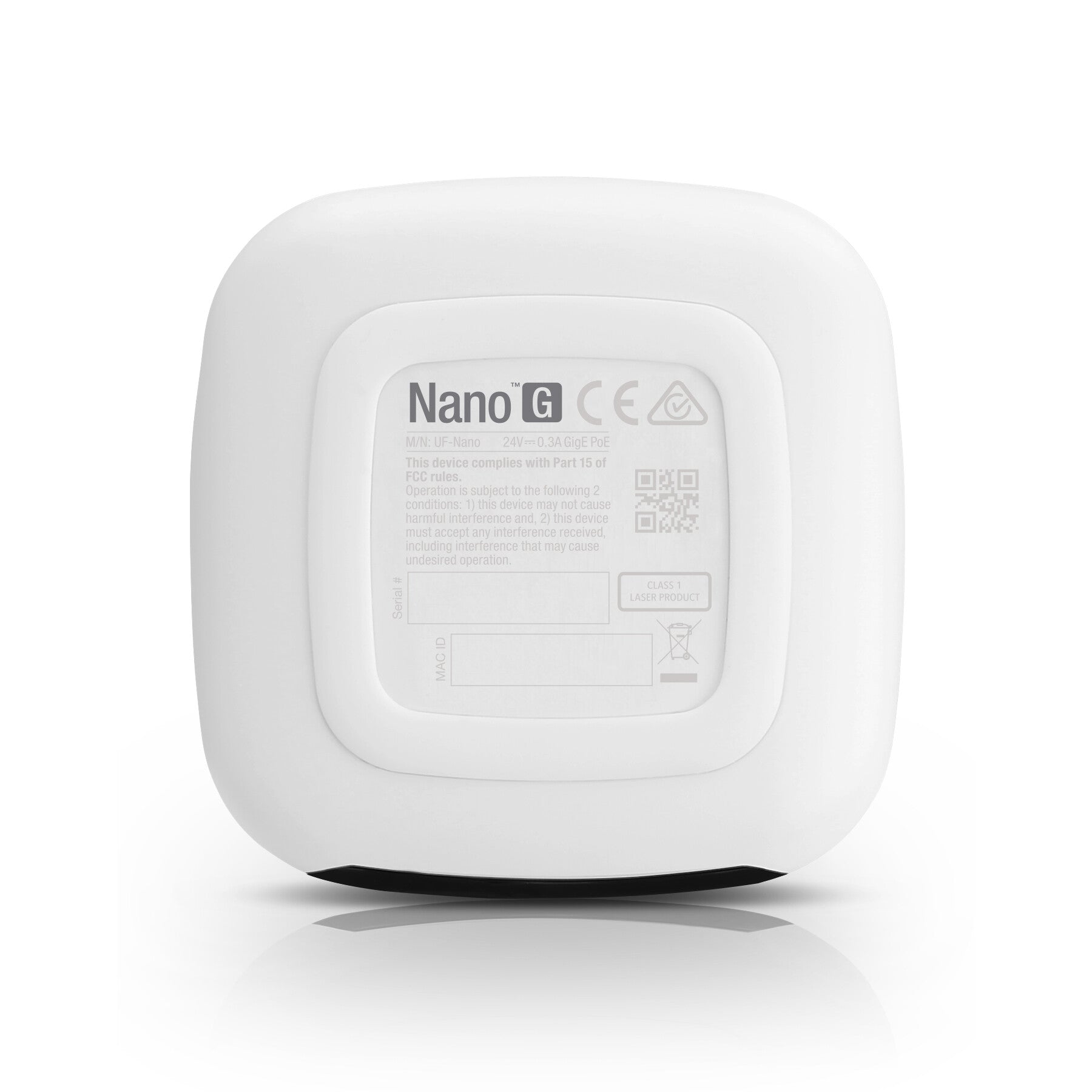

Ubiquiti UFiber Nano G gateway/controller 1000 Mbit/s
£78.99
Couldn't load pickup availability
- 1000 Mbit/s
- Built-in processor 240 MHz 128 MB
- Power over Ethernet (PoE)

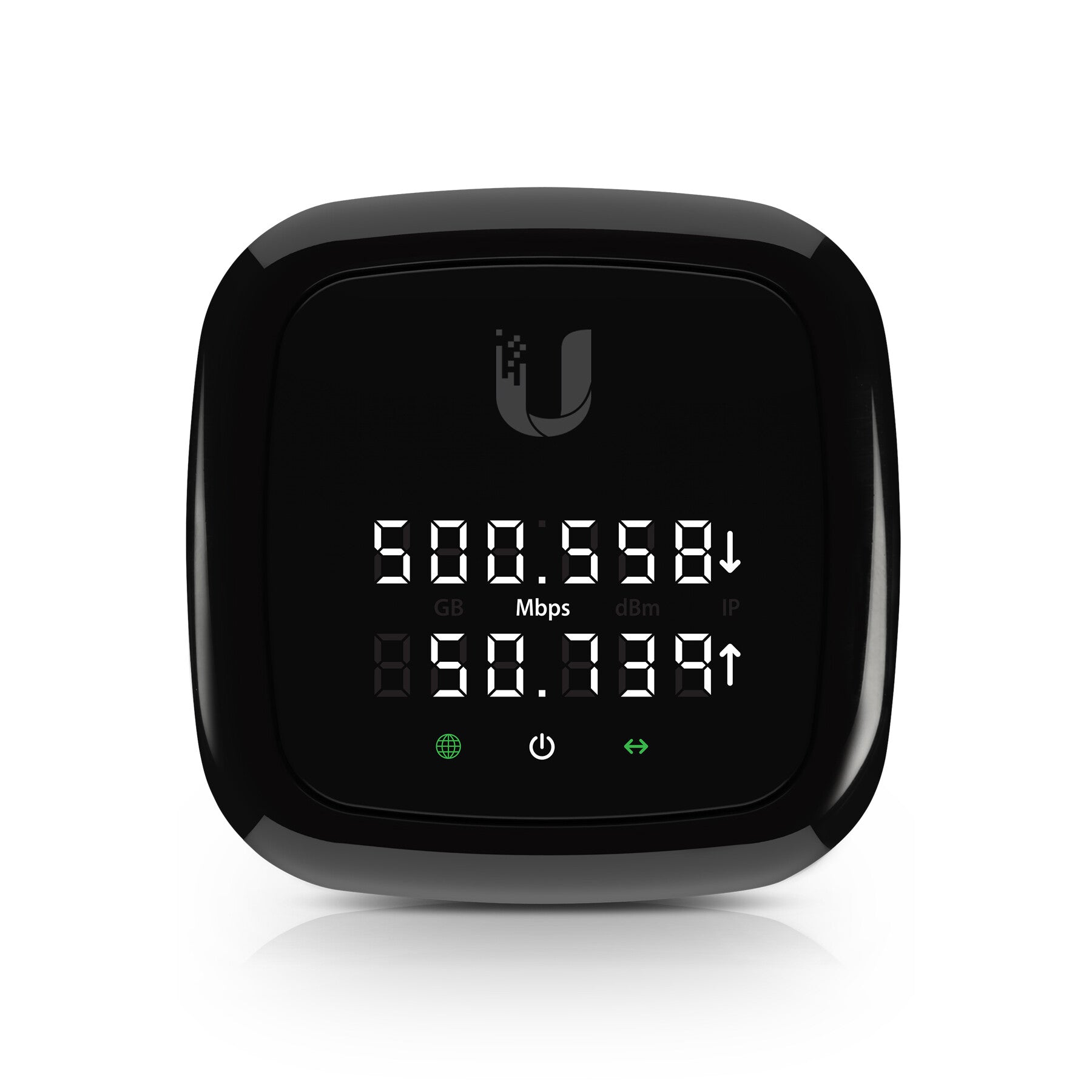

Status Display
The easy-to-read display provides status information: IP address, signal strength, and current throughput.
Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.
| Design | |
|---|---|
| LED indicators | Yes |
| Performance | |
|---|---|
| Internal memory | 128 MB |
| Number of processors installed | 1 |
| Processor frequency | 240 MHz |
| Built-in processor | Yes |
| Network | |
|---|---|
| Data transfer rate | 2.488 Gbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Input current | 0.3 A |
| Input voltage | 24 V |
| Power consumption (typical) | 7 W |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 77 x 77 x 28 mm |
| Weight | 110 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 45 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
