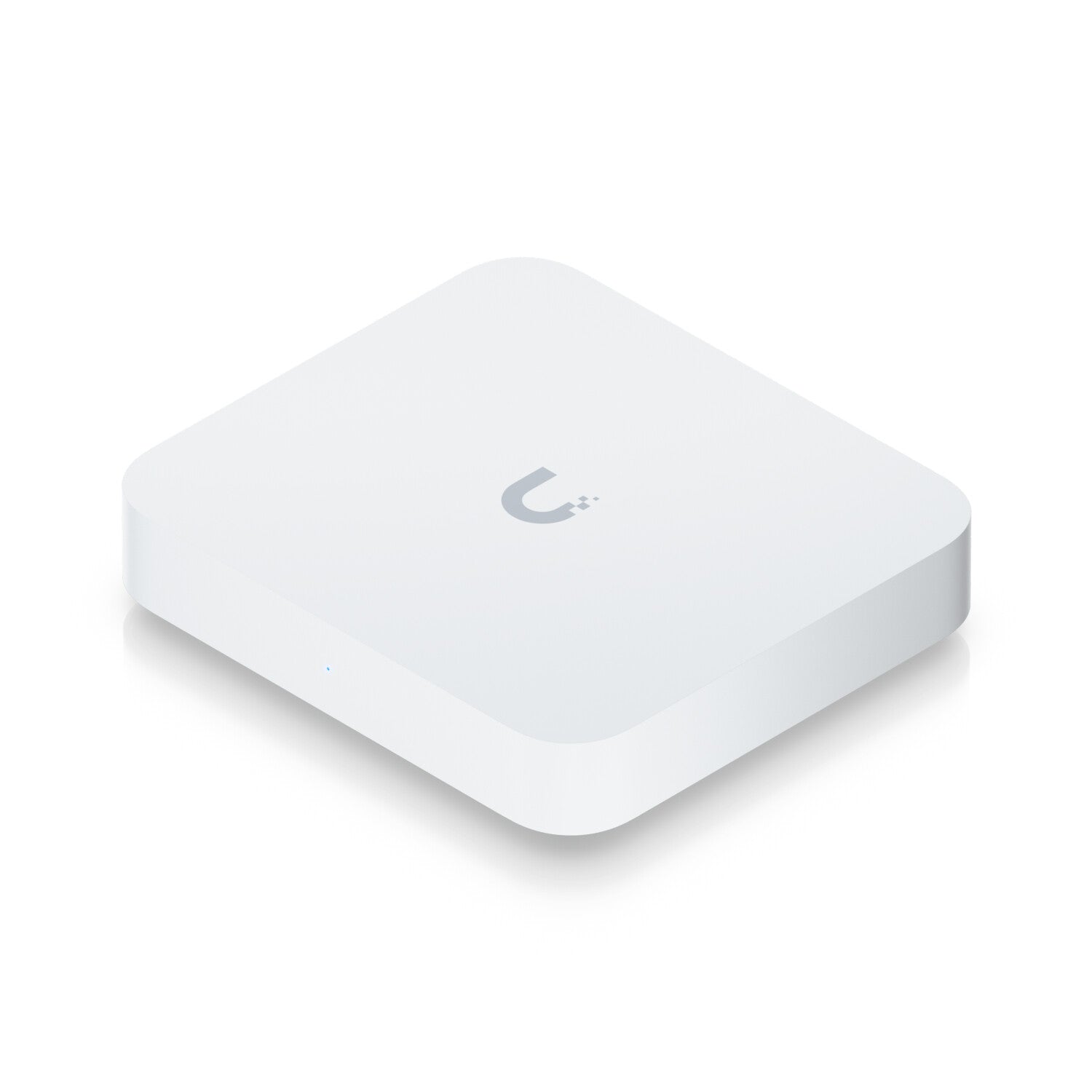

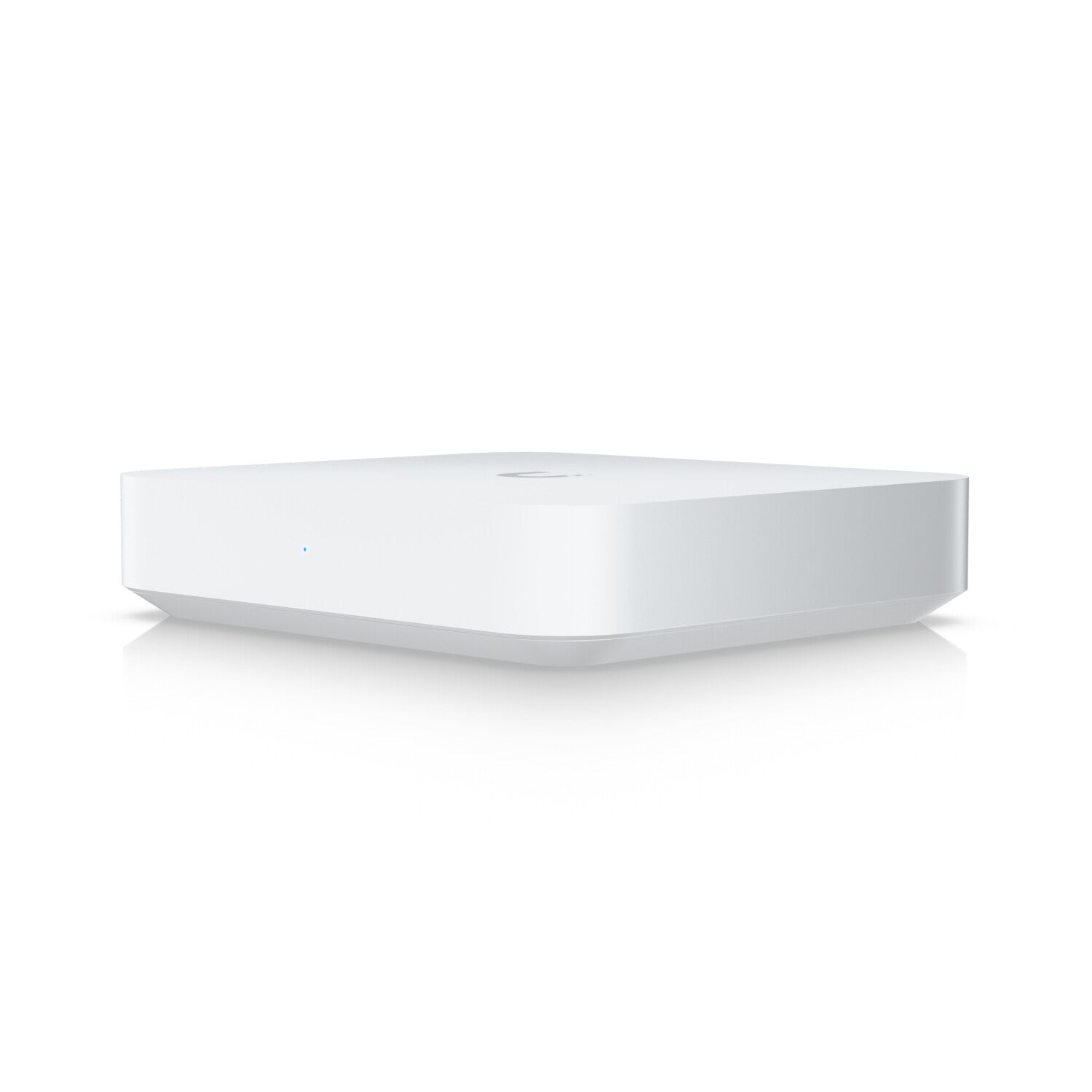

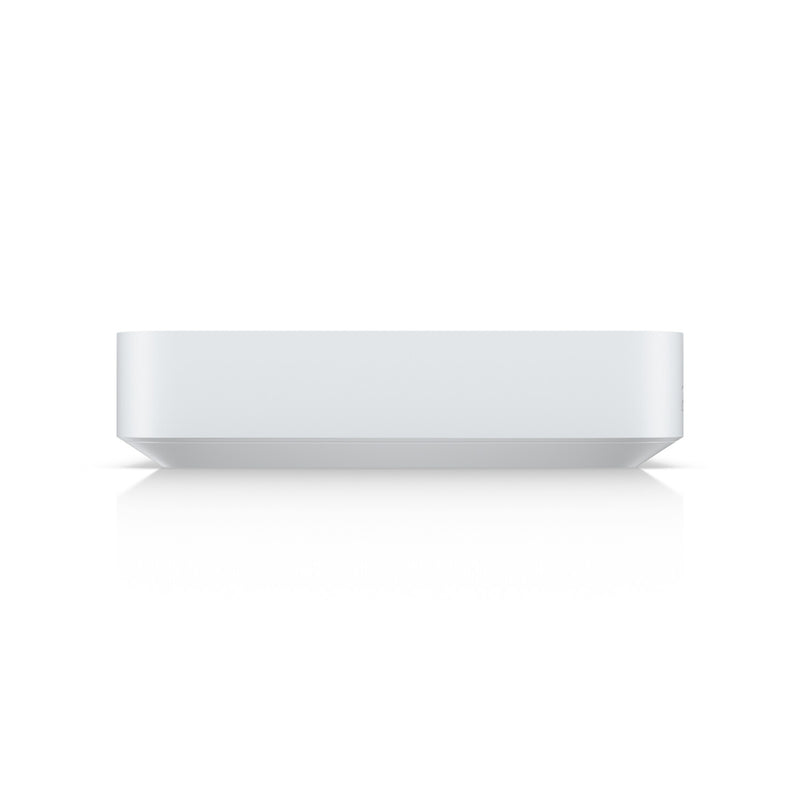

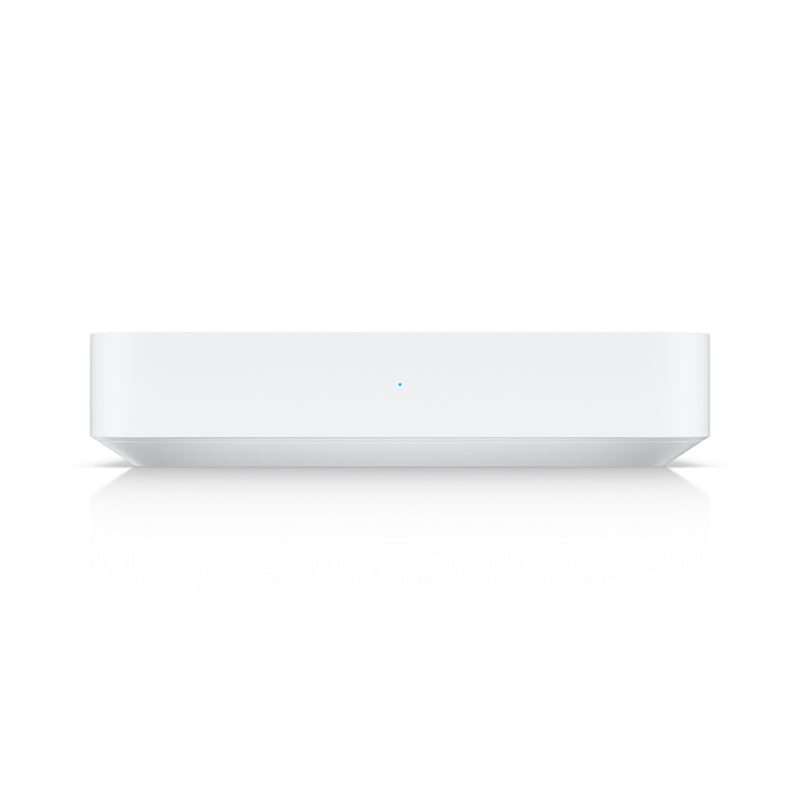

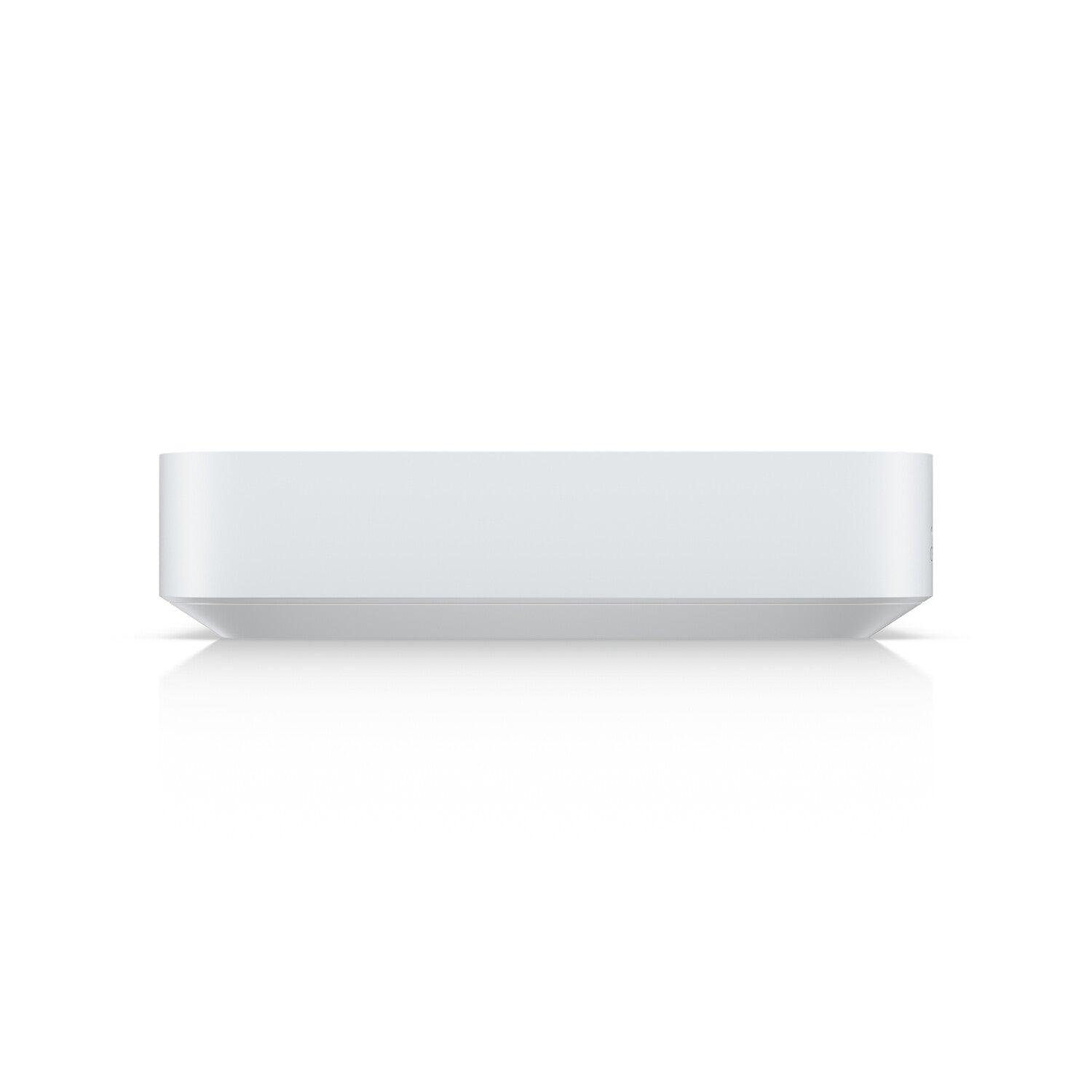

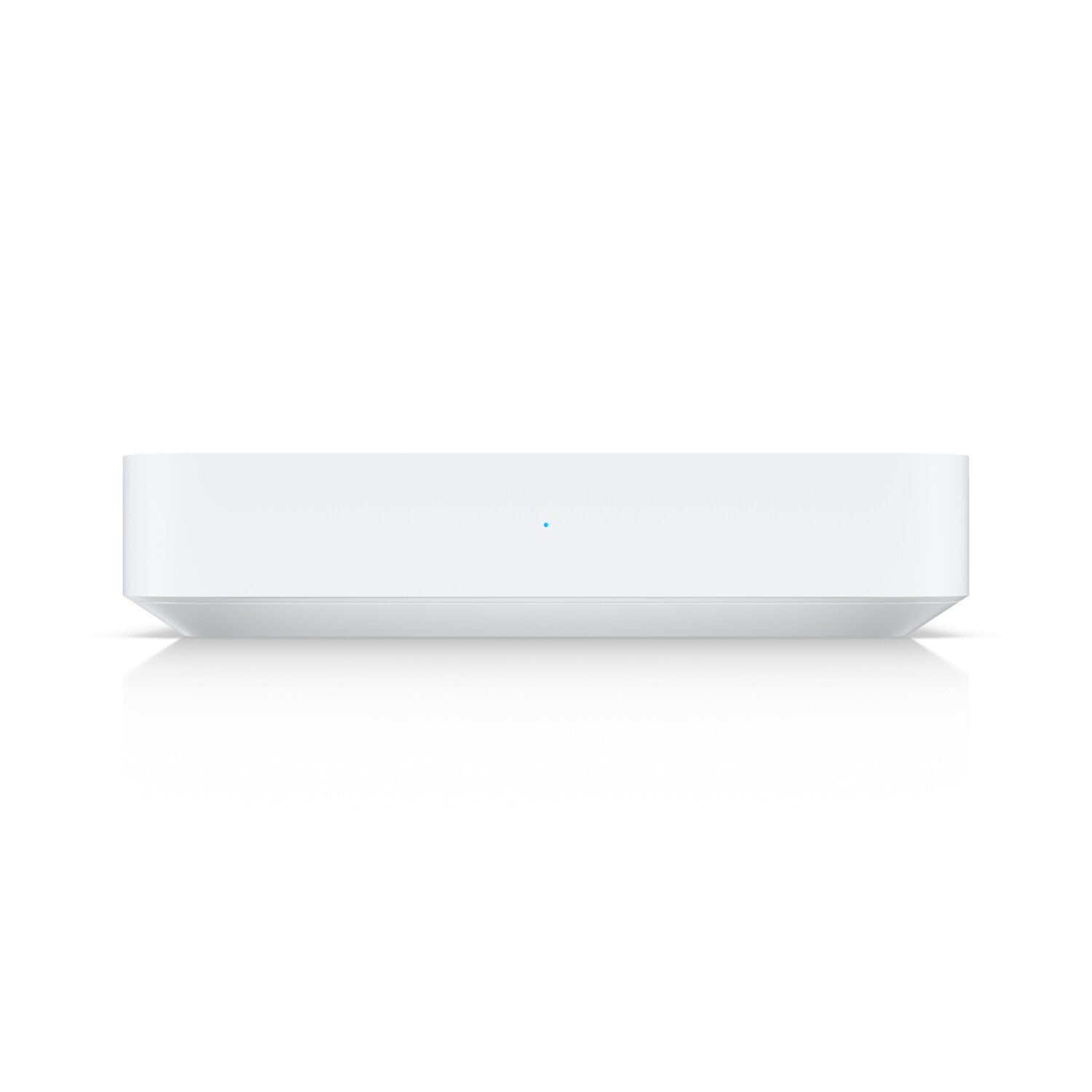

Ubiquiti Gateway Max gateway/controller 2500 Mbit/s
iFrame
£185.99
Couldn't load pickup availability
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- Up to 1.5 Gbps routing with IDS/IPS

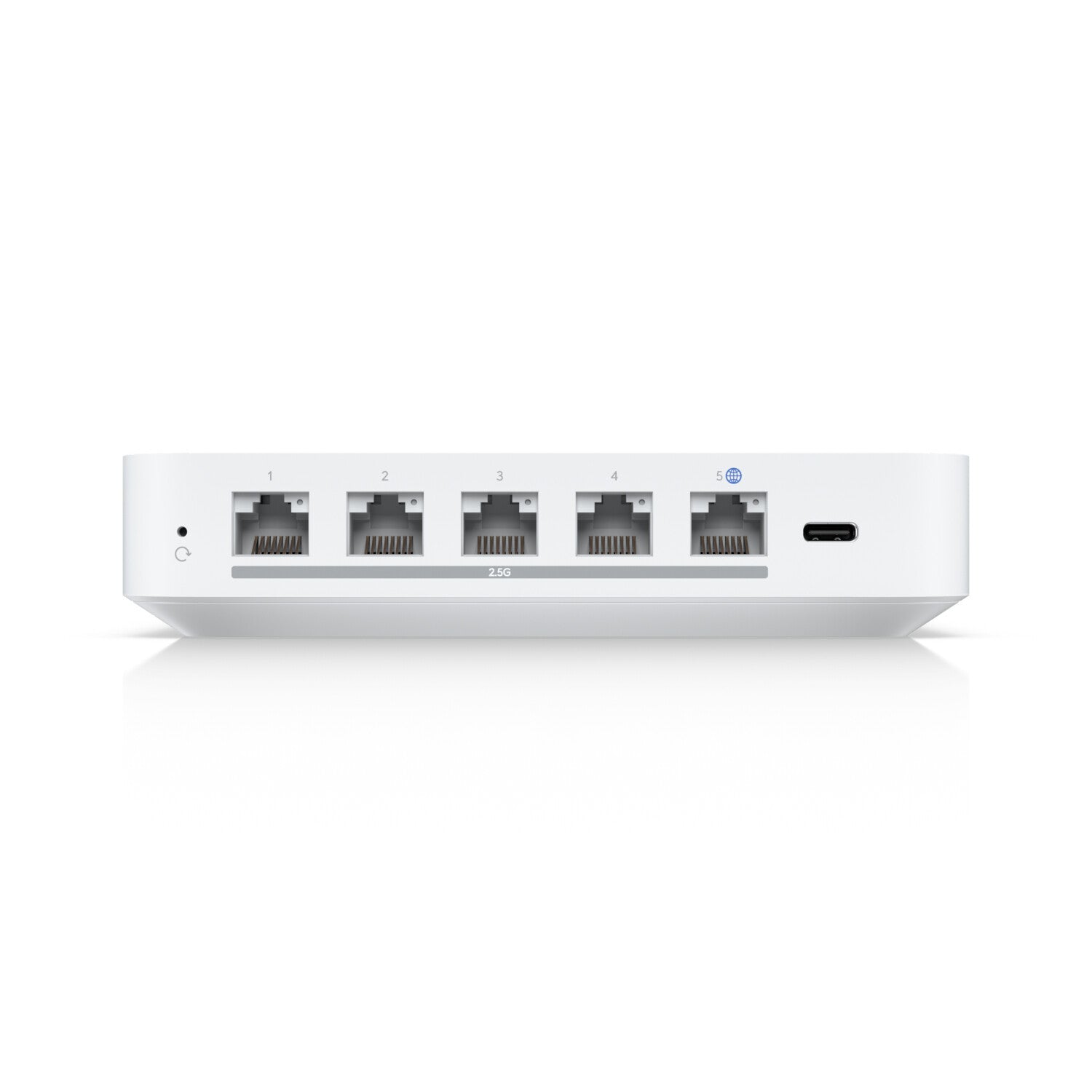

- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
- Managed with UniFi Network 8.1.113 and later
Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
| Design | |
|---|---|
| LED indicators | Activity, LAN, Link |
| Enclosure material | Polycarbonate (PC) |
| Product colour | White |
| Features | |
|---|---|
| Plug and Play | Yes |
| Performance | |
|---|---|
| Internal memory | 2000 MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor frequency | 1500 MHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A53 |
| Built-in processor | Yes |
| Control display unit | No |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Security | |
|---|---|
| Firewall security | Yes |
| VLAN support | Yes |
| Security algorithms | IPSec |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (max) | 9.6 W |
| Weight & dimensions | |
|---|---|
| Weight | 520 g |
| Width | 141.8 mm |
| Depth | 127.6 mm |
| Height | 30 mm |
| Packaging content | |
|---|---|

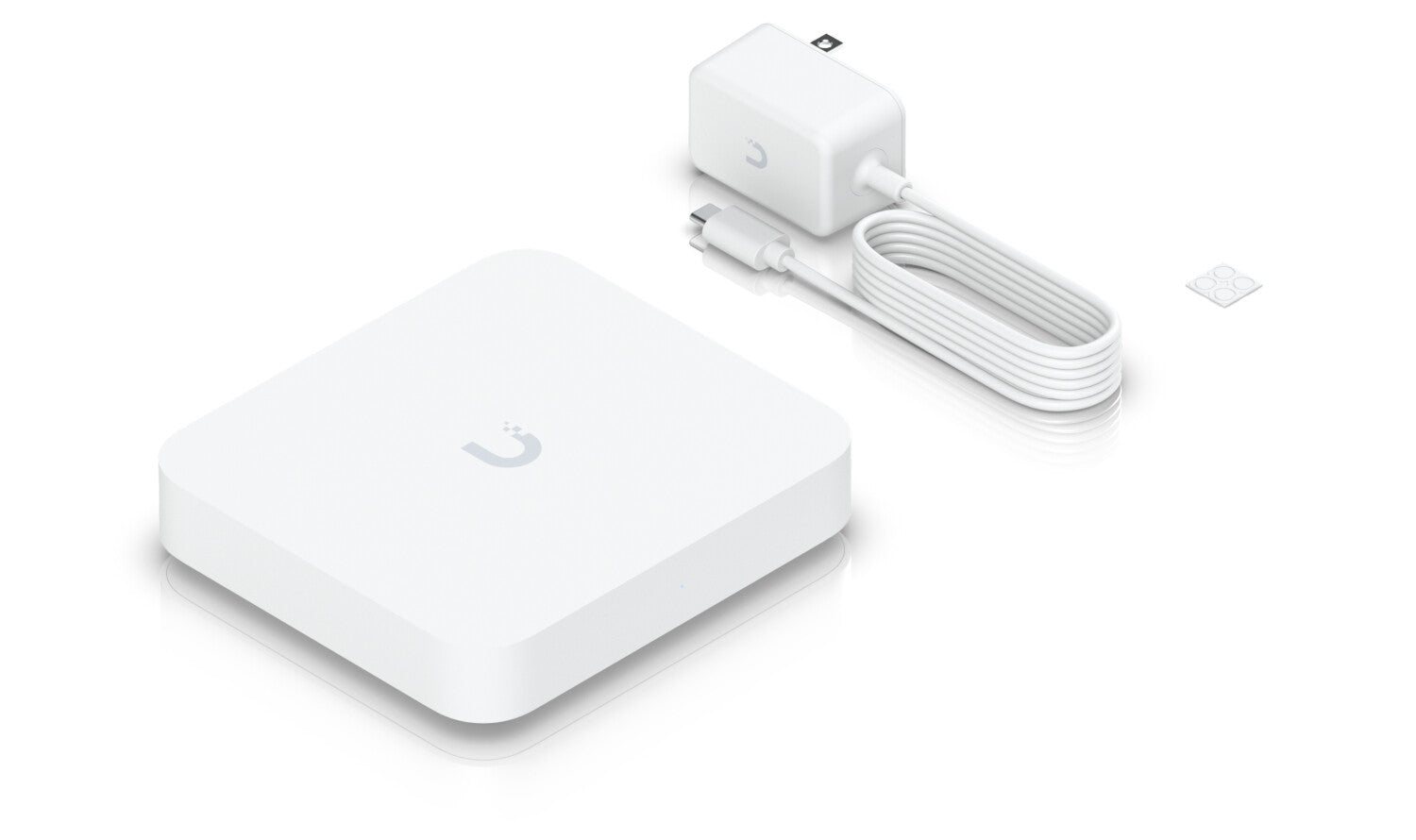

| AC adapter included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
