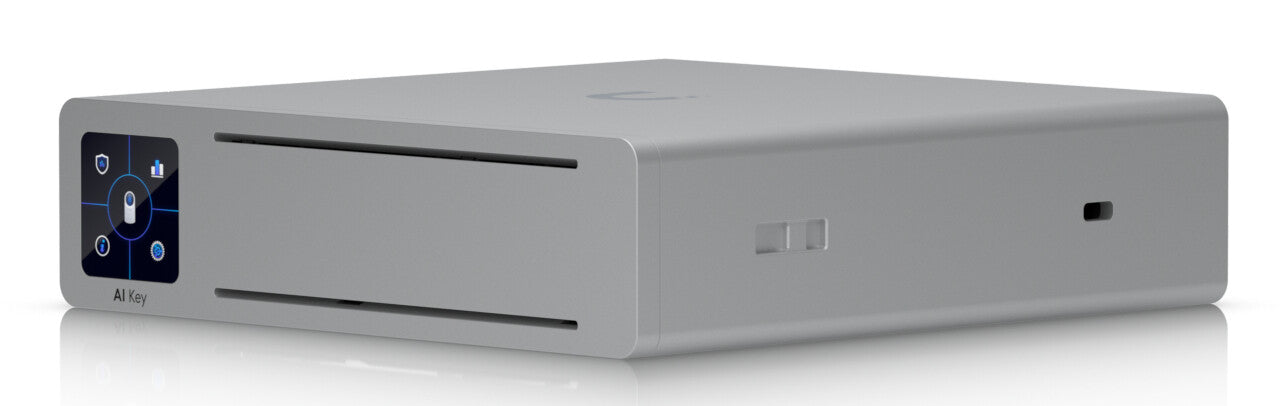

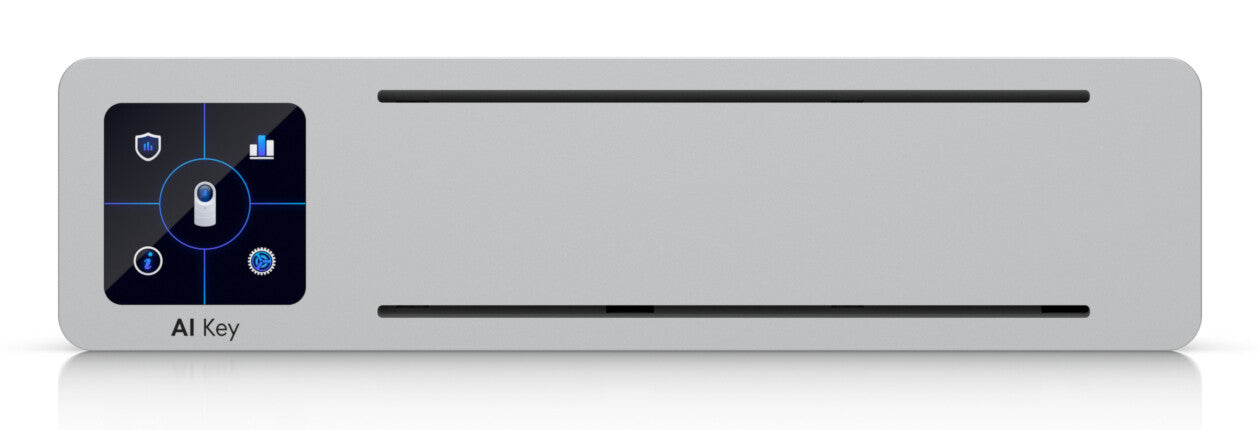

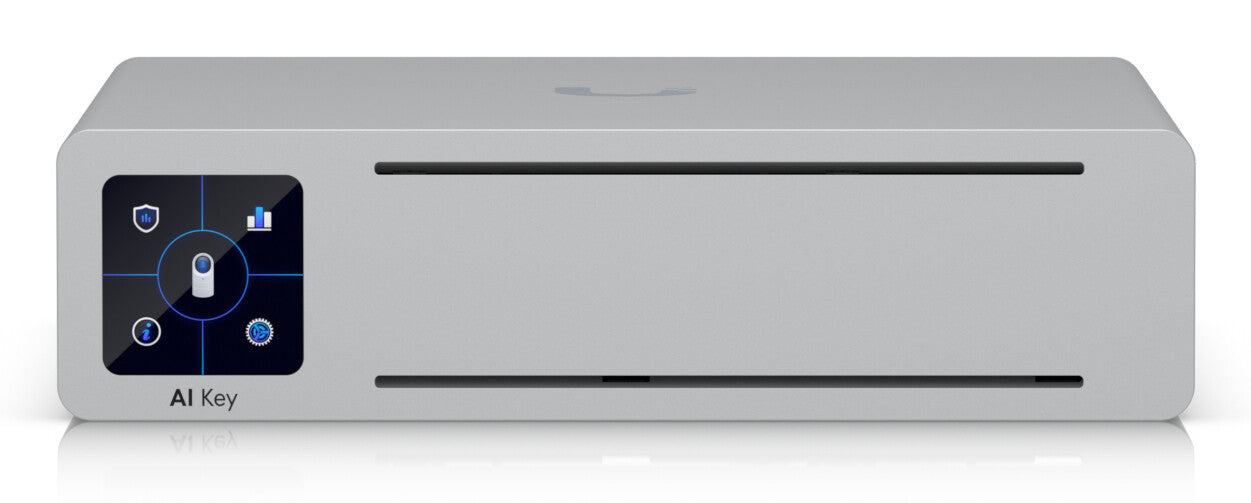

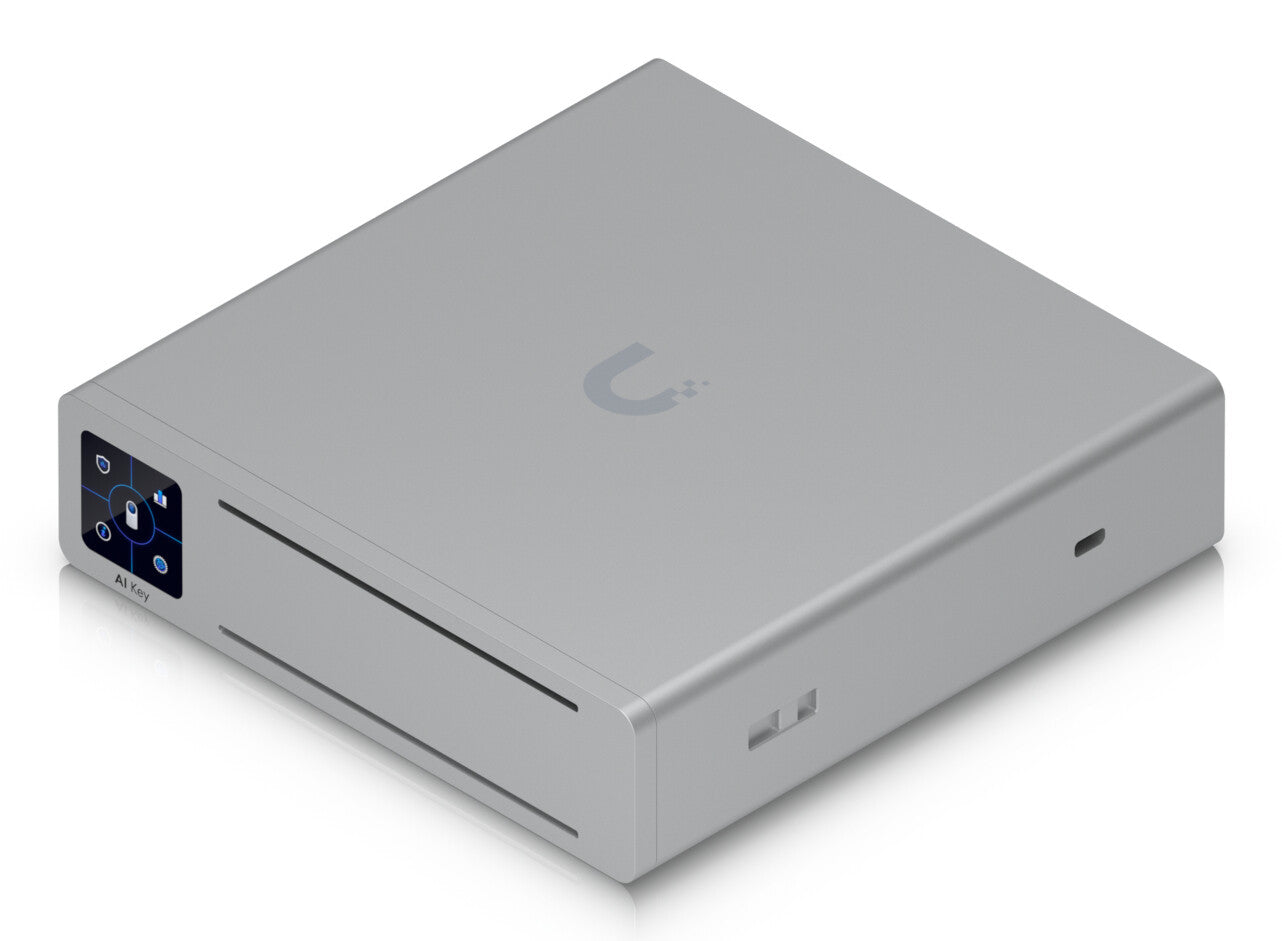

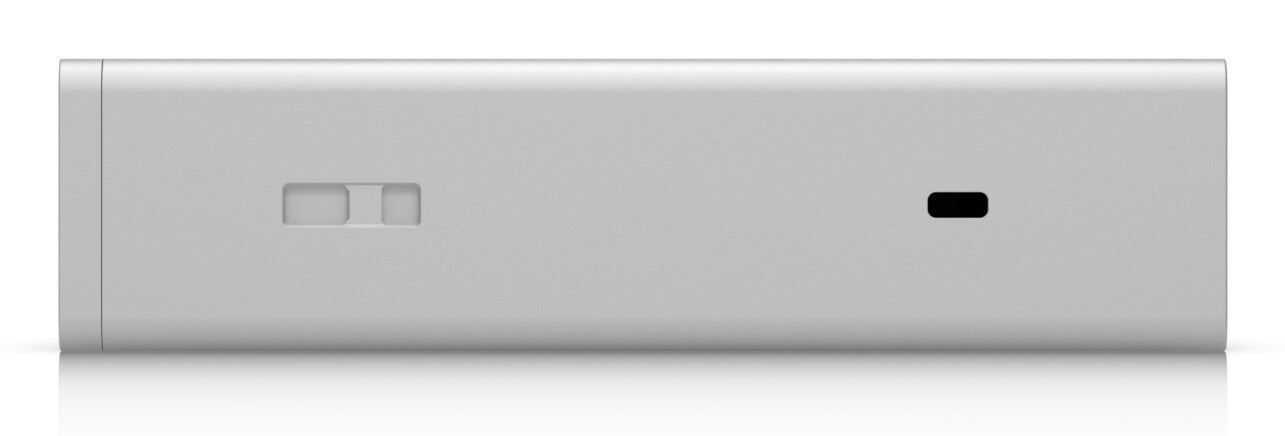

Ubiquiti AI-Key gateway/controller 1000 Mbit/s
Couldn't load pickup availability
- 1000 Mbit/s
- Control display unit Built-in processor 16000 MB 128 GB
- Power over Ethernet (PoE)
- Enclosure material: Aluminium
- Steel
AI Key is an advanced edge AI appliance designed to elevate your UniFi Protect security system. It enhances detection capabilities with powerful features like NeXT AI natural language search, AI alerts, speech transcription, image enhancement. Setting up the AI Key is quick and straightforward, allowing you to unlock advanced AI-driven insights that transform how you monitor and secure your environment.
AI Key works as an edge appliance by receiving smart detections from paired UniFi cameras. Traditionally, Protect cameras are only able to recognize very basic objects such as people and vehicles. AI Key takes these basic smart detections and runs them through a series of advanced AI models to provide powerful new features. While the models used by AI Key provide many useful new features, they might occasionally return inaccurate results. Over time these models will be optimized to improve their accuracy and add additional features.
| Design | |
|---|---|
| Enclosure material | Aluminium |
| Product colour | Steel |
| Performance | |
|---|---|
| SSD capacity | 128 GB |
| Internal memory | 16000 MB |
| Internal memory type | LPDDR5 |
| Detections per hour | 1000 |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A78AE |
| Built-in processor | Yes |
| Control display unit | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Management features | |
|---|---|
| Reset button | Yes |
| Power | |
|---|---|
| Electromagnetic (EMP) protection (contact) | 8 kV |
| Electromagnetic (EMP) protection (air) | 12 kV |
| Electromagnetic (EMP) protection | Yes |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electrostatic Discharge (ESD) protection (air) | 12 kV |
| Electrostatic Discharge (ESD) protection | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Input voltage | 50-57 V |
| Power consumption (max) | 45 W |
| Weight & dimensions | |
|---|---|
| Weight | 635 g |
| Width | 134.2 mm |
| Depth | 131.2 mm |
| Height | 33.7 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
| Certificates | |
|---|---|
| Certification | IC |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Display | |
|---|---|
| Touchscreen | Yes |
| Display diagonal | 3.3 cm (1.3") |
