Tripp Lite SR48UBEXPND SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides or Doors
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £479.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview

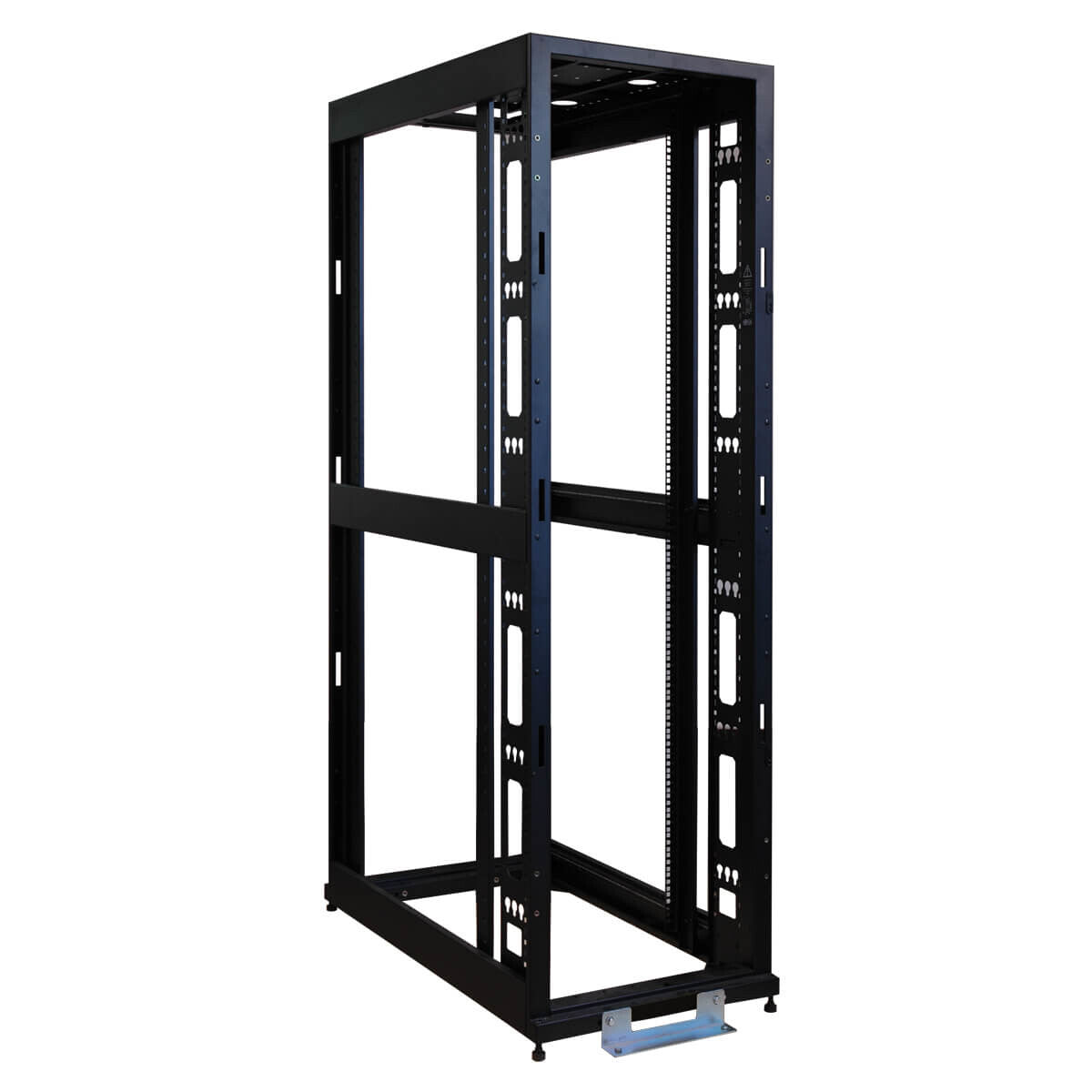

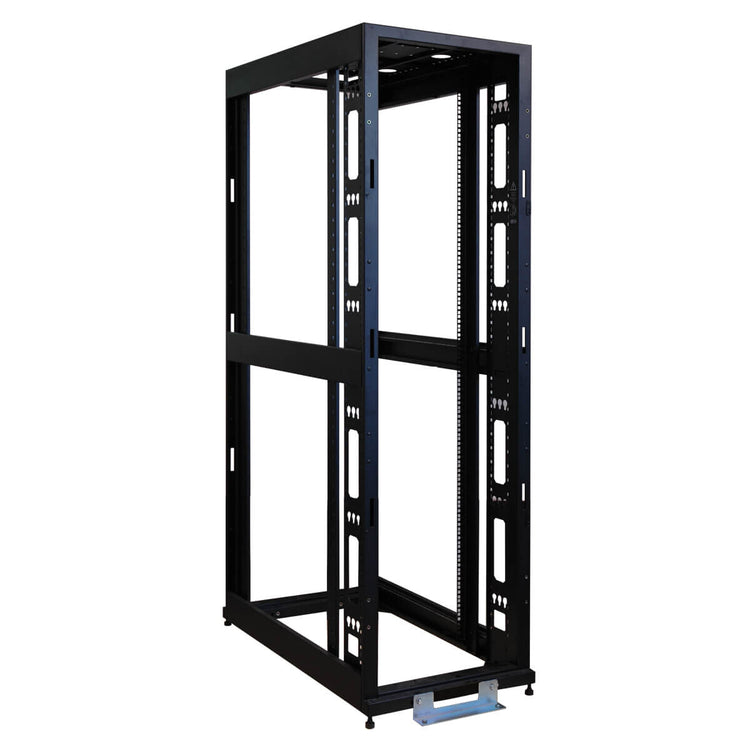

- 48U SmartRack Premium open frame rack
- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- Ships fully assembled
- 3500 lbs (1588 kgs) stationary / 2250 lbs (1020.6 kgs) rolling load capacity
- Preinstalled casters and leveling feet
- Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
This SmartRack® 48U Standard-Depth 4-Post Premium Open Frame Rack has no doors and no side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.
The SR48UBEXPND houses 3,500 pounds (1588 kilograms) of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
All components of the SR48UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.
To simplify deployment, the SR48UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Specifications
Technical details
| Product colour | Black |
|---|---|
| Width (imperial) | 6 m (236.3") |
| Height (imperial) | 22.6 m (890") |
| Depth (imperial) | 6 m (236.3") |
| Country of origin | China |
Certificates
| Safety | EIA-310-E, IEC 60297-3-100, DIN 41494, RoHS, UL 60950 |
|---|
Show all 11 specificationsShow fewer specifications
Other features
| Dimensions (WxDxH) | 6002 x 10920 x 22610 mm |
|---|
Weight & dimensions
| Weight | 77.6 kg |
|---|---|
| Width | 600.2 mm |
| Depth | 1092.2 mm |
| Height | 2260.6 mm |
