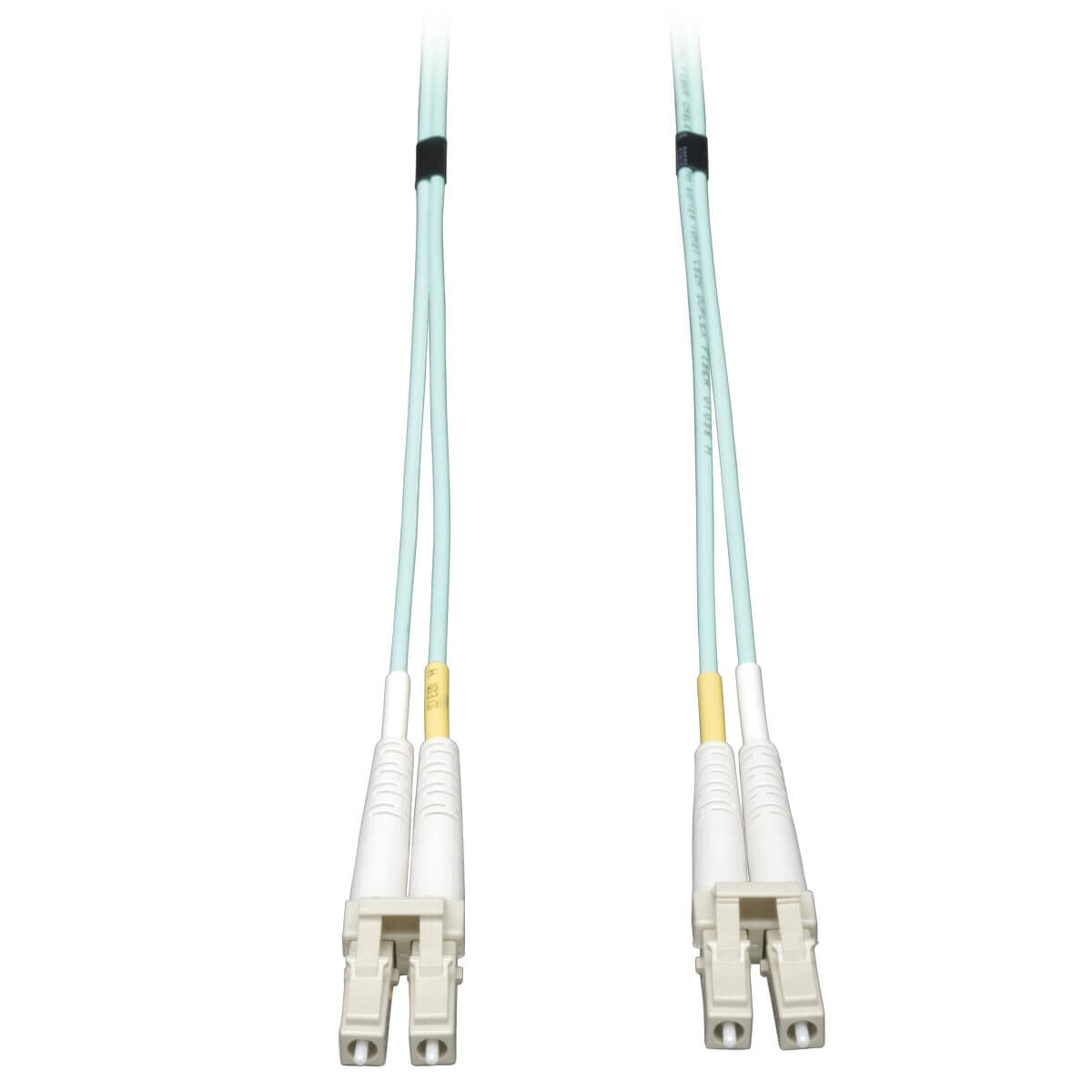

Tripp Lite N820-15M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable, (LC/LC) - Aqua, 15M (50 ft.)

Tripp Lite N820-15M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable, (LC/LC) - Aqua, 15M (50 ft.)

Eaton
£21.99
Stock Available: 0
  • Designed for 10-Gig Ethernet applications...OM3 Rated
  • Backward compatible with existing 50/125 fiber
  • Max 10Gb distance of 300 meters @850nm
  • Low-Smoke, Zero Halogen (LSZH) Aqua jacket

OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables are for use with 10 Gb Ethernet applications. These 50/125um LC/LC Fiber Optic cables provide nearly four times the bandwidth over conventional 62.5um multimode fiber with performance rivaling that of singlemode cable at a much reduced cost. LOMMF cable allows 10 Gb serial transmission over extended distances in the 850 nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.

Features
Jacket material Low smoke zero halogen (LSZH)
Data transfer rate 10 Gbit/s
Wavelengths supported 850 nm
Fiber mode structure Multi-mode
Cladding diameter 125 µm
Core diameter 50 µm
Full duplex Yes
Product colour Blue
Connector 1 gender Male
Connector 2 gender Male
Connector 2 LC
Connector 1 LC
Fibre optic type OM3
Cable length 15 m
Certificates
Compliance certificates RoHS
Packaging data
Package weight 110 g
Package height 228.6 mm
Package depth 12.7 mm
Package width 177.8 mm
Other features
Core / cladding diameter 50/125 µm
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case gross weight 1.23 kg
Master (outer) case height 375.9 mm
Master (outer) case length 149.9 mm
Master (outer) case width 154.9 mm
Harmonized System (HS) code 85447000
Country of origin China
Master (outer) case GTIN (EAN/UPC) 10037332124873
