Tripp Lite N484-12LC 10GbE Pass-Through Cassette - (x12) LC Duplex
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £58.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- High Density Fiber Cassette for use with the N484-00U and N484-01U chassis'
- 10GbE Pass-Through Cassette, with (x12) LC Duplex connections
- Guaranteed compatibility when used with recommended cabling
- Compatible with both singlemode and multimode fiber cables.
- Designed specifically for use with cables, such as the N820- and N821-Series cables
- Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

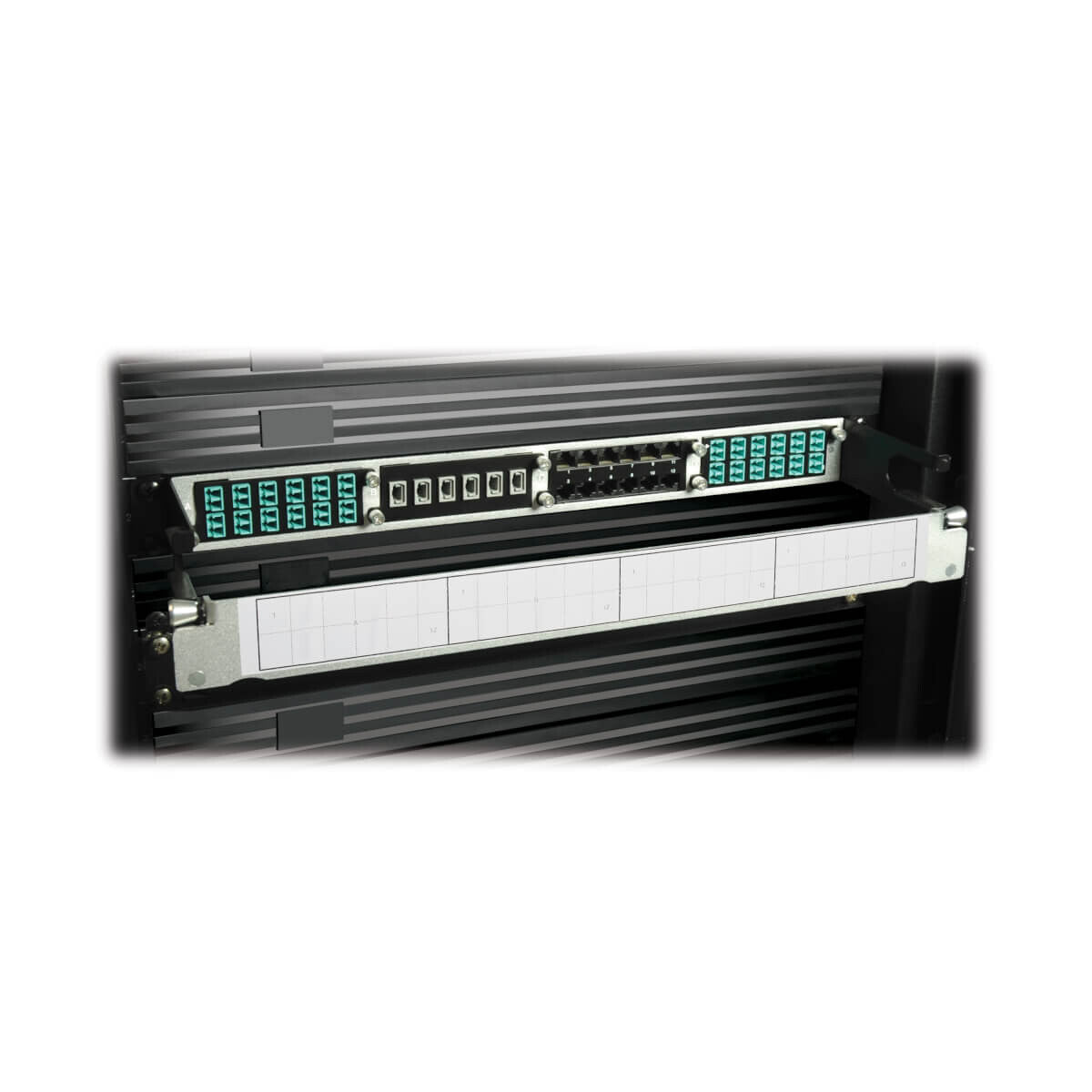

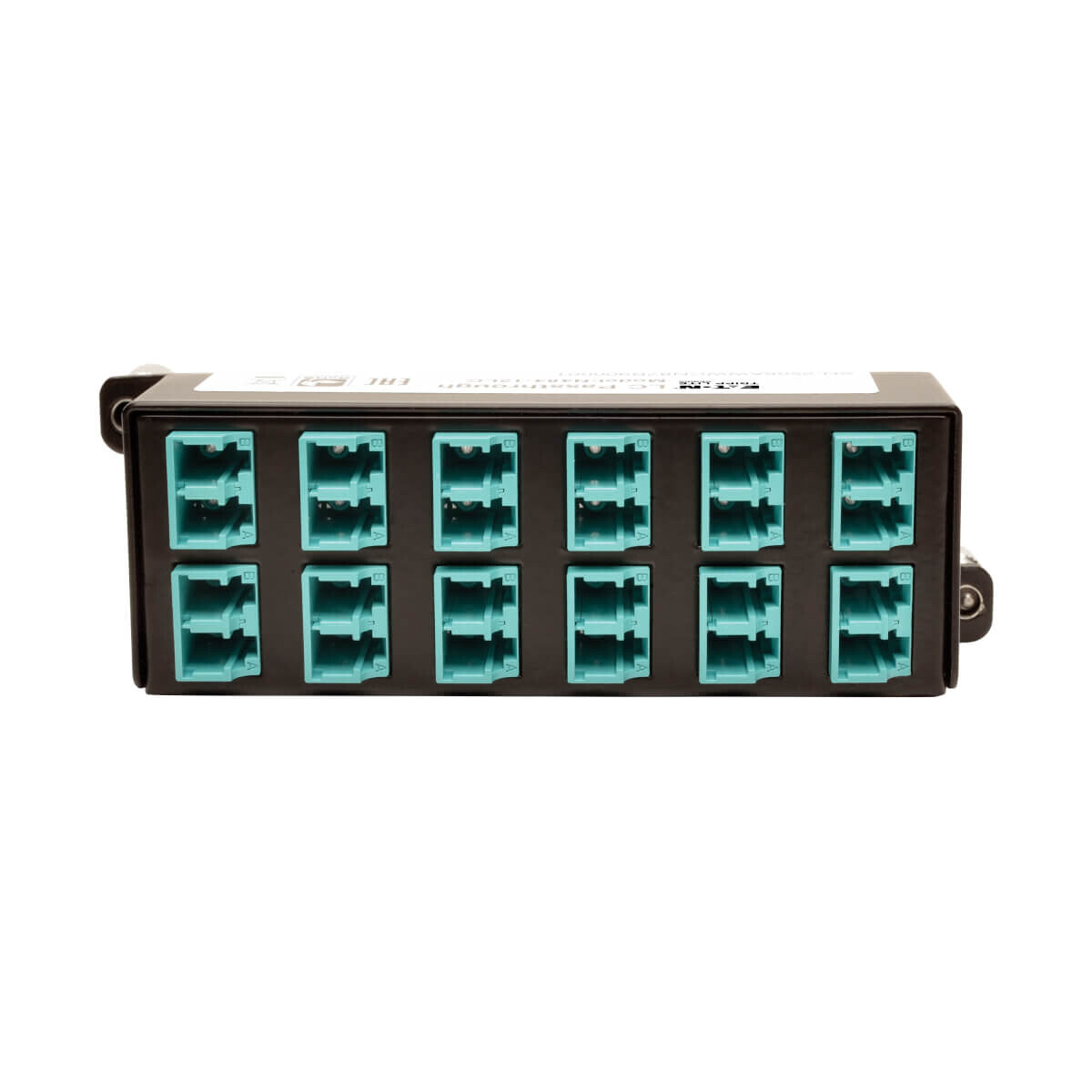

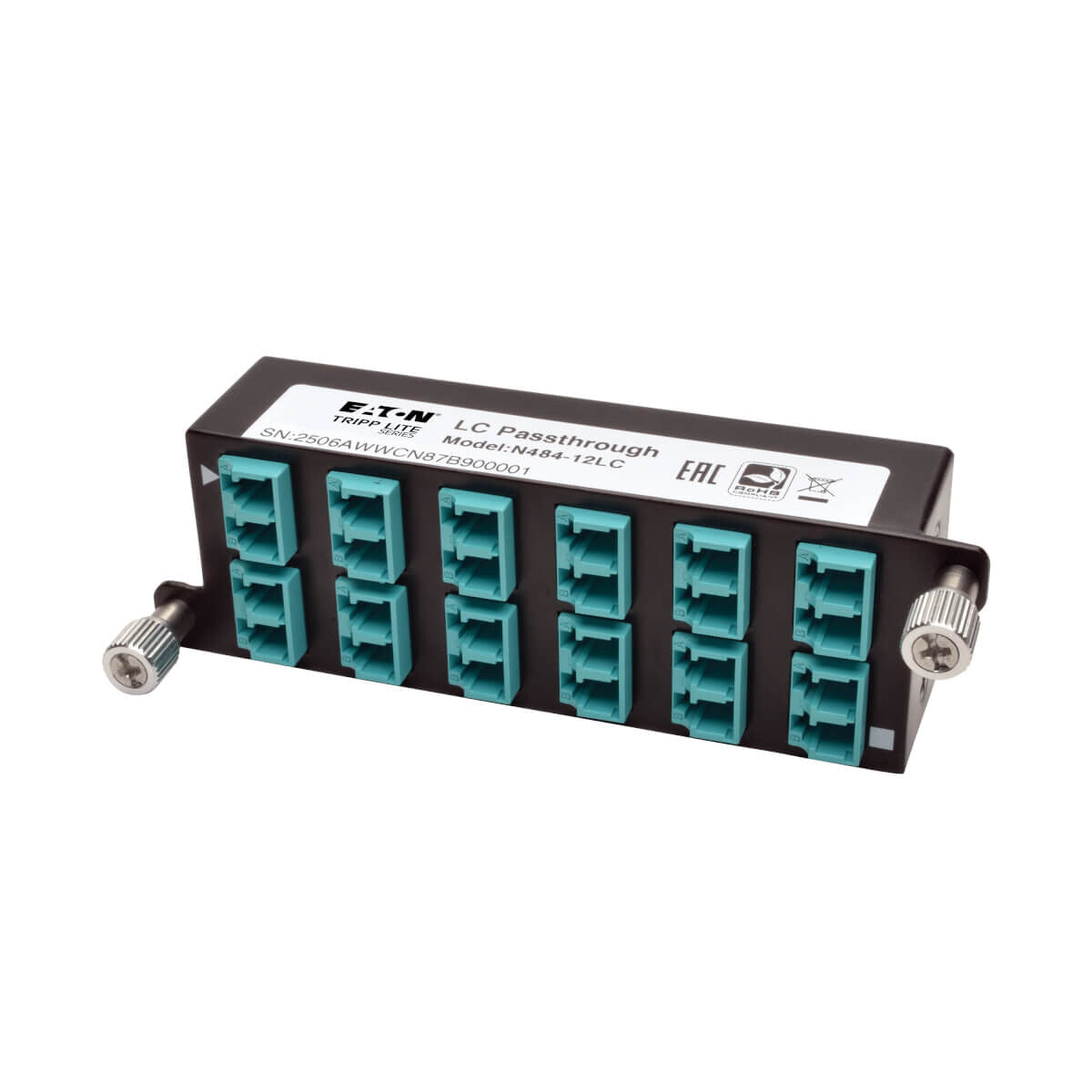

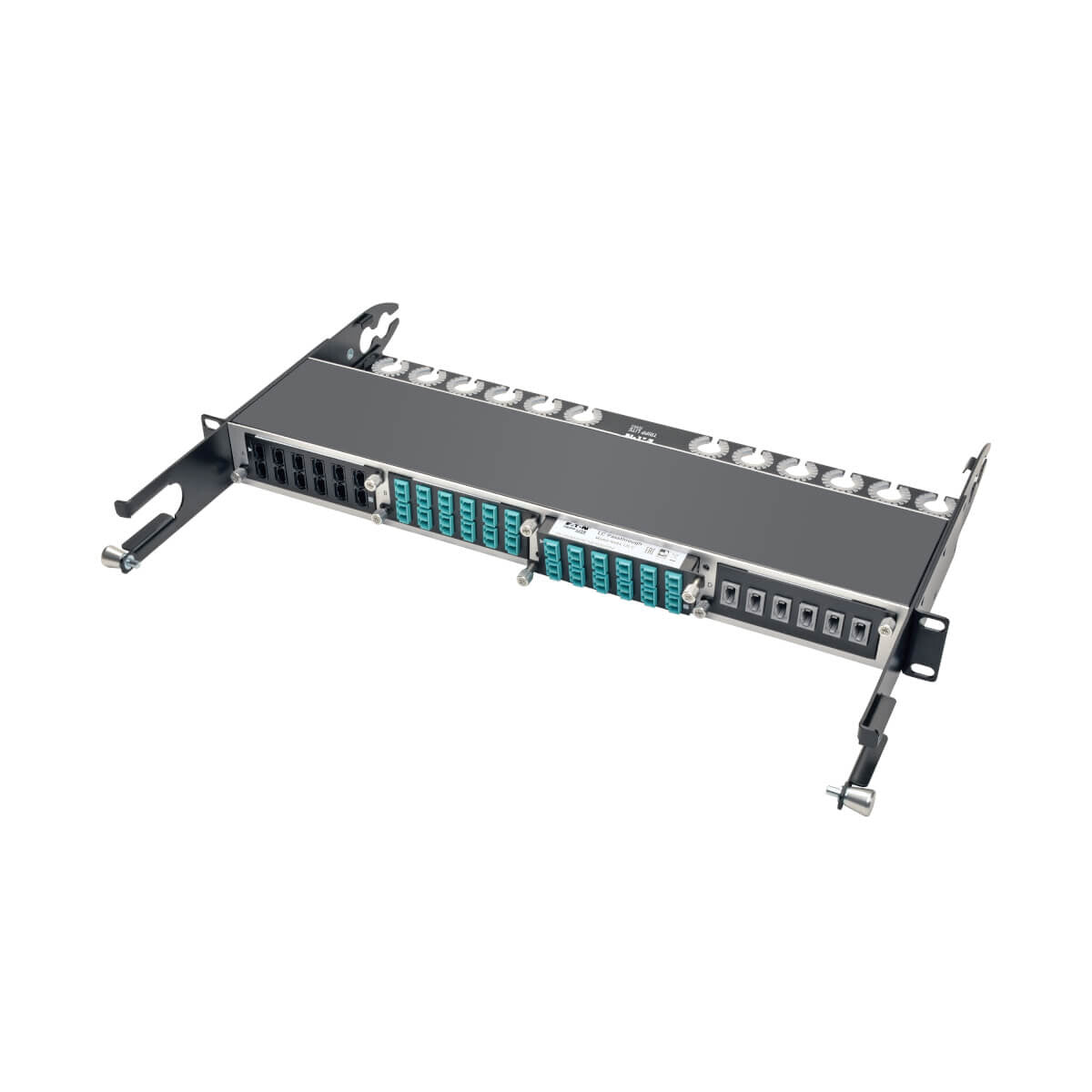

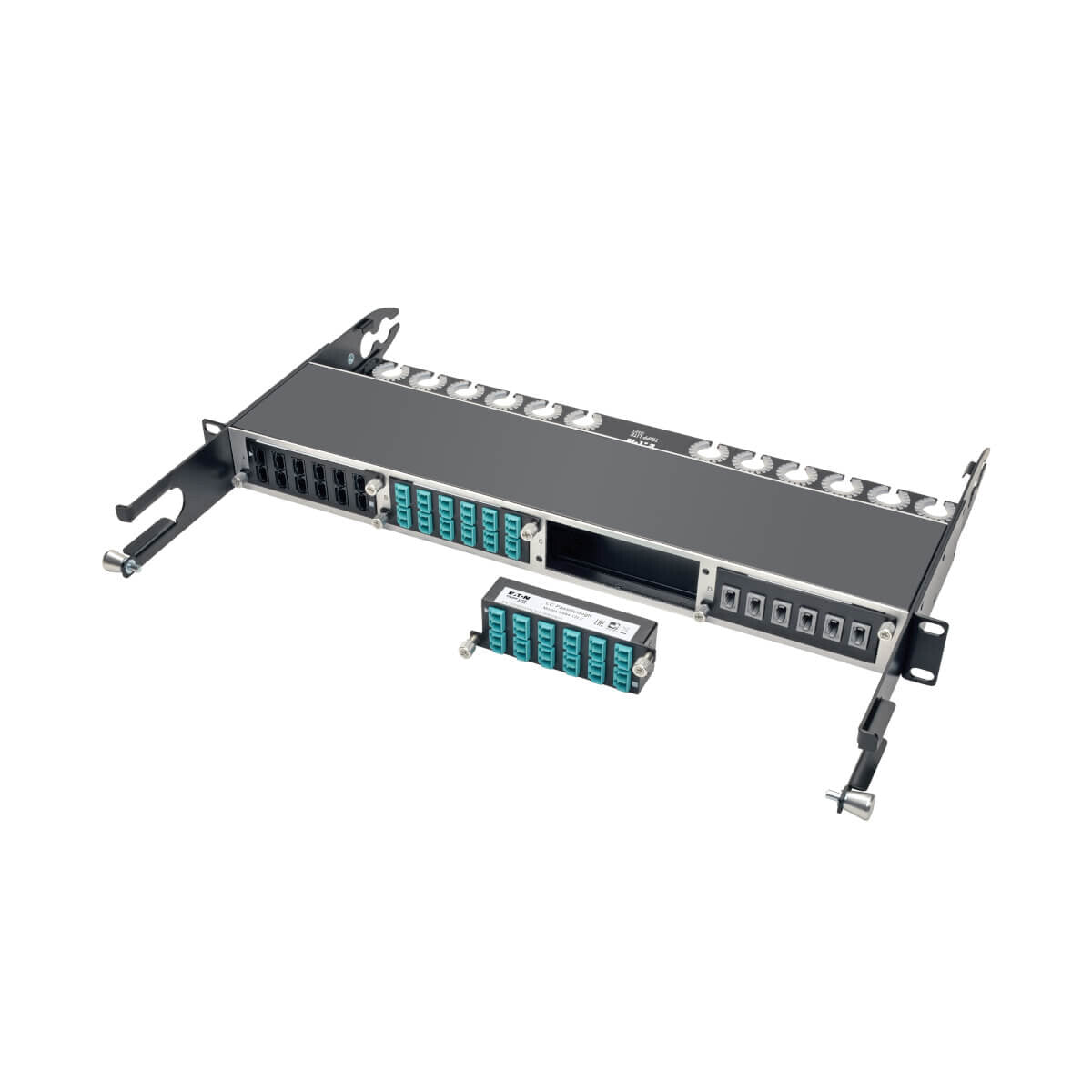

The N484-12LC is a high-density 10 Gb Pass-through Cassette with (x12) LC Duplex connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each duplex LC connection is rated for 10 GbE, with an extremely low max insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Compatible with both singlemode and multimode fiber cables. Designed specifically for use with N820- and N821-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy-duty 1.0mm cold-rolled steel.
Specifications
Network
| Ethernet interface type | 10 Gigabit Ethernet |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Ports quantity | 12 |
| Connector(s) | LC |
Design
| Product colour | Black |
|---|---|
| Material | Steel |
Show all 13 specificationsShow fewer specifications
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | REACH |
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|
Weight & dimensions
| Width | 88.9 mm |
|---|---|
| Height | 30.5 mm |
| Depth | 119.4 mm |
| Weight | 240 g |
