Tripp Lite B070-016-19 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD

Eaton · MPN: B070-016-19
£1,405.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £468.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Display diagonal48.3 cm (19")
  • Display resolution1280 x 1024 pixels
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Occupies just 1U of space in a rack-mountable drawer
  • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
  • 19” LCD screen supports video resolution up to 1366 x 768
  • Simplifies IT tasks with easy switching between all 16 ports
  • Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
  • TAA compliant for GSA Schedule purchases

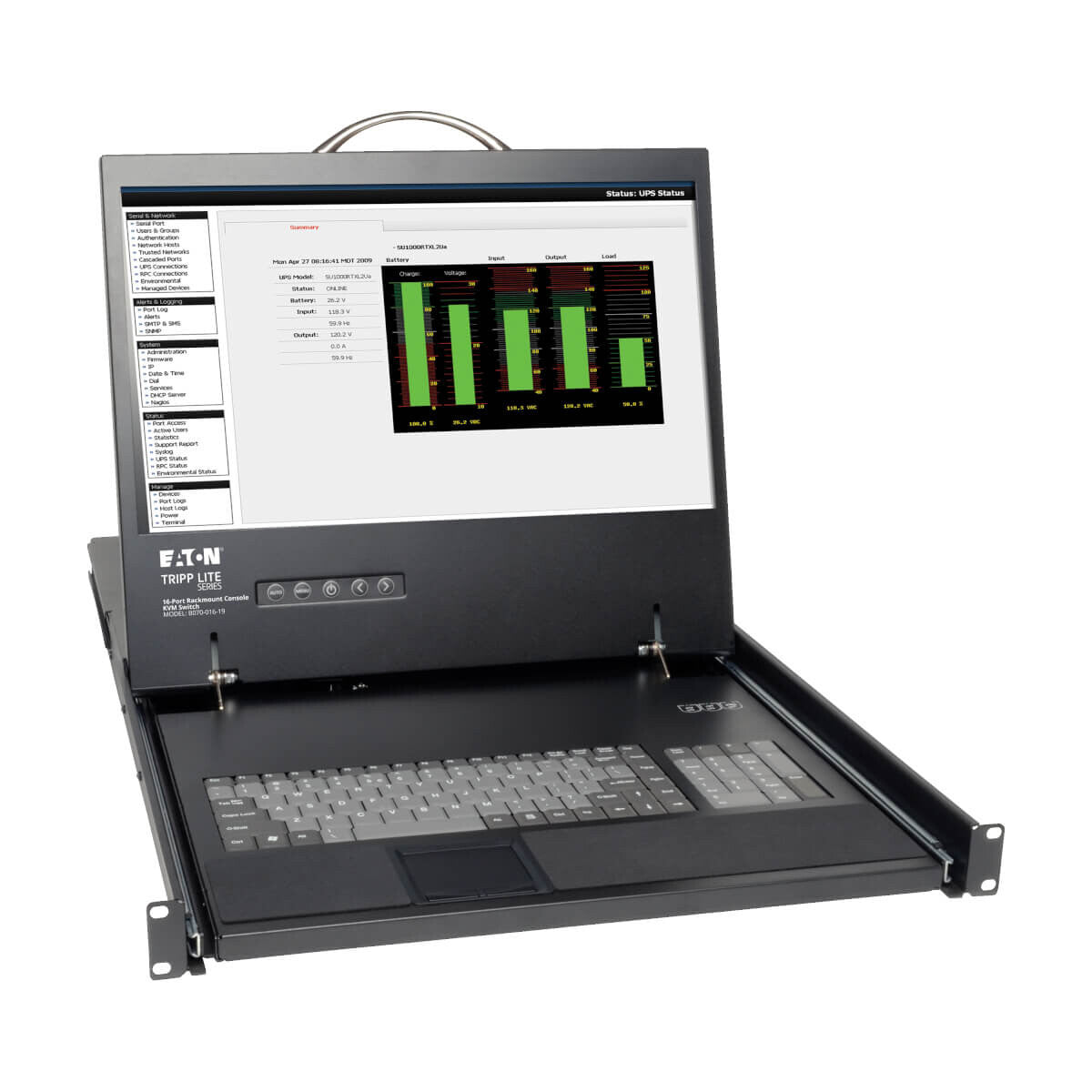

This B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.

The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a cabling and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hotkey commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.

The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Note: B051-000 remote access IP unit is not compatible with B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.

Specifications

Display

Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
DisplayLCD
On Screen Display (OSD)Yes

Technical details

Height (in Rack Units)1
Compliance certificatesRoHS
Relative humidity0 - 80%
Operating temperature (T-T)-40 - 158 °F
KVM switch ports quantity16
Built-in KVM switchYes
Product colourBlack
Country of originTaiwan
Weight (imperial)16.3 kg (36 lbs)
Show all 22 specificationsShow fewer specifications

Ports & interfaces

InterfaceVGA, USB, PS/2
I/O ports16x RJ-45

Power

AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz

Certificates

CertificationUL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1

Weight & dimensions

Width449.3 mm
Height43.4 mm
Depth722.4 mm
Weight14 kg
