Tripp Lite · MPN: B064-000-STN
£646.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £215.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Replaces a PC or laptop, eliminating forced system updates and avoiding virus threats
  • Monitors and manages video output of up to 64 servers simultaneously on one display
  • Remotely connects storage media to a target server anywhere on the network
  • Java-free platform avoids access issues and vulnerabilities of frequent manual updates
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Monitor and Control Your KVM over IP Switches without a Computer
This enterprise-level user console station gives you remote access to your B064-IPG KVM switches without the use of a PC, laptop or notebook computer. With no operating system, you no longer have to worry about forced system or software updates. You’re also protected against the threats of viruses, spam, phishing and malware by allowing access only to connected servers and not email, apps, malicious websites or any other Internet-based potential threats to your system. The Java-free platform lets you avoid certain access issues and security vulnerabilities.

Preview up to 64 Servers at the Same Time with Panel Array Mode
Panel array mode lets you monitor and manage the video output from as many as 64 connected servers at the same time, all on one HDMI monitor. By previewing every connected server simultaneously, the B064-000-STN is ideal for network applications that require constant monitoring, such as surveillance and security. The HDMI port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

Connect Storage Media to a Target Server Anywhere on the Network with Virtual Media

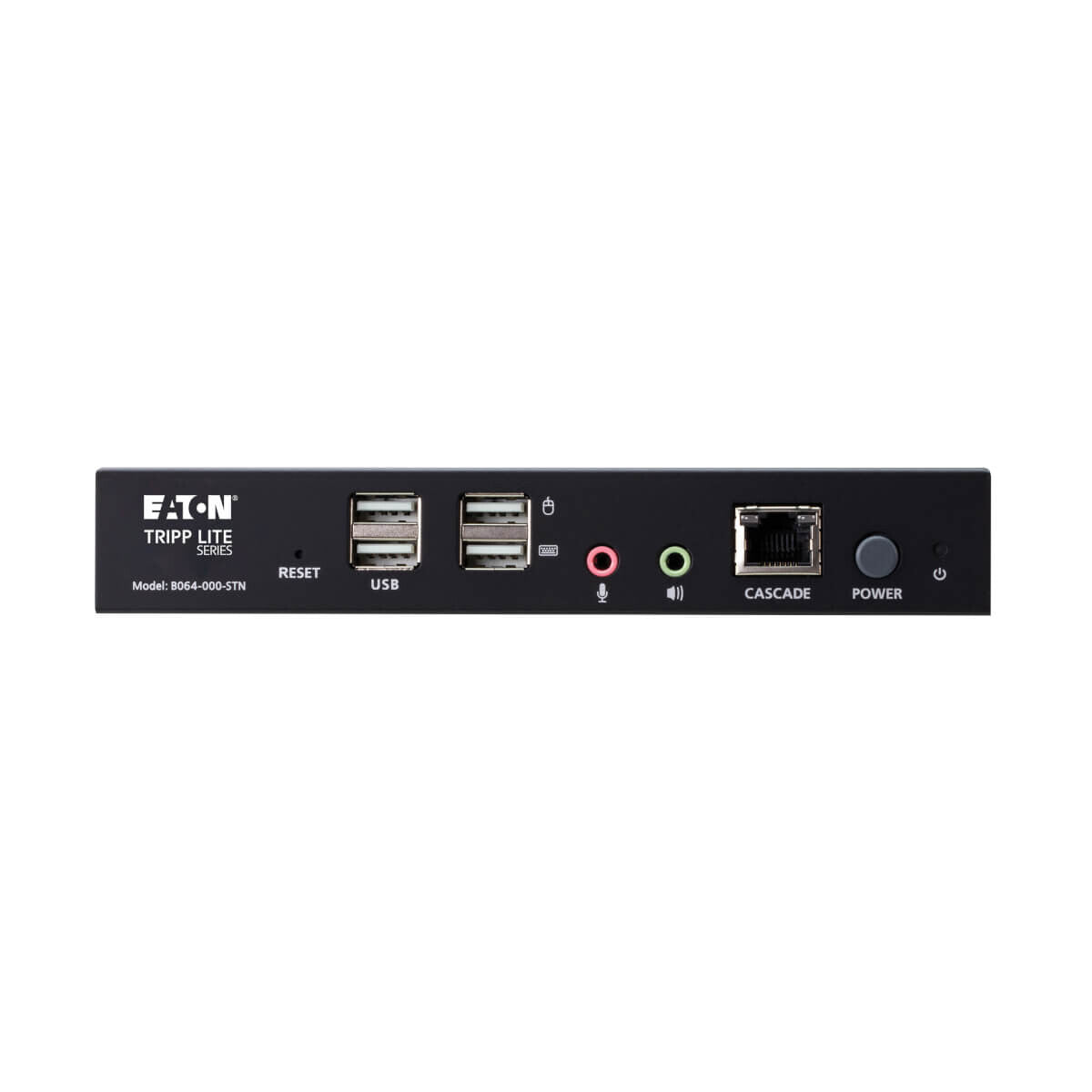

The Virtual Media feature allows a removable USB drive on a user’s system to appear and act as if it were installed on the remote server. Up to two virtual media choices can be mounted. Once mounted, you can treat the virtual media as if they really exist on the remote server. Drag and drop files to or from them, open files on the remote server for editing and save them to the redirected media. The B064-000-STN features two USB 2.0 ports for peripherals, as well as inputs for a USB keyboard and mouse and two audio jacks.

Designed for Flexible Placement and Installation

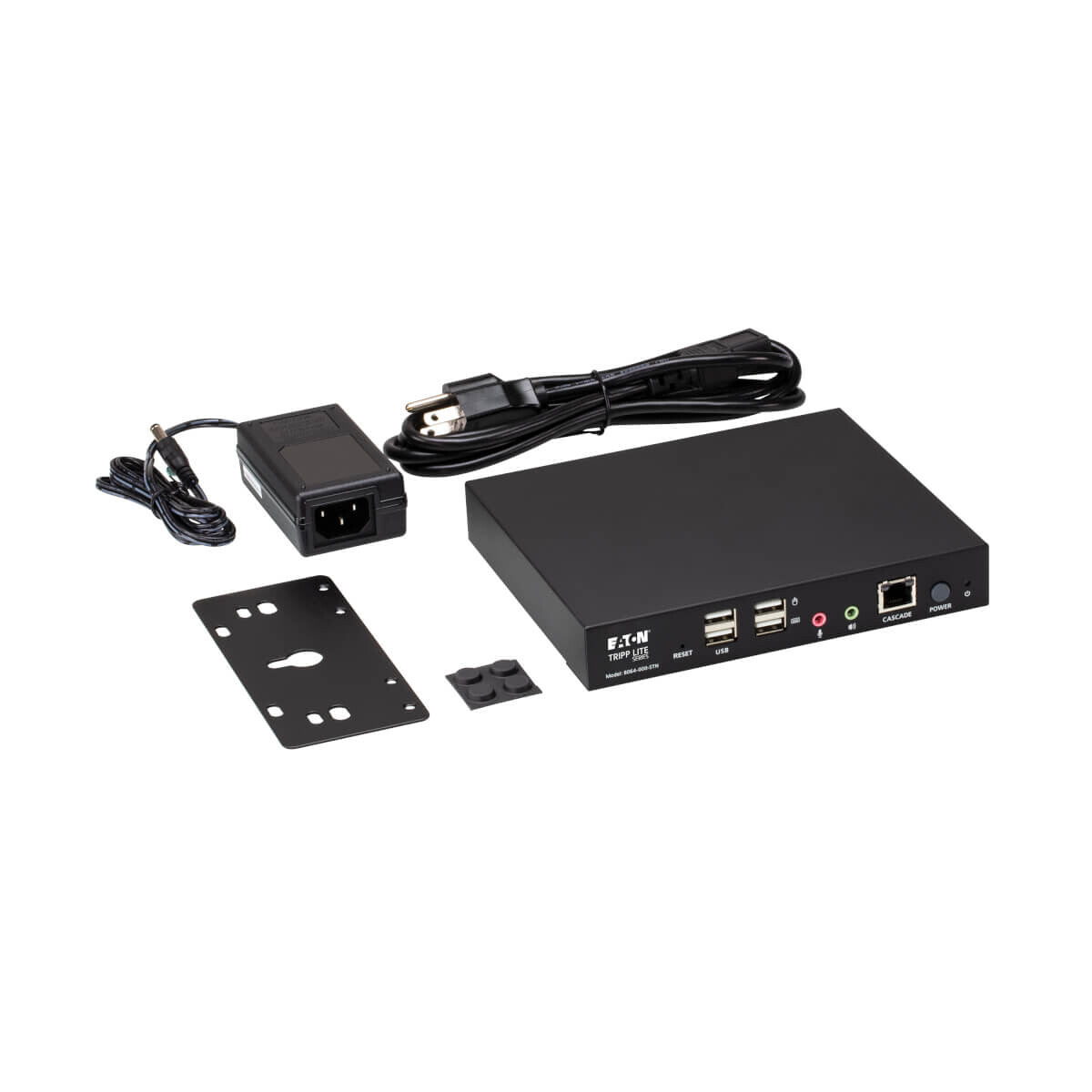

Four rubber feet are also included for resting the unit on a flat, level surface, such as a shelf, table or desk. You can also use the included mounting plate to install the console server on a wall or in a space-saving 0U rear-of-the-rack configuration. The B064-000-STN supports hot-plugging, which allows you to connect, disconnect, add or remove components without having to shut down the unit.

Compatible with B064-IPG-Series IP KVM Switches
The B064-000-STN is designed to work with the following KVMs: B064-008-01-IPG, B064-016-01-IPG, B064-016-02-IPG, B064-016-04-IPG, B064-032-01-IPG, B064-032-02-IPG, B064-032-04-IPG and B064-064-08-IPG. It supports boundless switching when cascaded with another B064-000-STN console station via user-supplied Cat5e/6 cabling.

TAA-Compliant for GSA Schedule Purchases
The B064-000-STN is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Ports & interfaces

Console portsHDMI, USB A
Console USB ports quantity4
HDMI ports quantity1
Video port typeHDMI
Mouse port typeUSB
Keyboard port typeUSB
Number of computers controlled1

Network

Cabling technology10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports1
Ethernet LANYes
Show all 24 specificationsShow fewer specifications

Performance

Maximum resolution1920 x 1200 pixels
HD typeFull HD

Design

CertificationCCC, CE, FCC, PSE, TUV, UL, cUL
Cable length1.2 m
Housing materialMetal
Product colourBlack

Display

Built-in displayNo

Power

Input current0.7 A
AC input frequency50 - 60 Hz
Input voltage100 - 240, 5 V

Operational conditions

Operating relative humidity (H-H)0 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight750 g
