TP-Link Omada MC111CS network media converter 100 Mbit/s Single-mode Black
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £9.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
£4.95 delivery
Express £9.99
Spend £21.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Work with MC112CS WDM single fiber media converter
- Extends fiber distance up to 20km (12.5 miles)

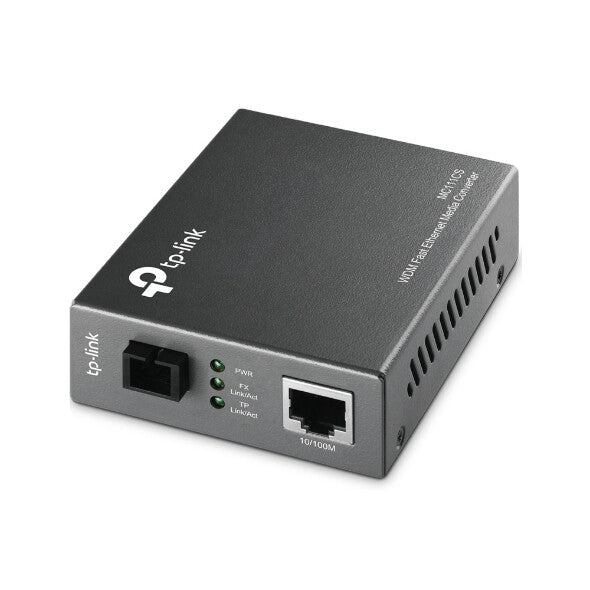

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will half cable cost for you. Designed with IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers(12.5 miles).
Specifications
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Performance
| Maximum transfer distance | 20000 m |
|---|---|
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
Show all 27 specificationsShow fewer specifications
Features
| Internal | No |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Power consumption (max) | 2.49 W |
|---|
Weight & dimensions
| Width | 95 mm |
|---|---|
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Manual | Yes |
|---|
General
| Product family | Omada |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
