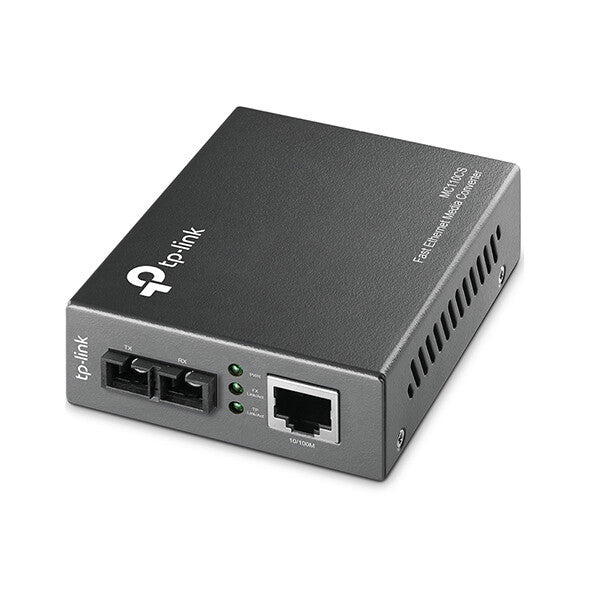

TP-Link Omada MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £8.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
£4.95 delivery
Express £9.99
Spend £24.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 12.5 miles (20km)
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).
Specifications
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-T |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5 |
Performance
| Maximum transfer distance | 12500 m |
|---|---|
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
Show all 27 specificationsShow fewer specifications
Features
| Internal | No |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Power consumption (max) | 2.4 W |
|---|
Weight & dimensions
| Width | 95 mm |
|---|---|
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
General
| Product family | Omada |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
