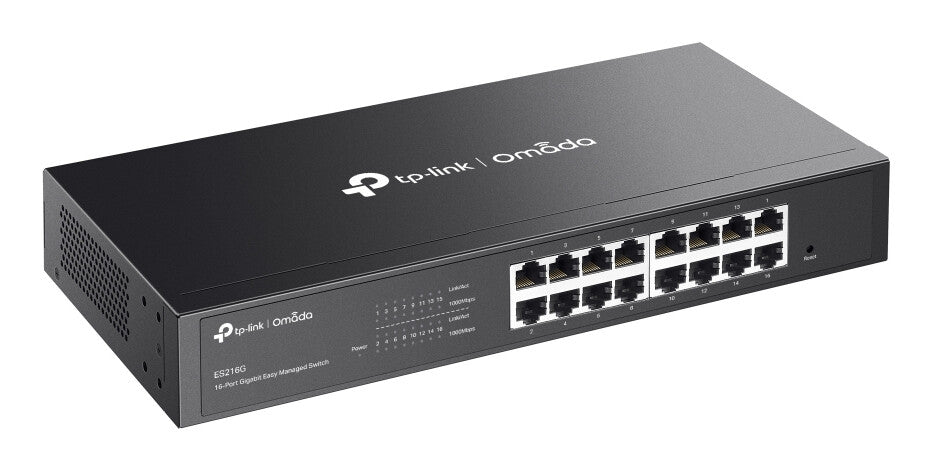

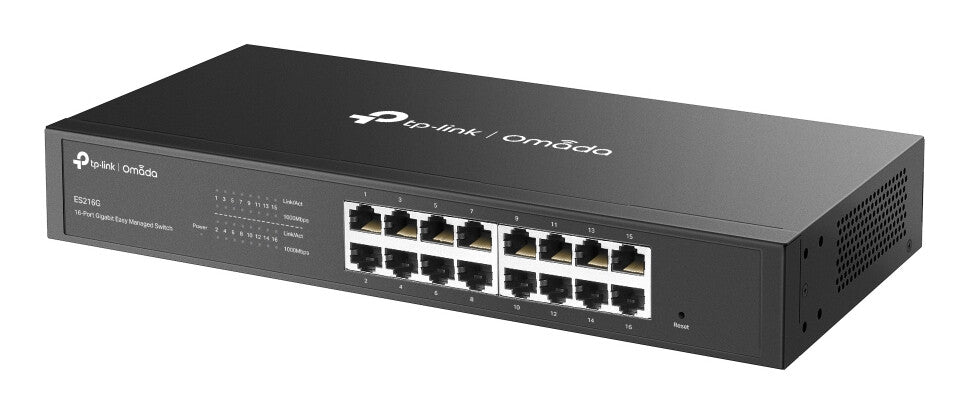

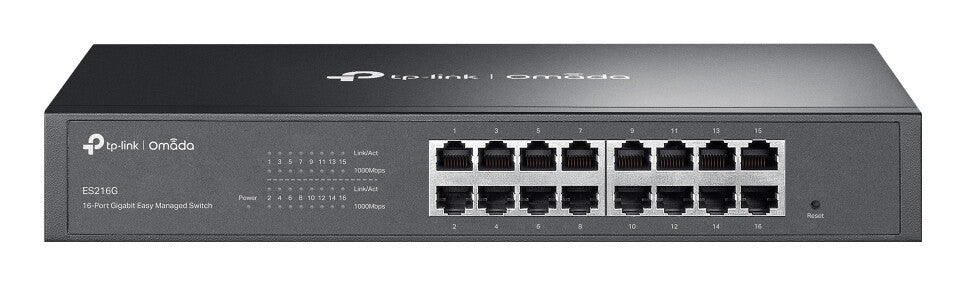

TP-Link Omada ES216G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
£87.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £29.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- 16× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
Management features
| Unified static configuration | Yes |
|---|---|
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Power connector | AC-in jack |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Show all 61 specificationsShow fewer specifications
Network
| Number of VLANs | 32 |
|---|---|
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Fast leave | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Port mirroring | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
Data transmission
| Packet buffer memory | 4 MB |
|---|---|
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 23.8 Mpps |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
Security
| Loop protection | Yes |
|---|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
Design
| LED indicators | Yes |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Mean time between failures (MTBF) | 2131140 h |
|---|---|
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
Power
| Surge protection voltage | 6 kV |
|---|---|
| Surge protection | Yes |
| Power consumption (max) | 8.4 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Heat dissipation | 28.52 BTU/h |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
Weight & dimensions
| Height | 44 mm |
|---|---|
| Depth | 140 mm |
| Width | 294 mm |
Packaging content
| Rack mount kit | Yes |
|---|---|
| User guide | Yes |
| Cables included | AC |
General
| Product family | Omada |
|---|
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
