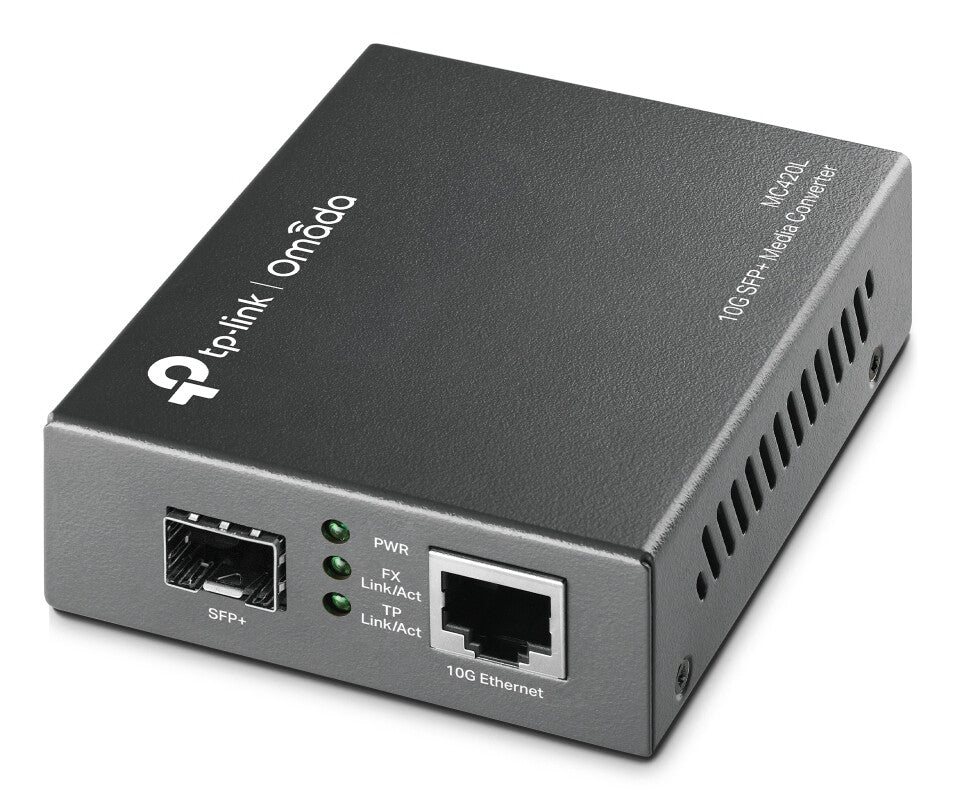

TP-Link Omada 10G Multi-Gigabit SFP Media Converter
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £28.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP
What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.
MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.
Specifications
Network
| Duplex system | Full, Half |
|---|---|
| Auto-negotiation | Yes |
| Data transfer rate | 10000 Mbit/s |
| Copper ethernet cabling technology | 2.5GBASE-T, 10GBASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z |
| Maximum data transfer rate | 10000 Mbit/s |
Performance
| Fiber mode structure | Multi-mode, Single-mode |
|---|---|
| Maximum transfer distance | 100 m |
Show all 27 specificationsShow fewer specifications
Features
| LED indicators | Activity, Link, Power |
|---|---|
| Product colour | Black |
| Internal | No |
Ports & interfaces
| Fiber optic connector | SFP+ |
|---|---|
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
Power
| Power consumption (max) | 4.12 W |
|---|
Weight & dimensions
| Height | 27 mm |
|---|---|
| Depth | 73 mm |
| Width | 94.5 mm |
Operational conditions
| Storage relative humidity (H-H) | 5 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
Packaging content
| Manual | Yes |
|---|---|
| AC adapter included | Yes |
General
| Product family | Omada |
|---|
Certificates
| Compliance certificates | RoHS, UL |
|---|
