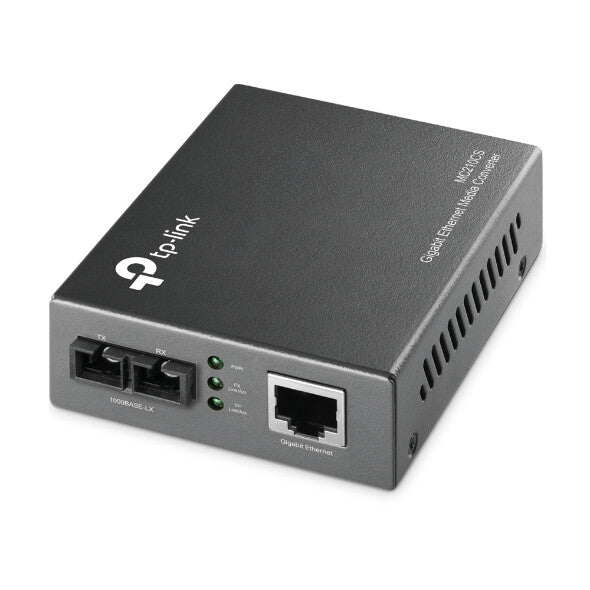

TP-Link MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black
iFrame
£26.50
Couldn't load pickup availability
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 9.3 miles (15km)
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).
| Network | |
|---|---|
| Cable types supported | Cat5, Cat5e |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 1000BASE-LX, 1000BASE-T |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Fiber mode structure | Single-mode |
| Wavelength | 1310 nm |
| Maximum transfer distance | 15000 m |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (max) | 1.8 W |
| Weight & dimensions | |
|---|---|
| Height | 27 mm |
| Depth | 73 mm |
| Width | 95 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
