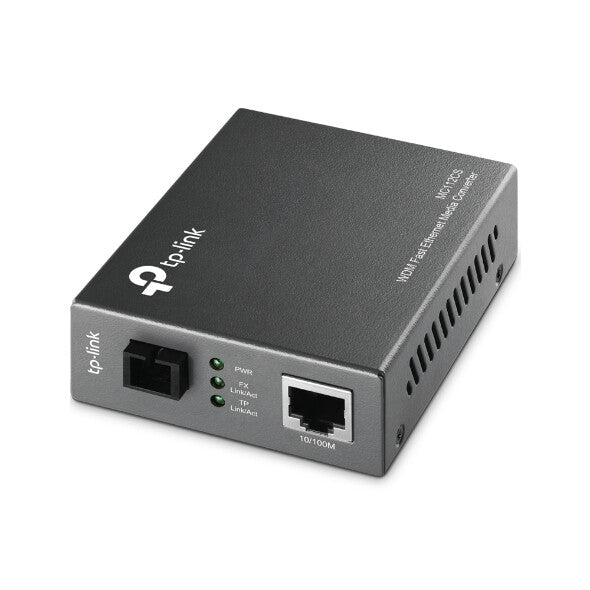

TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £9.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
£4.95 delivery
Express £9.99
Spend £21.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Work with MC112CS WDM single fiber media converter
- Extends fiber distance up to 20km (12.5 miles)
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).
Specifications
Network
| Cable types supported | Cat3, Cat4, Cat5 |
|---|---|
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-FX, 100BASE-TX |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum data transfer rate | 100 Mbit/s |
Performance
| Fiber mode structure | Single-mode |
|---|---|
| Wavelength-division multiplexing (WDM) | Yes |
| Maximum transfer distance | 20000 m |
Show all 26 specificationsShow fewer specifications
Features
| LED indicators | Yes |
|---|---|
| Product colour | Black |
| Internal | No |
Ports & interfaces
| Fiber optic connector | SC |
|---|---|
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
Power
| Power consumption (max) | 2.41 W |
|---|
Weight & dimensions
| Height | 27 mm |
|---|---|
| Depth | 73 mm |
| Width | 95 mm |
Operational conditions
| Storage relative humidity (H-H) | 5 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Compliance certificates | RoHS |
|---|
