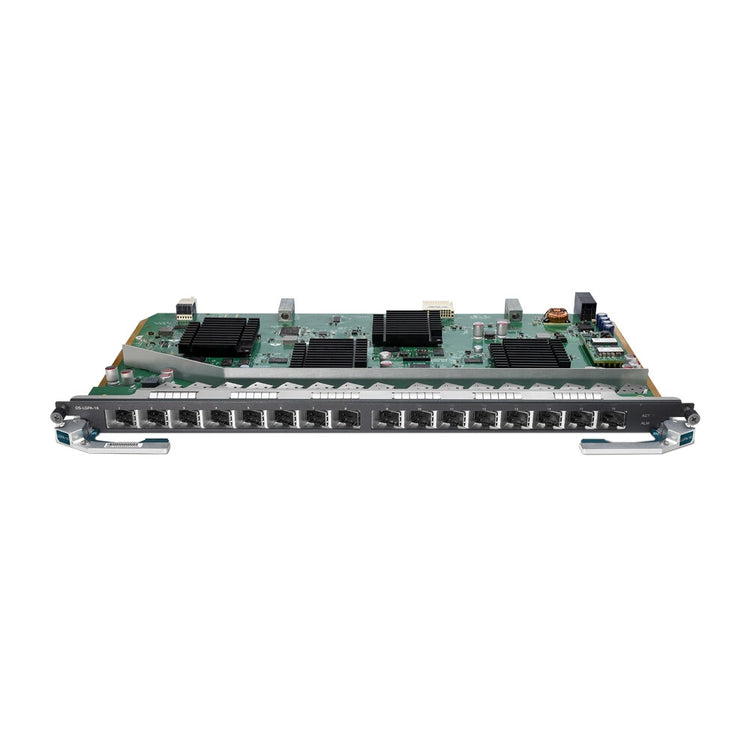

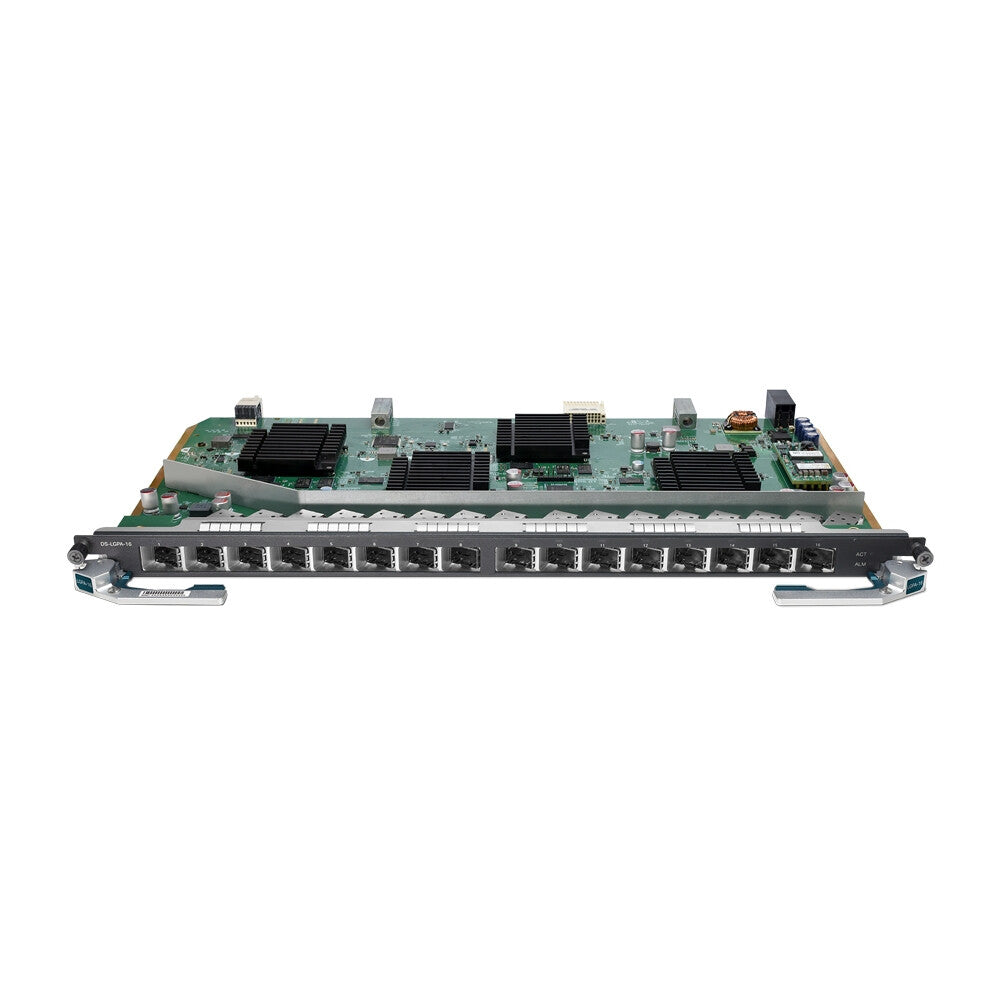

TP-Link DeltaStream DS-LGPA-16 optical line terminal (OLT)
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £821.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 16× GPON Ports: Delivers high-speed transition rate up to 2.488 Gbps downstream and 1.244 Gbps upstream (per port).*
- High Scalability: Supports 1:128 splitting ratio for GPON services (per port)
- Flexible Deployment: Comaptible with TP-Link's Chassis optical line terminals and supports hot swapping for seamless upgrading
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI
Specifications
Features
| Access Control List (ACL) | Yes |
|---|---|
| Maximum operating distance (GPON) | 20000 m |
| GPON split ratio (max) | 1:128 |
| Voice VLAN | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| IGMP snooping | Yes |
| DHCP relay | Yes |
| DHCP server | Yes |
| Static route | Yes |
| Switch layer | L2/L3 |
Ports & interfaces
| GPON ports quantity | 16 |
|---|---|
| Ethernet LAN (RJ-45) ports | 16 |
| Networking standards | IEEE 802.1p, IEEE 802.1x |
Show all 26 specificationsShow fewer specifications
Power
| Power consumption (max) | 56.2 W |
|---|---|
| DC voltage range | -38.4 - -57.6 V |
Sustainability
| Sustainability compliance | Yes |
|---|
Operational conditions
| Storage relative humidity (H-H) | 5 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC) |
|---|
Weight & dimensions
| Height | 22.5 mm |
|---|---|
| Depth | 257.5 mm |
| Width | 390.8 mm |
General
| Product family | DeltaStream |
|---|
