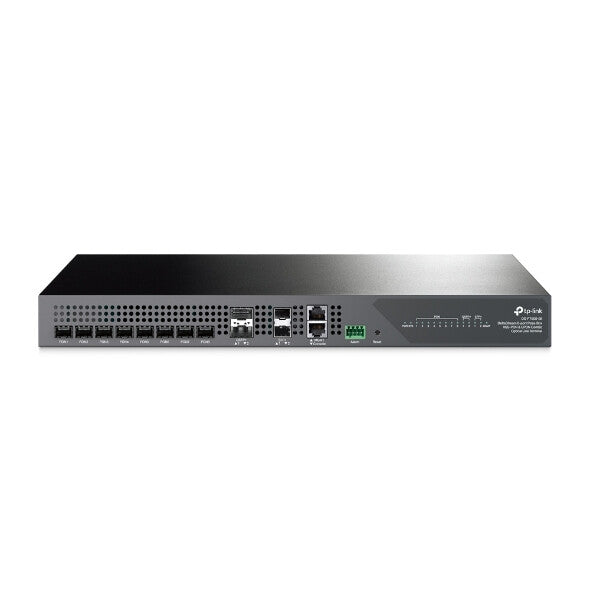

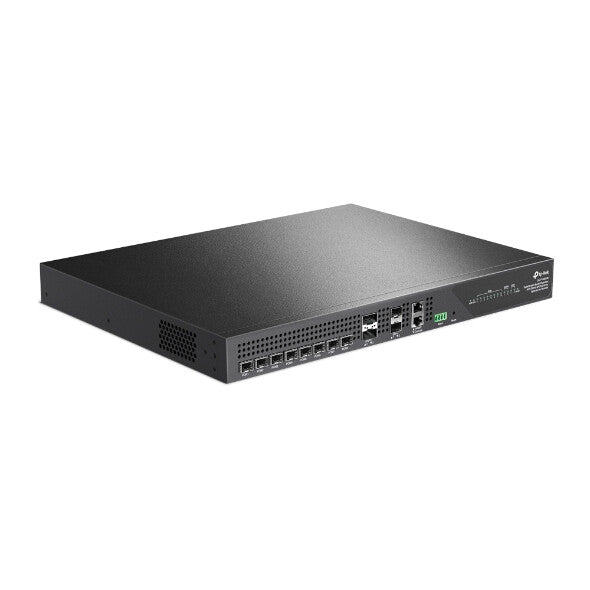

TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal
Couldn't load pickup availability
- 8× PON Ports: 8× XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery
- High Scalability: Supports 1:128 splitting ratio for GPON services and 1:256 for XGS-PON
- High-Speed Uplink Ports: 2× 40G QSFP+ ports and 2× 10G SFP+ ports offer high-bandwidth uplink connectivity
- Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI
The DS-P7500-08 is a DeltaStream 8-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 featuresdesigned to meet a wide range of business needs. The pizza-box OLTsupports a higher number of ONUs and its dual power supply redundancydesign further improves the stability of the OLT network.
High Split Ratio for High Capacity
Support 1:256(XGS-PON) & 1:128(GPON) splitting ratio forevery port - up to 3072ONTs by one device.

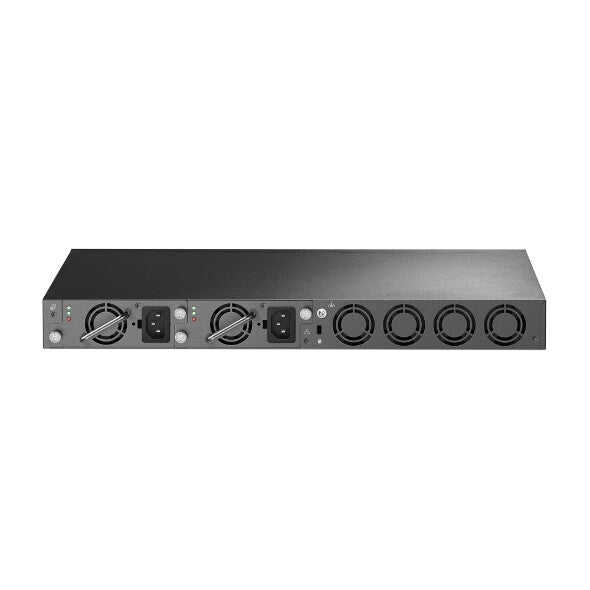

Redundant Dual Power Supplies
Carrier-class reliability with redundant dual power supplies supporting AC, DC ormixed power input.
Compact Sizefor Flexible Deployment
19 inch rack mount sizeis flexible and easy to deploy, suitable for different application scenarios.
Centralized Management
Makes maintenance easier with remote batch configuration and updates via DeltaStream PON Management System (DPMS), SNMP,CLI, and WEB UI.
| Features | |
|---|---|
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Access Control List (ACL) | Yes |
| Maximum operating distance (GPON) | 20000 m |
| GPON split ratio (max) | 1:256 |
| Quality of Service (QoS) support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| IGMP snooping | Yes |
| DHCP relay | Yes |
| DHCP server | Yes |
| Static route | Yes |
| Ports & interfaces | |
|---|---|
| SFP/SFP+ slots quantity | 4 |
| GPON ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Upstream ports | 10G Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1p, IEEE 802.1x |
| Power | |
|---|---|
| Power consumption (max) | 109.2 W |
| DC voltage range | 38.4 - 72 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 330 mm |
| Width | 440 mm |
| General | |
|---|---|
| Product family | DeltaStream |
