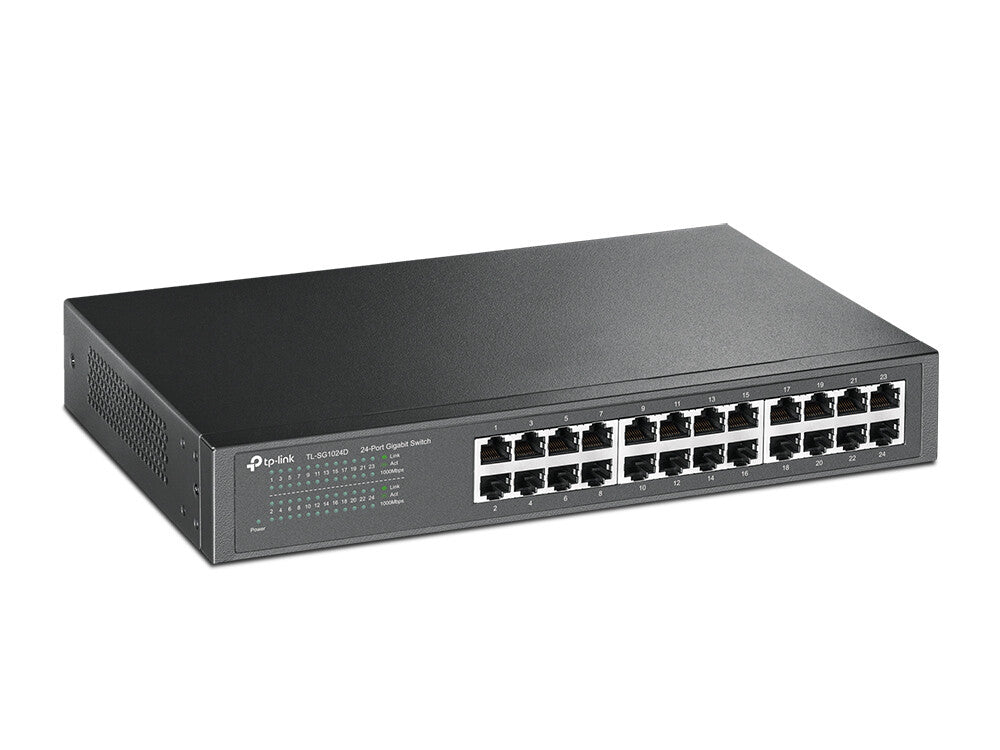

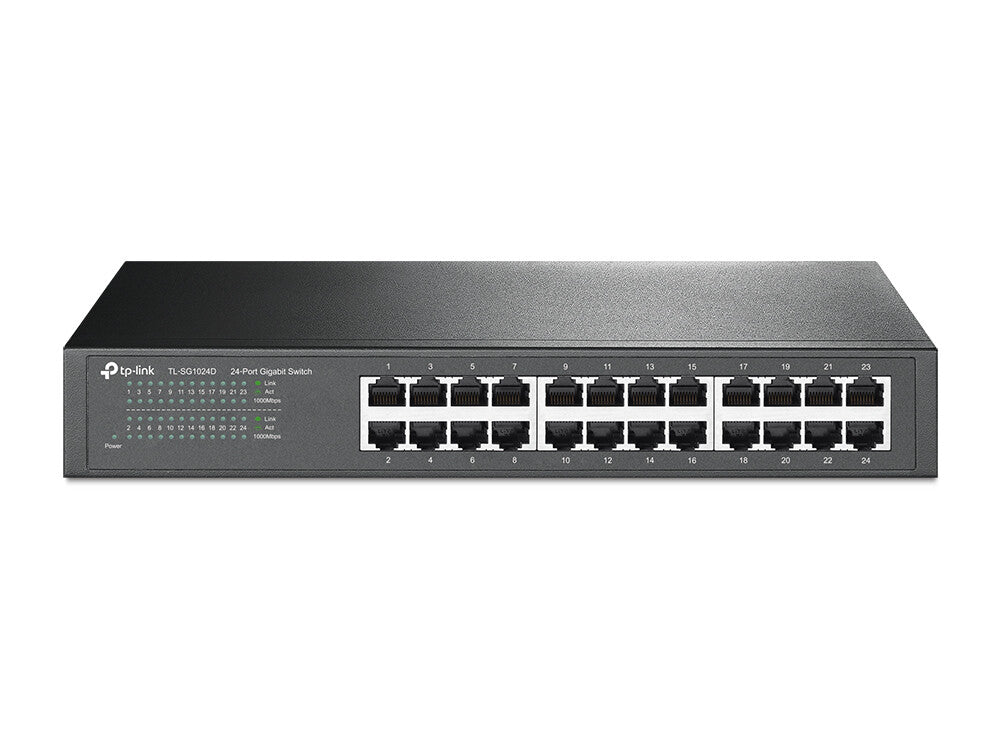

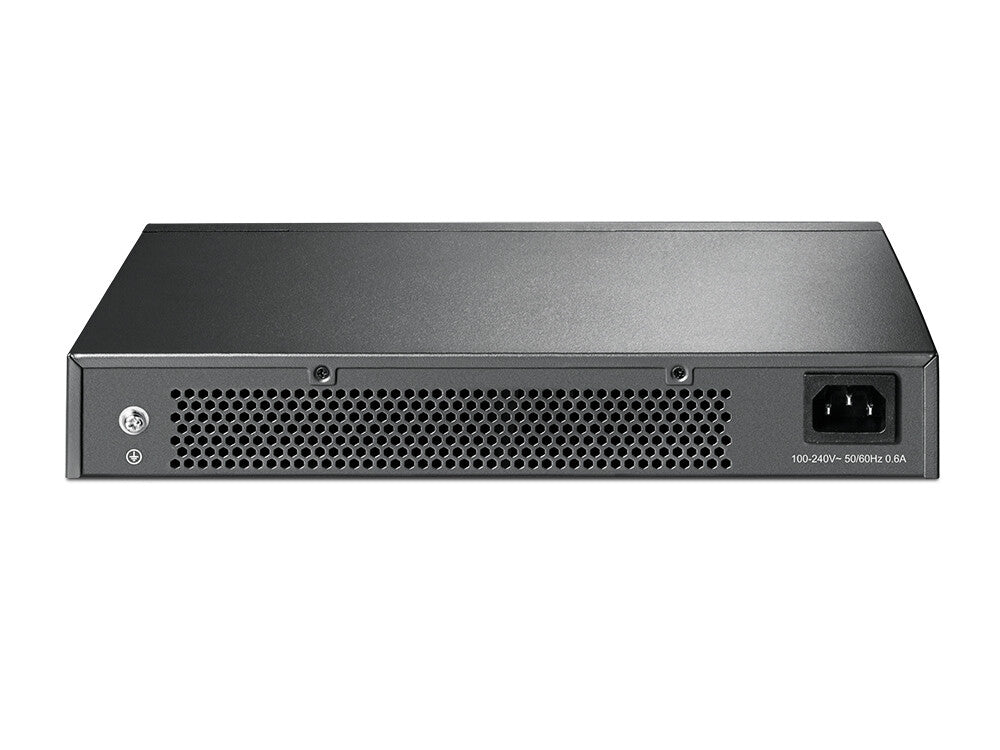

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £31.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
What This Product Does
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Power connector | DC-in jack |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Show all 50 specificationsShow fewer specifications
Network
| Flow control support | Yes |
|---|---|
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | No |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Data transmission
| Jumbo frames | 10000 |
|---|---|
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 35.7 Mpps |
| Switching capacity | 48 Gbit/s |
| Supported data transfer rates | 10/100/100 Mbps |
| MAC address table | 8000 entries |
Protocols
| Supported network protocols | CSMA/CD, TCP/IP |
|---|
Design
| LED indicators | Yes |
|---|---|
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
Power
| Power consumption (max) | 13.62 W |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Other features
| Connectivity LEDs | Y |
|---|---|
| Networking features | Gigabit Ethernet |
| Power requirements | 100 - 240V, 50/60Hz |
| Bandwidth | 48 Gbit/s |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 294 x 180 x 44 mm |
Operational conditions
| Heat dissipation | 46.44 BTU/h |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Height | 44 mm |
|---|---|
| Depth | 180 mm |
| Width | 294 mm |
Packaging content
| Rack mount kit | Yes |
|---|---|
| User guide | Yes |
| Cables included | AC |
Certificates
| Certification | FCC, CE, RoHS |
|---|
