Home TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch

TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch

TP-LINK
Sale
iFrame
×
from £30.99
/per

Stock Available: 128
  • 16 10/100M RJ45 ports
  • Innovative energy-efficient technology saves power up to 75%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 13-inch steel case

What This Product Does

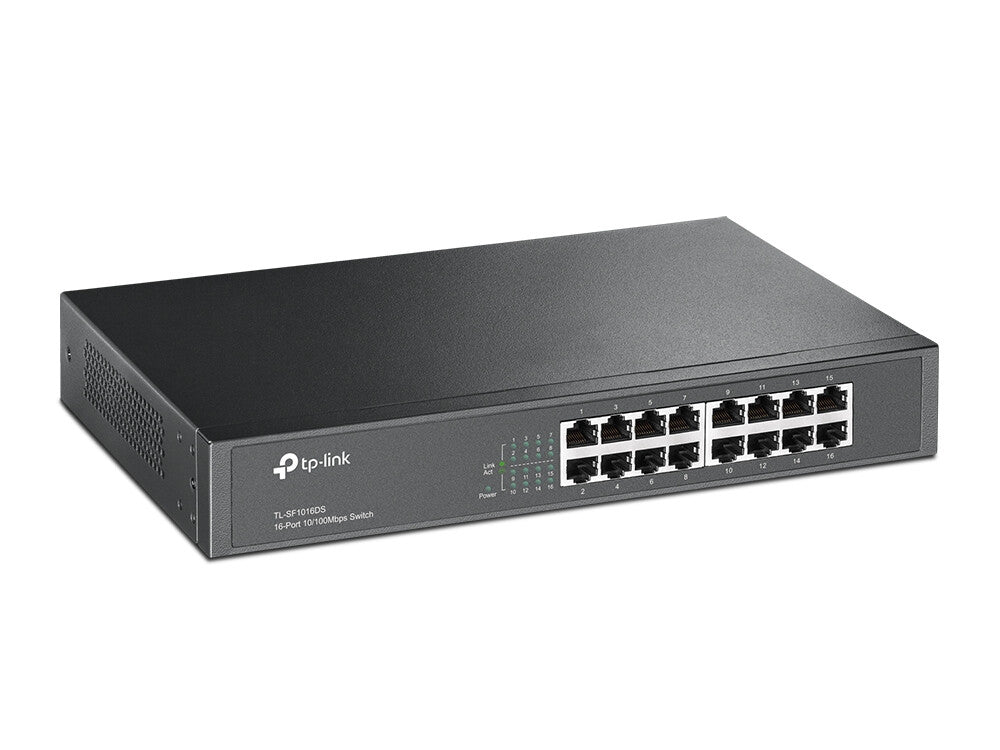

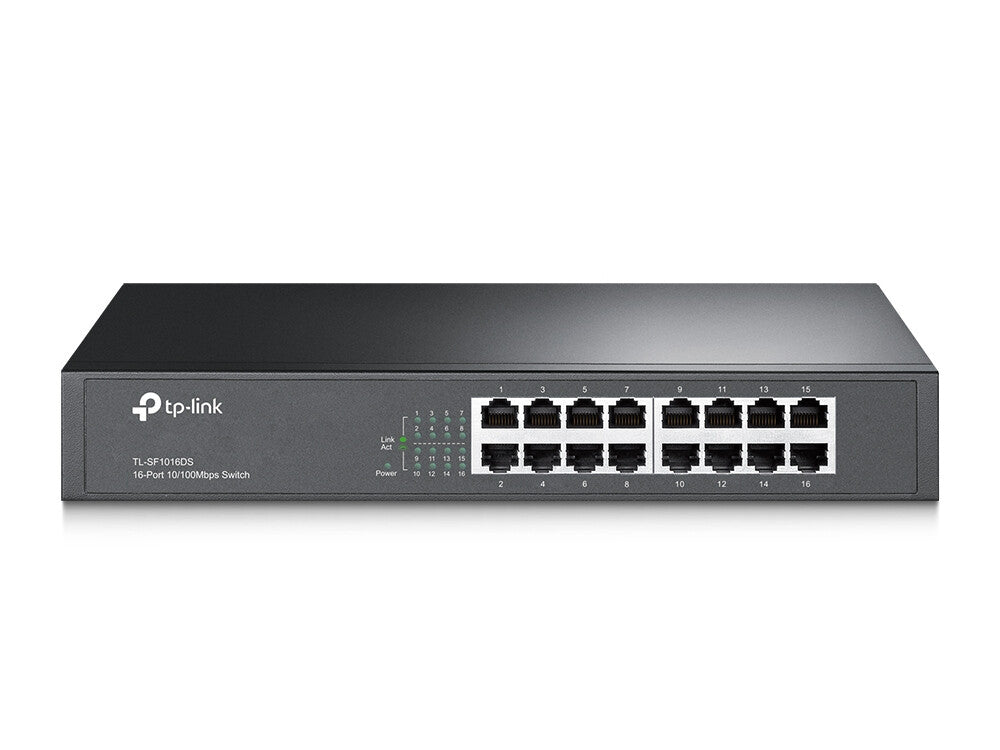

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 16
Network
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Half duplex Yes
Full duplex Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
Networking standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 2 MB
Jumbo frames 2000
Jumbo frames support Yes
Maximum data transfer rate 0.1 Gbit/s
Store-and-forward Yes
Forwarding rate 2.38 Mpps
Switching capacity 3.2 Gbit/s
Supported data transfer rates 10/100 Mbps
MAC address table 8000 entries
Security
MAC address filtering Yes
Protocols
Supported network protocols CSMA/CD, TCP/IP
Design
LED indicators Link, Power
Product colour Black
Rack mounting Yes
Power
Power consumption (max) 2.06 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Other features
Wi-Fi No
Power requirements 100 - 240VAC, 50/60Hz
Connectivity technology Wired
Dimensions (WxDxH) 294 x 180 x 44 mm
Operational conditions
Heat dissipation 2.06 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 44 mm
Depth 180 mm
Width 294 mm
Packaging data
Package height 80 mm
Package depth 250 mm
Package width 400 mm
Certificates
Certification FCC, CE, RoHS
Logistics data
Harmonized System (HS) code 85176990
  • leaflet
  • Installation Guide
