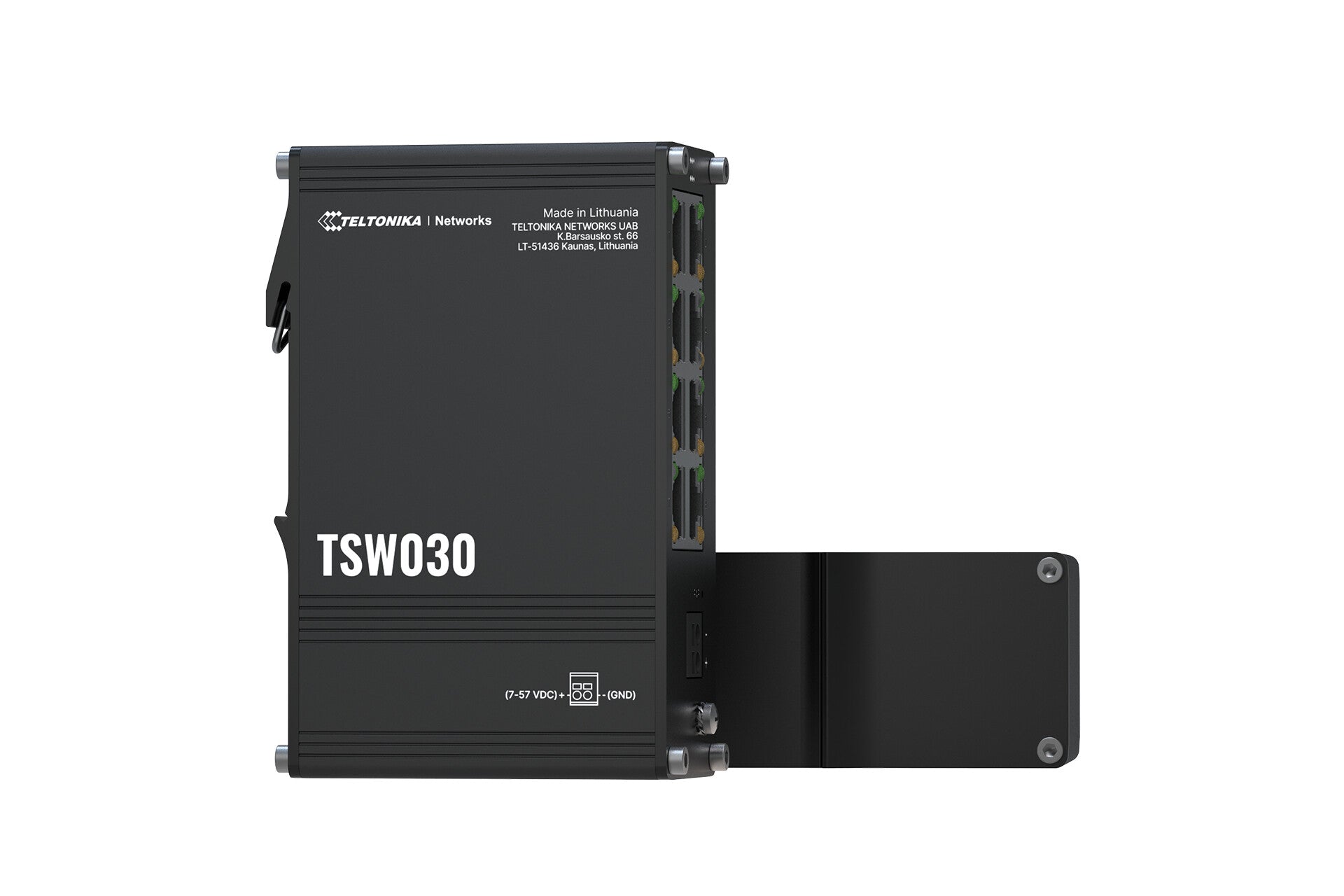

Teltonika Switch TSW030 8x RJ45 100Mb/s, IP30
iFrame
£48.99
Couldn't load pickup availability

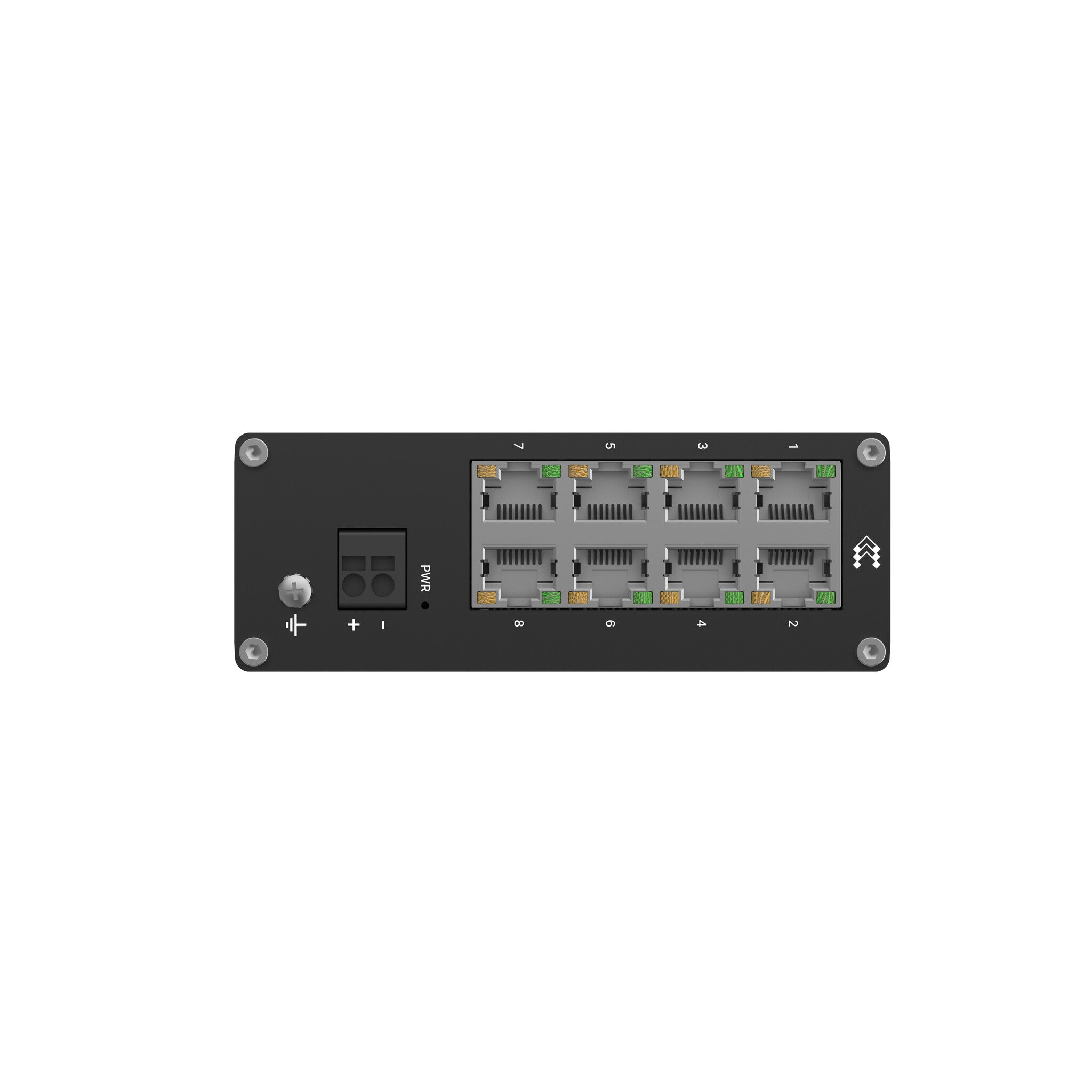

- 2-PIN POWER INPUT
- Simple and suitable for industrial applications
- LOW POWER CONSUMPTION
- Up to 0.5 W when idle, up to 1.5 W maximum

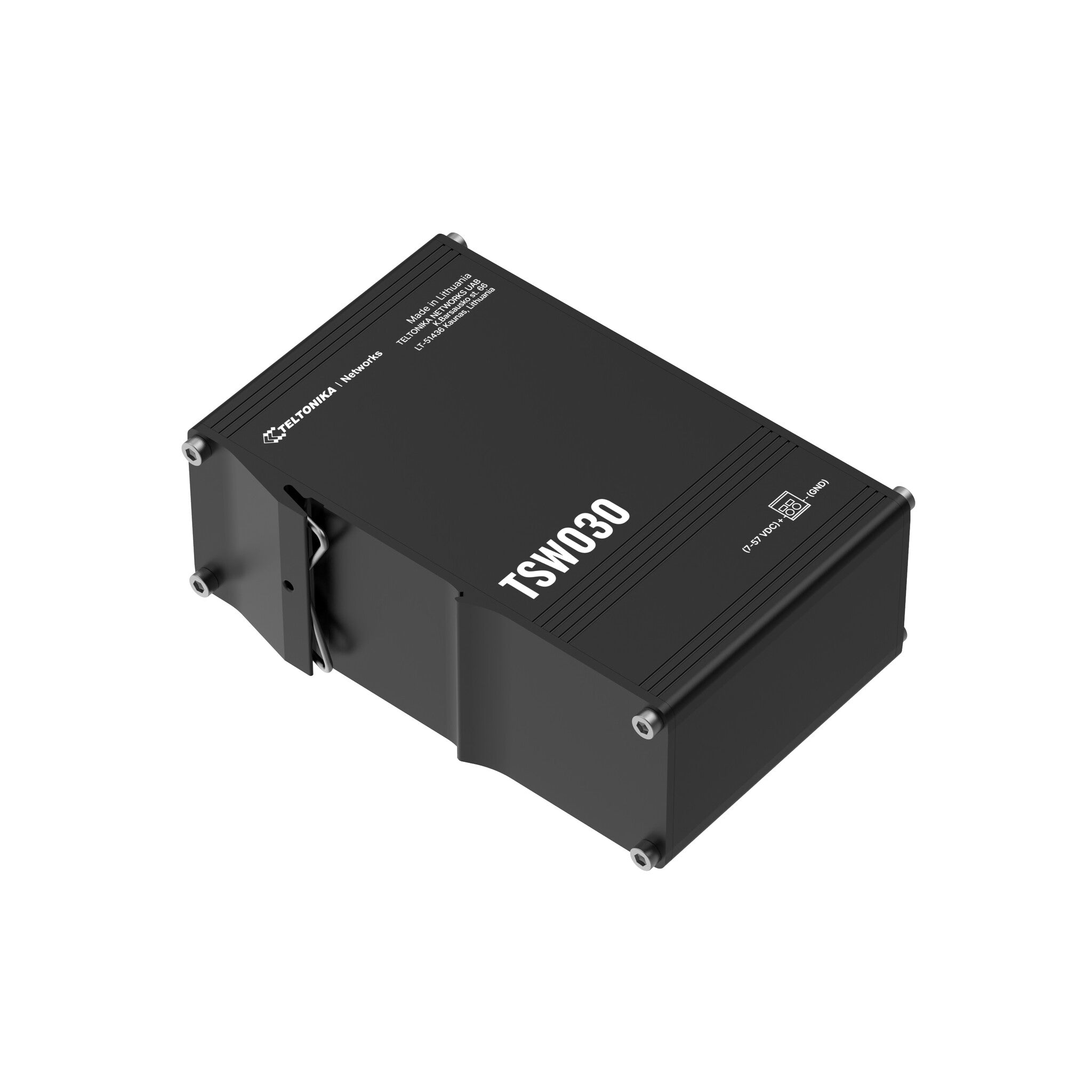

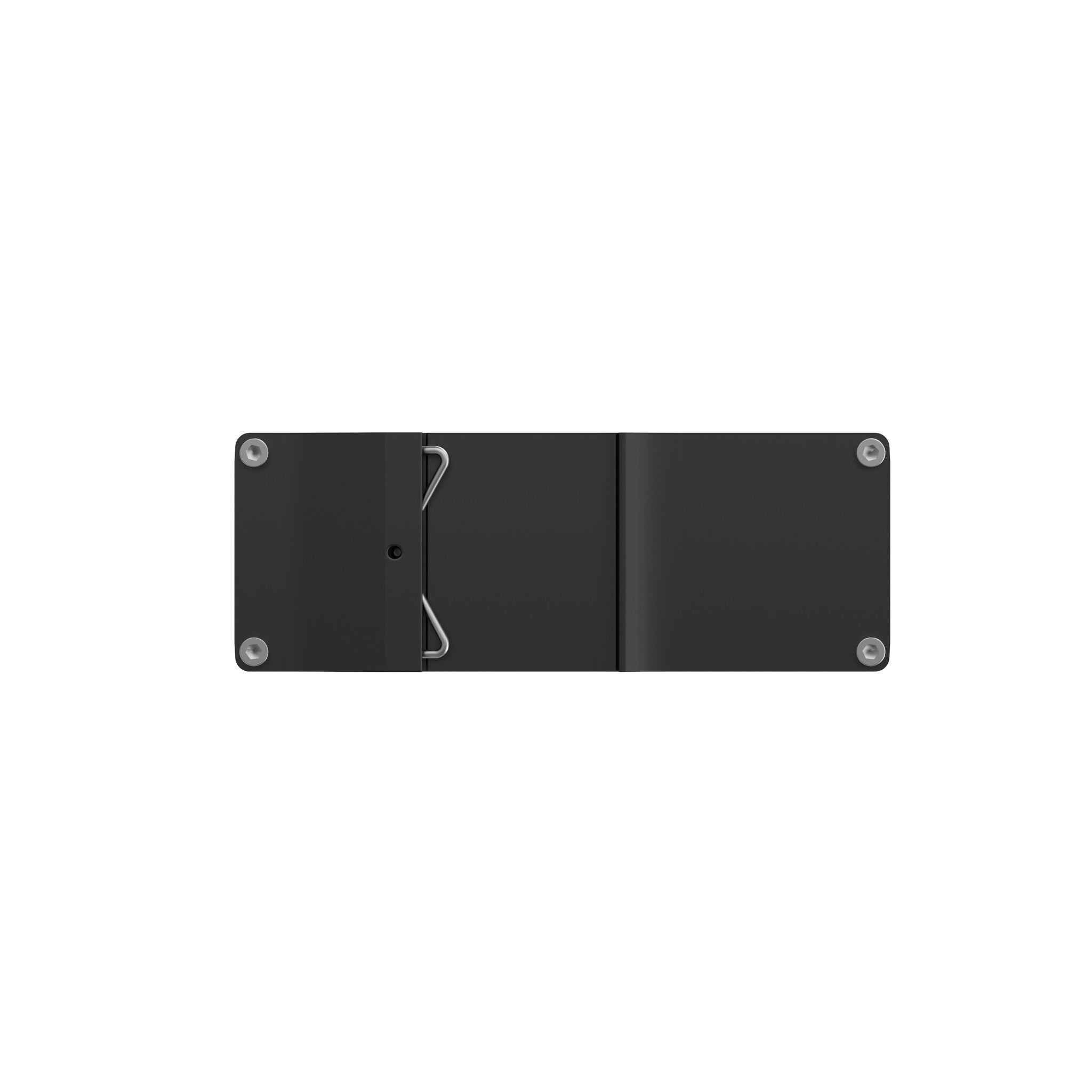

- INTEGRATED DIN RAIL
- Easy mounting for plug-and-play deployment

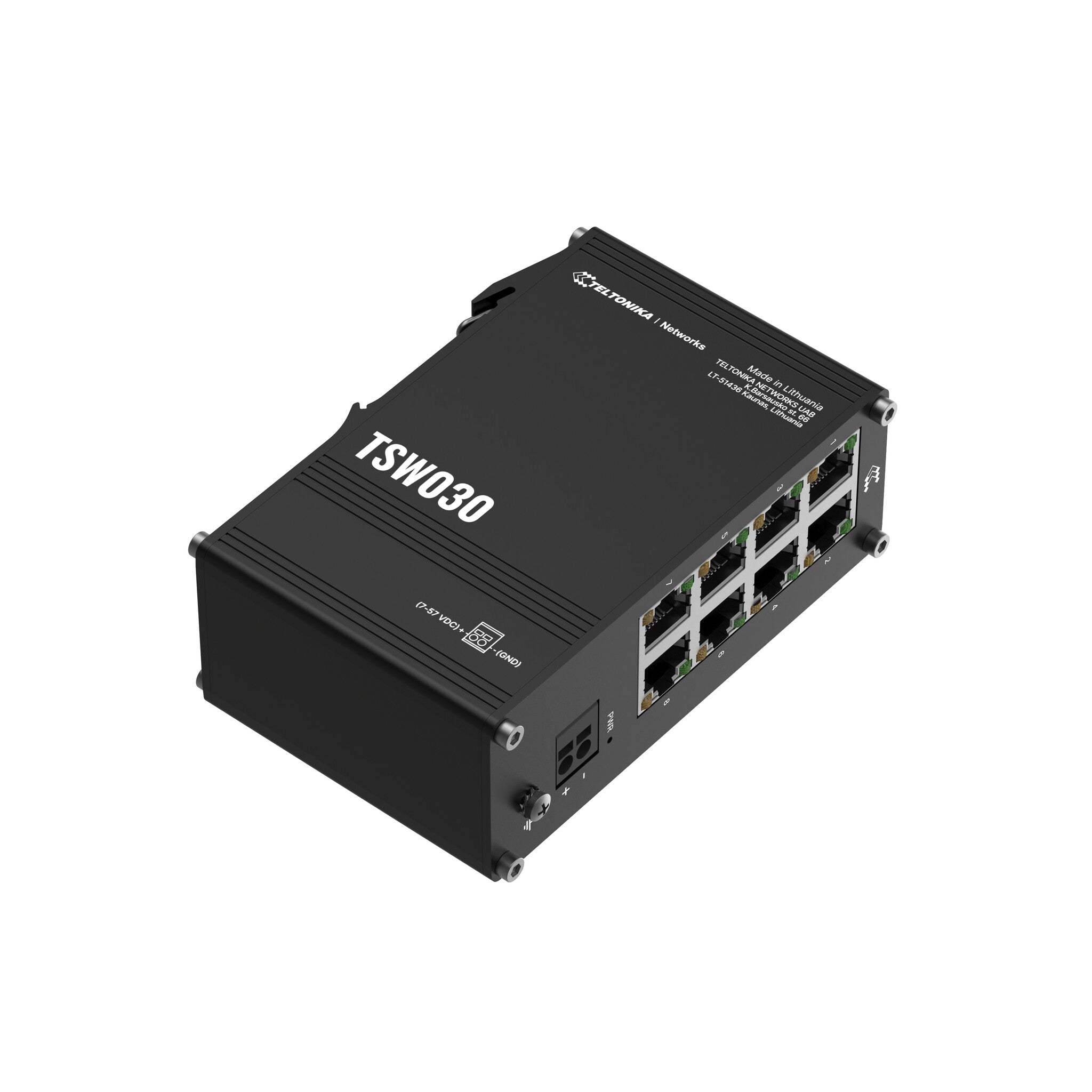

- 8 X RJ45 PORTS
- Eight 10/100 Mbps Ethernet ports
The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Web-based management | No |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transmission | |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | LAN, Power, Status |
| DIN rail mounting | Yes |
| Power | |
|---|---|
| Power source | DC |
| Power supply included | No |
| DC input voltage | 7 - 57 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
|---|---|
| Certification | CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB Standards EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; |
