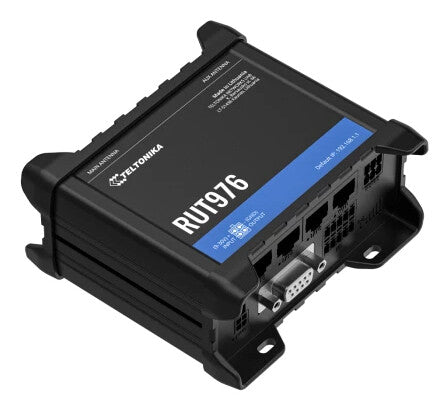

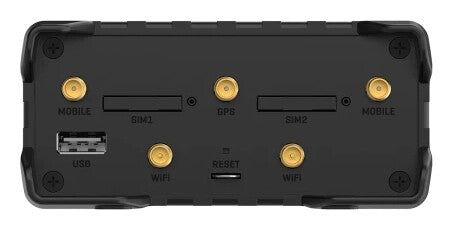

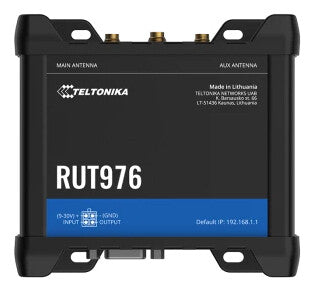

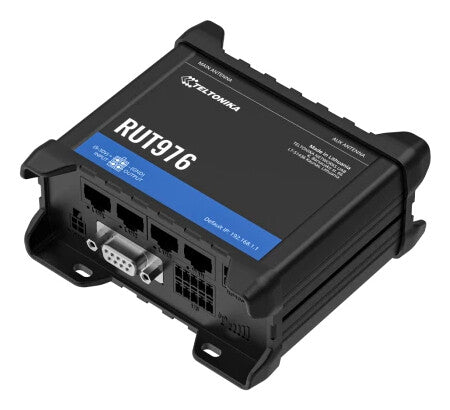

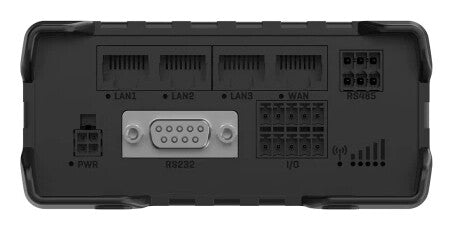

Teltonika RUT976 Cellular network router
iFrame
£358.99
Couldn't load pickup availability
- Industrial Cellular network router
- Ethernet LAN Wi-Fi
- 4G standard: LTE
- SMA/RP-SMA
- GPS (satellite) GLONASS BeiDou Galileo
- Black
The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment
| Design | |
|---|---|
| Device type | Cellular network router |
| Product colour | Black |
| Mounting | DIN-rail/Wall mounting |
| Market positioning | Industrial |
| Reset button | Yes |
| LED indicators | Yes |
| Ethernet LAN features | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| DHCP server | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN |
| Wireless LAN features | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile network | |
|---|---|
| Data network | 4G, 5G |
| 4G standard | LTE |
| 5G standard | Sub6 SA |
| Number of SIM cards | 2 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Security | |
|---|---|
| Security algorithms | WPA2-Enterprise |
| Firewall | Yes |
| Port forwarding | Yes |
| GPS Performance | |
|---|---|
| BeiDou | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Quasi-Zenith Satellite System (QZSS) | Yes |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Mediatek |
| RAM capacity | 0.128 GB |
| RAM type | DDR2 |
| Internal storage capacity | 0.032 GB |
| Operating system installed | RutOS |
| GPS (satellite) | Yes |
| Antenna connector type | SMA/RP-SMA |
| Antennas quantity | 5 |
| Power | |
|---|---|
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 100 mm |
| Height | 50 mm |
| Weight | 295 g |
