Teltonika

iFrame
×
£40.99
Stock Available: 10

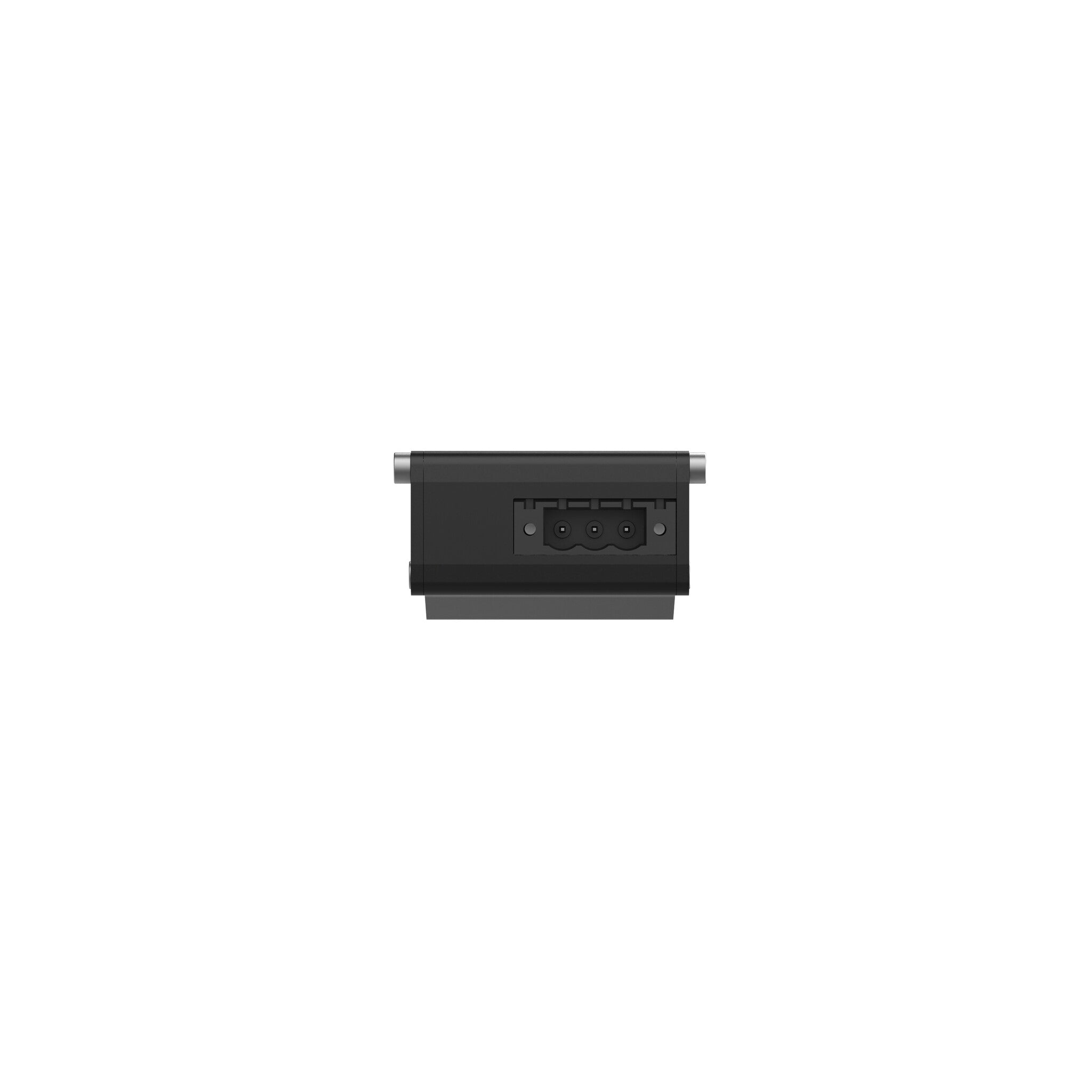

  • 3-PIN POWER INPUT
  • Flexible and tailor-made for industrial use
  • FLAT & COMPACT
  • Flat and compact design weighing only 142 g

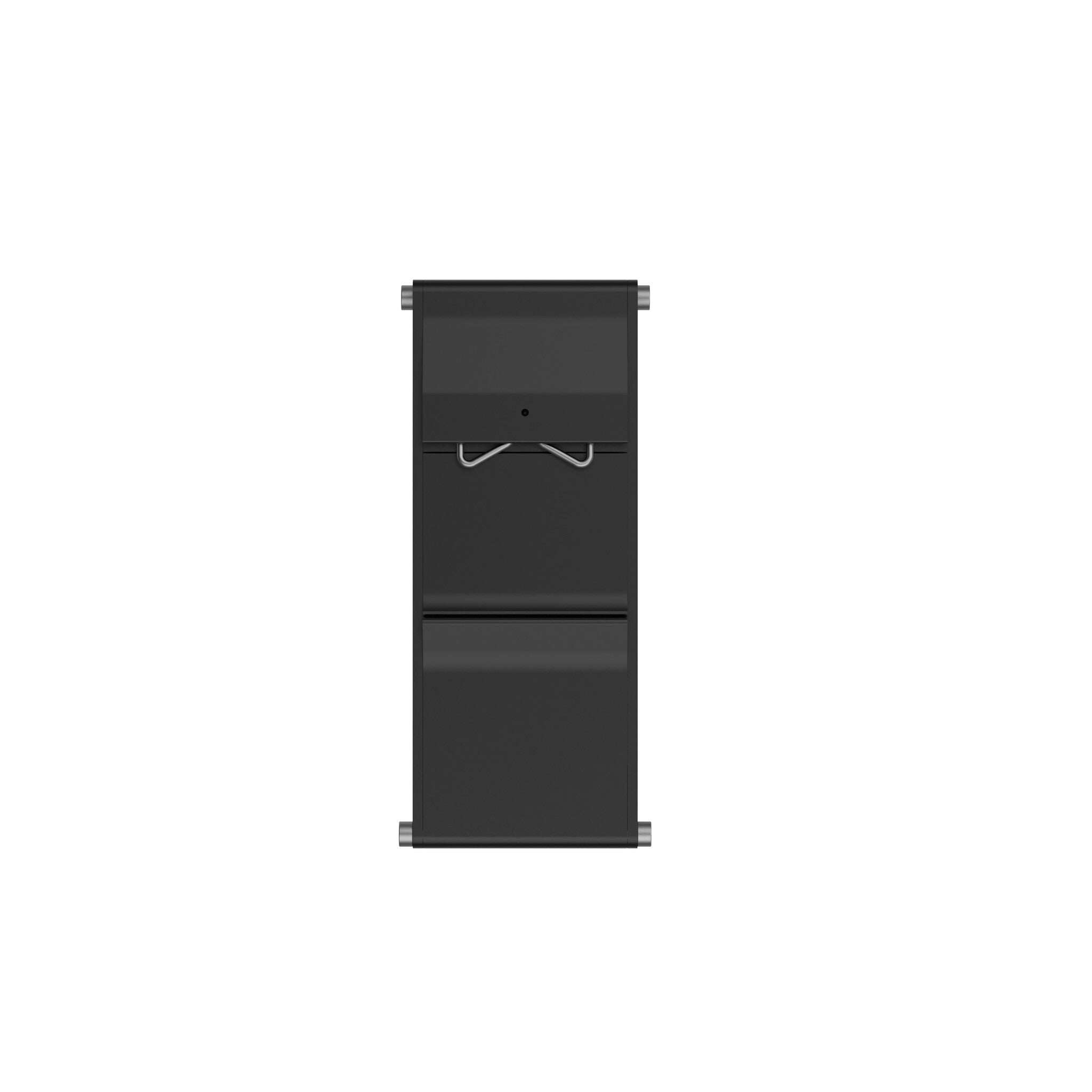

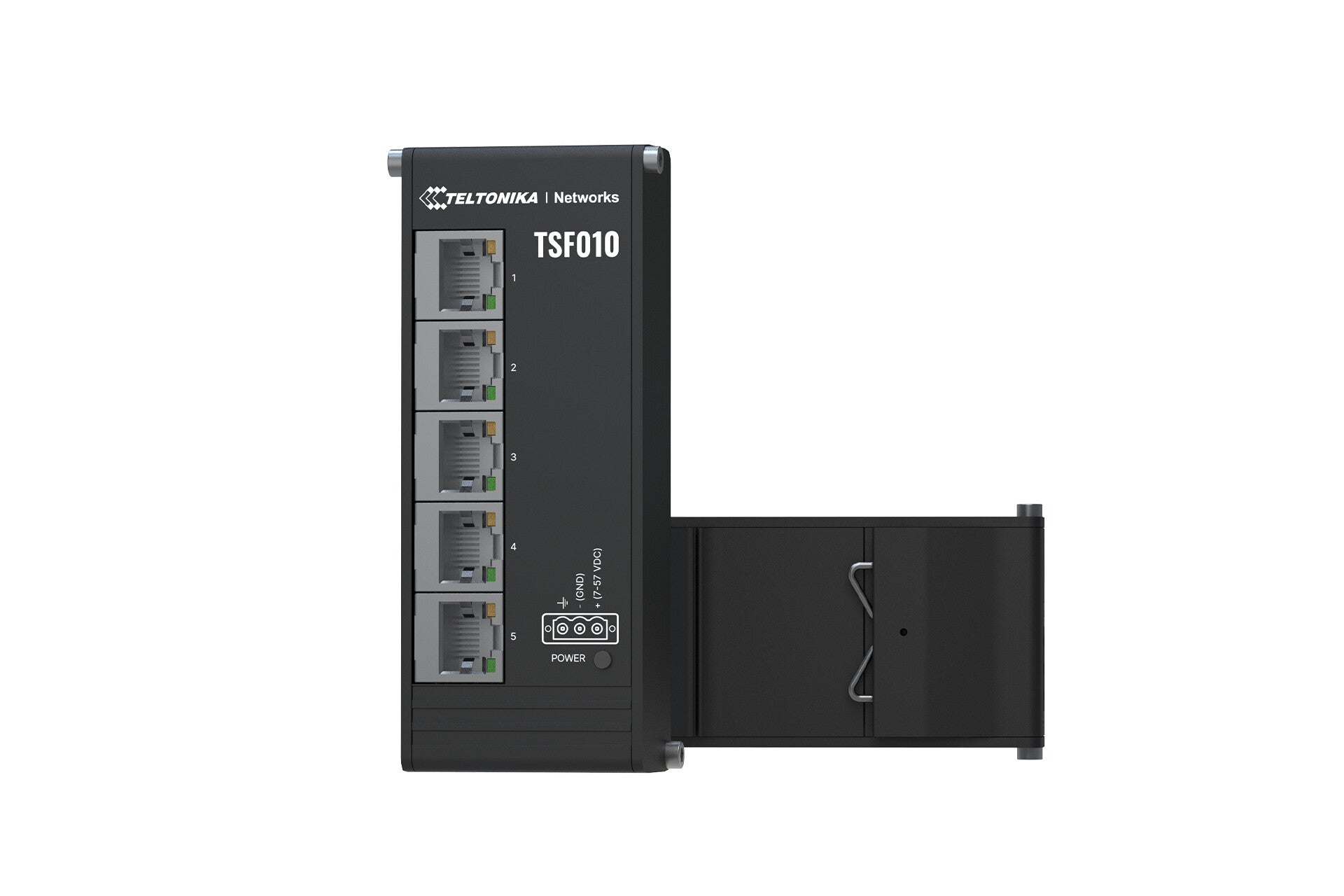

  • INTEGRATED DIN RAIL BRACKET
  • Easy mounting for plug-and-play deployment
  • 7-57 VDC
  • Suitable voltage range for industrial applications

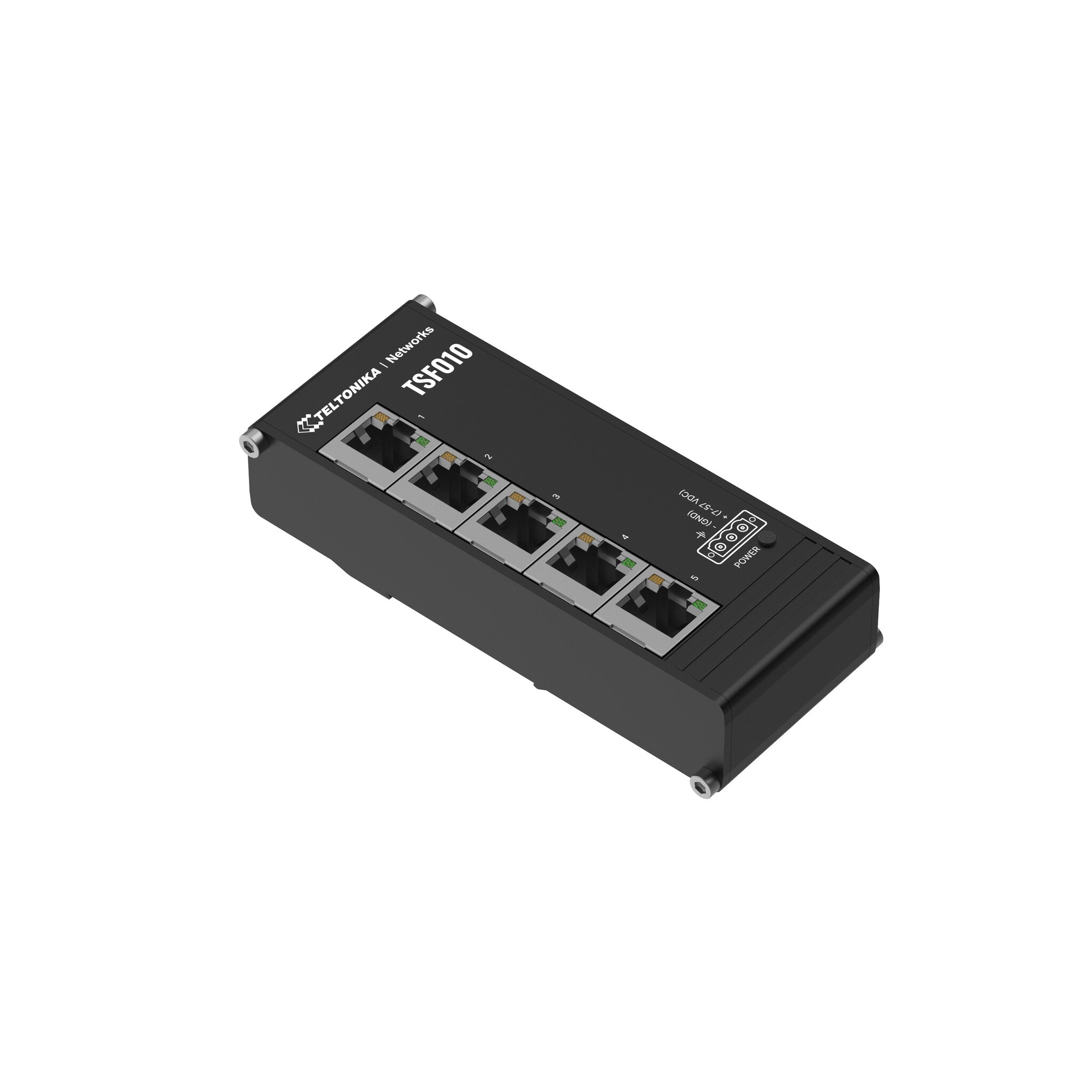

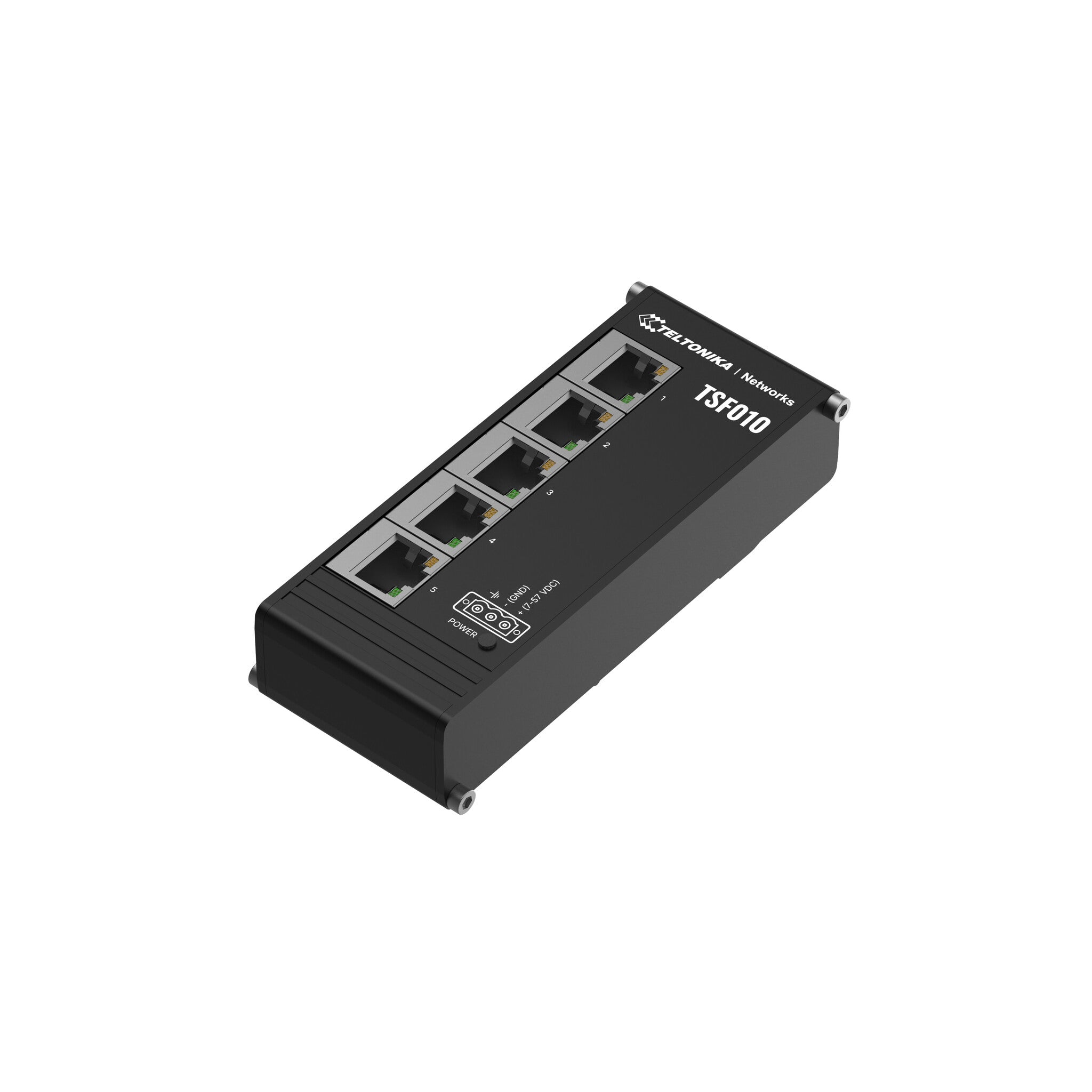

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity 5
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support No
Full duplex Yes
Auto MDI/MDI-X Yes
Data transmission
MAC address table 2048 entries
Switching capacity 10 Gbit/s
Jumbo frames support Yes
Jumbo frames 9216
Design
Rack mounting No
Stackable No
Form factor DIN rail
Product colour Black
Housing material Aluminium
DIN rail mounting Yes
International Protection (IP) code IP30
Power
Power source DC
Power supply included No
Input voltage 7 - 57 V
Power consumption (typical) 1 W
Power consumption (max) 1.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 113 mm
Depth 50 mm
Height 28 mm
Weight 142 g
