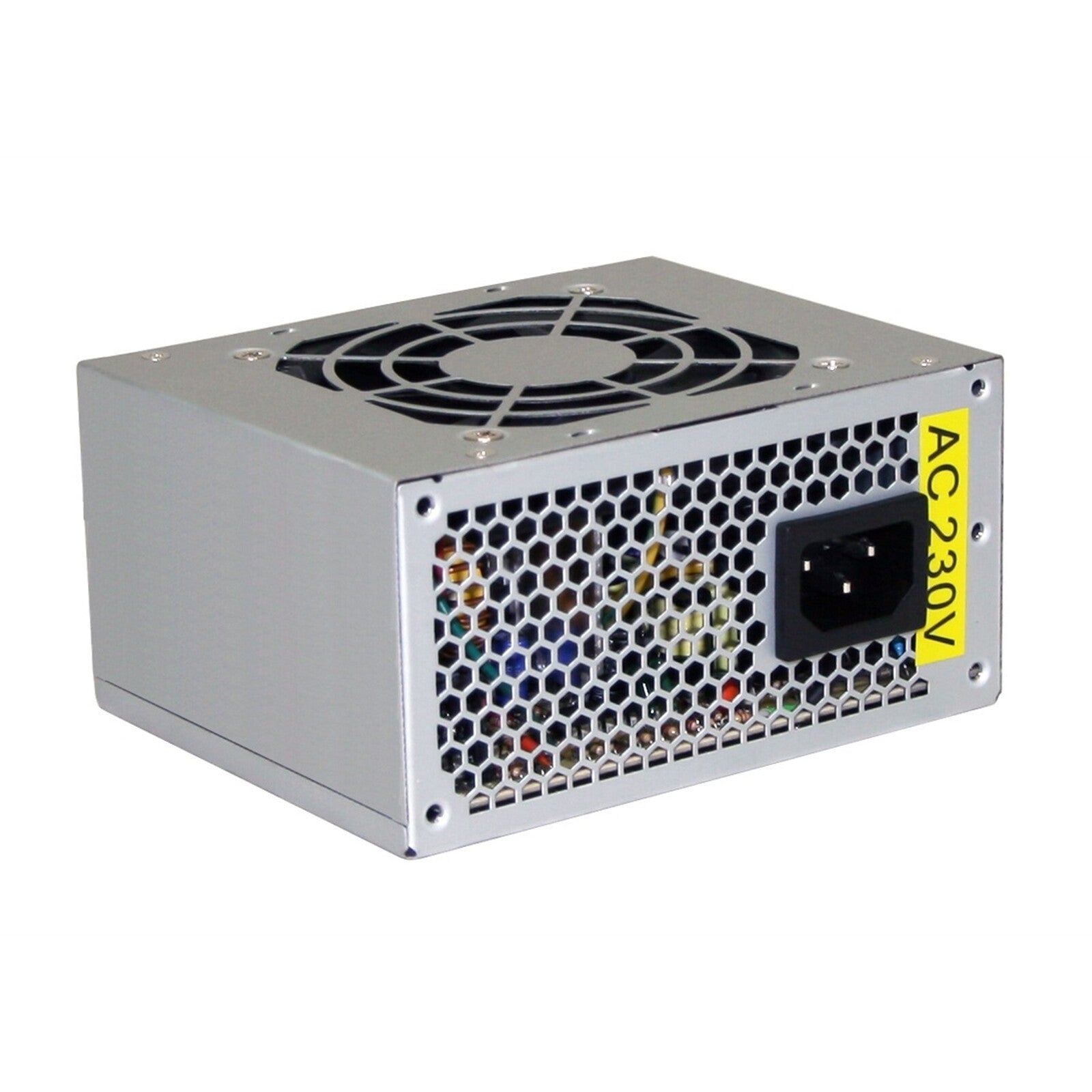

Target M-400U power supply unit 400 W 20+4 pin ATX SFX Grey

Target M-400U power supply unit 400 W 20+4 pin ATX SFX Grey

Target
£20.99
Stock Available: 9
  • •Silent PSU with Temperature Control Fan
  • •ATX 12V Compliant for all kinds of CPU and mainboard
  • •MTBF 50,000 Hours @ 25 degrees C
  • •2 x SATA Connectors
  • •4 x 4-Pin Molex Connectors

    Key Features:
    •Silent PSU with Temperature Control Fan
    •ATX 12V Compliant for all kinds of CPU and mainboard
    •MTBF 50,000 Hours @ 25 degrees C
    •2 x SATA Connectors
    •4 x 4-Pin Molex Connectors

    Model
    M-400U

    Type
    Intel ATX12V 2.31VER

    Dimension (W / H / D)
    125mm x 65mm x 100mm

    Input Voltage
    230Vac

    Input Current
    4A

    Input Frequency Range
    50 ~ 60 Hz

    PFC
    Yes - Passive Power Factor Control

    Power Good Signal
    150-450 ms

    Hold Up Time
    1ms-40ms

    Efficiency
    >75% Typically

    MTBF
    >100,000 hrs

    Protection
    OVP / UVP/ OPP

    Output Capacity
    400W

    Operation Temperature
    45°C

    Fan
    80mm

    Certifications
    CE / FCC / RoHS

    Connector
    20+4 Pin Main Connectors x 1
    P4 4-Pin 12V Connectors x 1
    4-Pin Molex Peripheral Connectors x 4
    SATA Connectors x 2
    Floppy Drive Connectors x 1
Power
Total power 400 W
AC input voltage 230 V
AC input frequency 50/60 Hz
Input current 4 A
Power Factor Correction (PFC) type Passive
Efficiency 75%
Hold time 40 ms
Power protection features Over voltage, Under voltage, Over power
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 2
Peripheral (Molex) power connectors (4-pin) 4
CPU power connector (4+4 pin) Yes
ATX power connector (20+4 pin) Yes
Floppy disk drive connector Yes
Performance
Purpose PC
Power supply unit (PSU) form factor SFX
Mean time between failures (MTBF) 100000 h
Design
Product colour Grey
Cooling type Active
Fan diameter 8 cm
Number of fans 1 fan(s)
Certificates
Certification CE / FCC / RoHS
Weight & dimensions
Width 125 mm
Depth 100 mm
Height 65 mm
Weight 750 g
