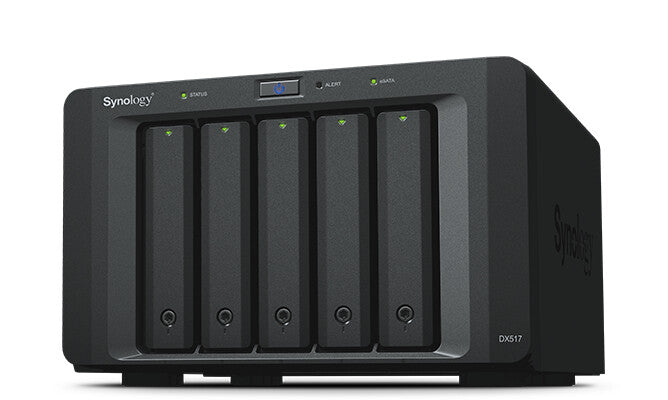

Synology DX517 disk array 30 TB Desktop Black
Couldn't load pickup availability
- Small & Medium Business
- Desktop Black
- HDD Storage drives installed 30 TB
- Hot-swap drive bays
- 200 W
5-bay 3.5"/2.5" SATA expansion
Easily add 5 additional drive bays to Synology DiskStation1. Supporting both 2.5" and 3.5" SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive size | 3.5" |
| Storage drive interface | Serial ATA III |
| Storage drive capacity | 6 TB |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD |
| Total installed storage capacity | 30 TB |
| Number of storage drives installed | 5 |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
| Ports & interfaces | |
|---|---|
| eSATA ports quantity | 1 |
| USB connectivity | No |
| Design | |
|---|---|
| Compatible products | DS1823xs+, DS923+, DS723+, DS1522+, DS1821+, DS1621xs+, DS1621+, DVA3221, DS1520+, DS920+, DS720+, DS1819+, DS1019+, DVA3219, DS1618+, DS918+, DS718+, NVR1218, DS1817+, DS1817, DS1517+, DS1517,DS916+, DS716+II, DS716+,DS1815+, DS1515+, DS1515, DS218+,DS216+II, DS216+, NVR216, DS415+ |
| Fan diameter | 8 cm |
| Noise level | 21.5 dB |
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Desktop |
| Device class | Small & Medium Business |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply unit (PSU) capacity | 200 W |
| Weight & dimensions | |
|---|---|
| Weight | 3.91 kg |
| Height | 157 mm |
| Depth | 233 mm |
| Width | 248 mm |
| Packaging content | |
|---|---|
| Power cables quantity | 1 |
| Cables included | AC, eSATA |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 2000 m |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS |
