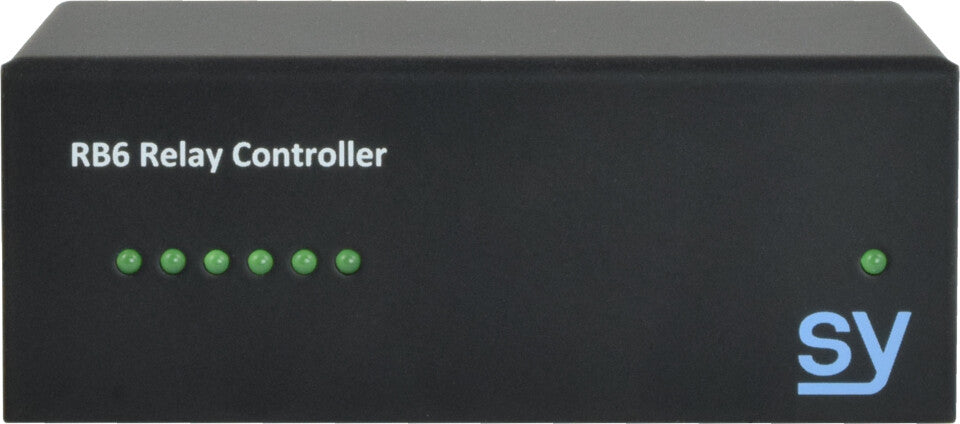

SY Electronics SY-RB6 gateway/controller
£504.99
Couldn't load pickup availability
- 6 Low Voltage (max 30V) single pole changeover relays
- Individually controllable from any RS232 serial port
- On, Off or Toggle commands
- RS232 Feedback
- Compact design
- Rackmount with RS01 shelf

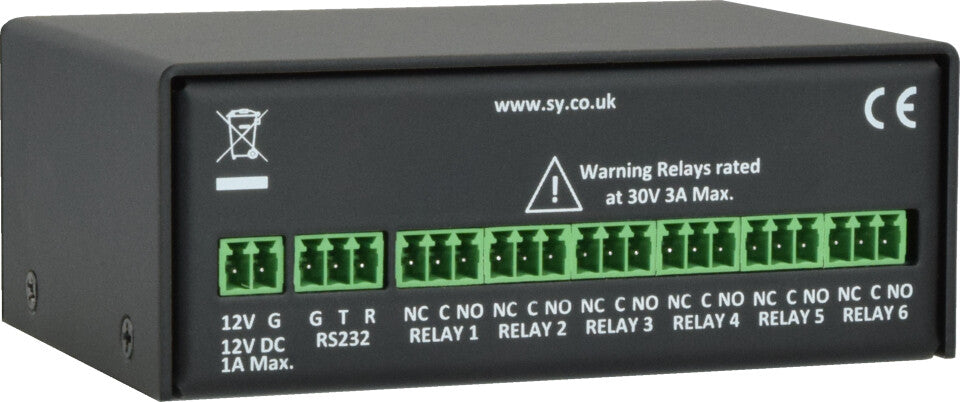

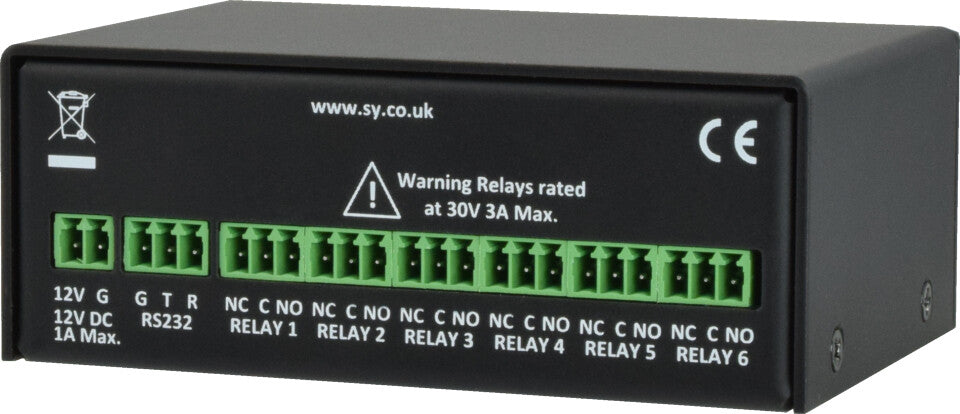

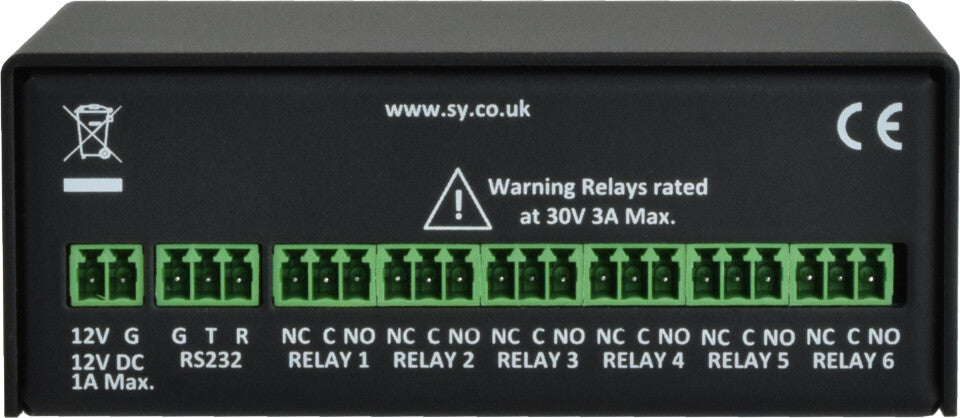

The SY-RB6 provides RS232 control over the 6 low voltage relays. With connections for RS232 and Normally Open, Normally Closed and Common, the RB6 is the ideal choice to interface with other systems requiring a switch or contact closure.
The RB6 is not suitable for use with power connected to the relays above 30V.
| Design | |
|---|---|
| Product colour | Black |
| Mounting type | Rack mounting |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232 |
| Power | |
|---|---|
| Input voltage | 12 V |
| Input current | 1 A |
| Certificates | |
|---|---|
| Certification | CE |
