SY Electronics
£5,646.99
Stock Available: 0
  • 8 HDMI Inputs
  • 8 HDBaseT Outputs
  • True matrix any input to any or multiple outputs
  • EDID Management
  • HDCP 1.4 compliant
  • Analogue audio de-embedder on each output
  • Bi-directional RS232 on each output
  • 2 way IR from Input to Output
  • PoC to receiver on each output
  • RS232 Control

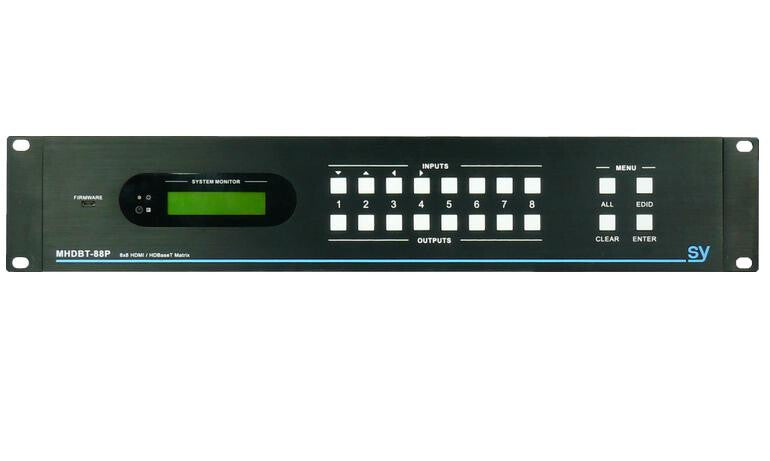

  • Front Panel Control
  • Infra-red Control
  • 2U rackmount chassis
  • Data rate 10.2 Gbps

The MUHDBT-88P is an 8 HDMI input matrix switcher with 8 HDBT outputs, 4 local HDMI outputs and 8 stereo de-embedded audio outputs. Each HDBaseT output can transmit HDMI video, IR & RS232 together with PoC over a single CATx cable to the remote receiver.

A flexible distribution switching platform

Connect to displays and benefit from mirrored outputs to create an 8x12 (8 independent outputs and 4 mirrored outputs).

Full EDID management facility

Ensure accuracy and superior refresh rates with full EDID controls.

De-embed audio

Analogue and digital audio de-embedding via Phoenix and HDMI outputs respectively.

Complete control

Operate control functions via IR, RS232 and LAN.

Combine with SY’s extenders

Extend transmission range up to 70m.

What's in the box

- 1 x 8x8 Matrix
- 1 x 0.5m UK Power Plug
- 9 x Phoenix plugs
- 2 x Rack Mounting Ears with 6 chassis screws
- 1 x IR Handset
- 1 x IR Receiver

Features
Product type AV matrix switcher
Data transfer rate 10.2 Gbit/s
HDCP Yes
HDCP version 1.4
Bidirectional Yes
Extended display identification data (EDID) Yes
EDID management Yes
Design
Housing colour Black
Rack mounting Yes
Rack capacity 2U
Control type Buttons
LED indicators Yes
Display
Built-in display Yes
Display type LED

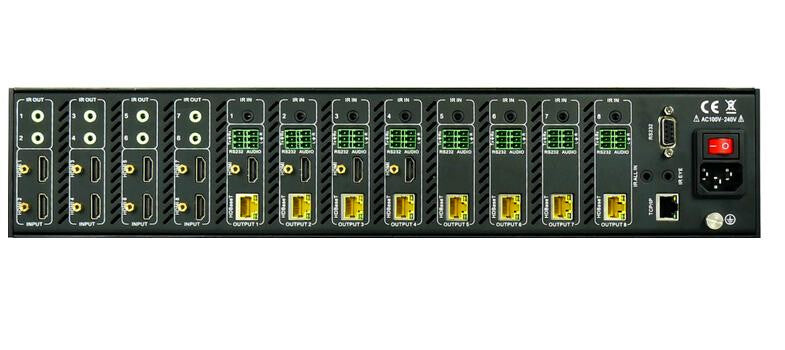

Ports & interfaces
HDMI input ports quantity 8
HDMI output ports quantity 4
RJ-45 output ports 8
USB connector type Micro-USB
RS-232 ports 8
Remote (IR) output 8
Remote (IR) input 8
Power
Power consumption (max) 120 W
Power consumption (typical) 60 W
AC input voltage 100 - 240 V
AC input frequency 50 / 60 Hz
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 483 mm
Depth 380 mm
Height 88 mm
Weight 5.6 kg
