SY Electronics SY-MUHD-88 matrix switcher AV matrix switcher Built-in display
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £586.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 8 HDMI Inputs
- 8 HDMI Outputs
- True matrix: any input to any or multiple outputs
- Analogue & Digital de-embedded audio outputs
- RS232 Contol

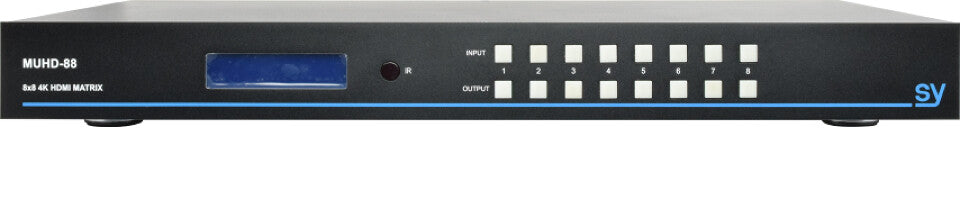

- Front Panel Control
- Infrared Control
- 1U rackmount chassis
- EDID Management
- HDMI 1.4
- HDCP 2.2 compliant
- Data rate 10.2Gbps
This 8-by-8 HDMI true matrix allows any source (Blu-Ray player, Android box, satellite receiver, game system, etc.) to be shown on any of the eight displays simultaneously, equalising and amplifying the HDMI outputs to ensure the HDMI signal can be transmitted through a long cable (up to 15m) without loss of quality. This can be achieved irrespective of whether the source is HDCP compliant or not.
A cost effective distribution switching platform
Robust build quality combined with a superior power supply.
Full EDID management facility
Ensure accuracy and superior refresh rates with full EDID controls.
Complete control
Operate all functions via IR, RS232 and LAN.
Audio De-embedder
Use Phoenix connectors to de-embed analogue audio or use HDMI output to de-embed digital audio to AV receivers.
Combine with SY’s extenders
Extend transmission range up to 100m.
Specifications
Features
| Product type | AV matrix switcher |
|---|---|
| Data transfer rate | 10.2 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| EDID management | Yes |
Design
| Housing colour | Black |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Certification | CE |
Show all 19 specificationsShow fewer specifications
Display
| Built-in display | Yes |
|---|

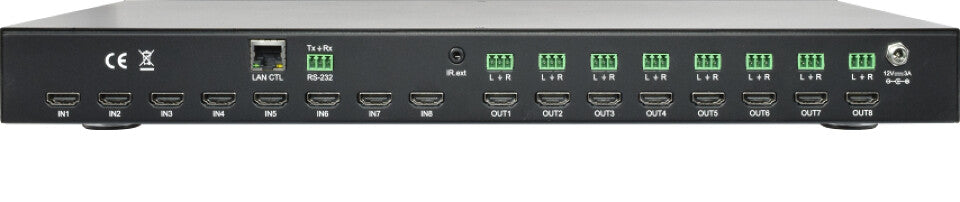

Ports & interfaces
| HDMI input ports quantity | 8 |
|---|---|
| HDMI output ports quantity | 8 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Output voltage | 12 V |
|---|
