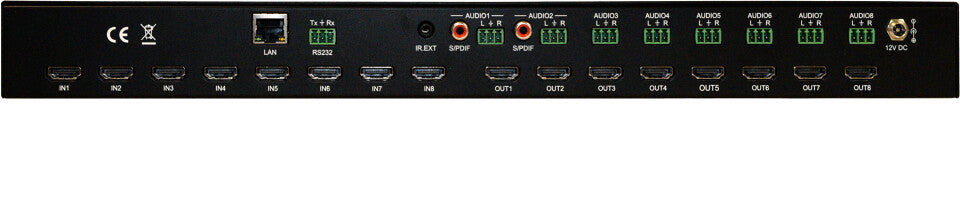

• 8 x HDMI 2.0 (18GHz) Inputs
• 8 x HDMI 2.0 (18GHz) Outputs
• 4K-1080p up/down scaler per output
• 3840 x 2160, 24, 25, 30, 50, 60Hz
• RGB, 8, 10, 12, 16bit, 4:2:0, 4:2:2, 4:4:4, REC.2020, HDR, Dolby Vision, HLG
• True matrix any input to any or multiple outputs
• Analogue and digital de-embedded audio outputs
• RS232 Control

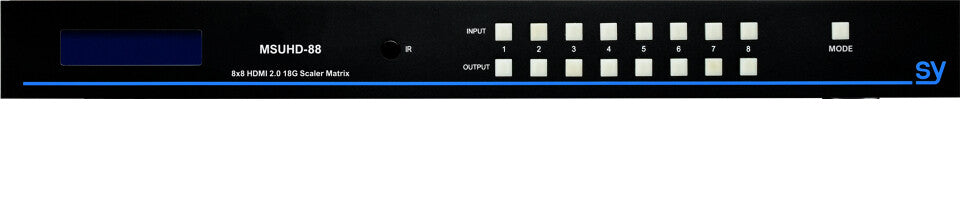

• Front Panel Control
• Infra-red Control
• 1U rackmount chassis
• EDID Management
• HDMI 2.0 (4K2K @ 60Hz 4:4:4) and HDCP 2.2 compliant
• Data rate 18 Gbps

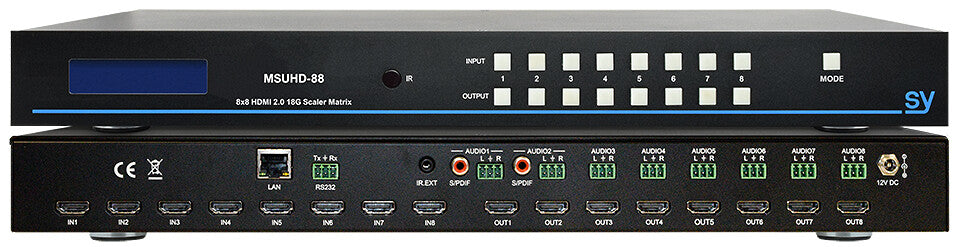

This 8x8 HDMI true matrix allows any source (Blu-Ray player, Android box, satellite receiver, game system, etc.) to be shown on any of the eight displays simultaneously, equalising and amplifying the HDMI outputs to ensure the HDMI signal can be transmitted through a long cable (up to 15m) without loss of quality. This can be achieved irrespective of whether the source is HDCP compliant or not. With 4K to HD and HD to 4K scaling for each output and bandwidth speed of 18Gbps, the MSUHD-88 can connect both 4K and legacy projectors/displays with ease.

Unique up and down scaling
Each individual output port can be scaled up or down from HD to 4K (3840x2160) and from 4K (3840x2160) to HD, allowing integration of the latest OLED and HD legacy screens to view HVEC.265 Blu Ray source.
4K Ultra HD (600MHz clock)
Transmits 18Gbps, the highest specified under the HDMI 2.0 standard for the fullest 4K and the best HDR image.
Advanced EDID management
Instantly solves incompatibility issues.
Audio De-embedder
Audio de-embedded to both analogue L/R audio and S/PDIF digital outputs.
Complete control
Operate all functions via IR, RS232 and LAN.
Transmit 4K via Centaur AOC to 30m
Combine with SY's HDMI and AOC cables to display 4K with the best HDR performance available.
Combine with SY’s extenders
Extend 1080p transmission range beyond 100m and up to 70m @ 4k
