SY Electronics SY-MMU-1616 matrix switcher Modular AV matrix switchers Built-in display
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,092.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 16x16 Chassis (4K UHD)
- Multi-format Transcoding Matrix
- UHD HDMI I/Os
- HDBaseT I/Os
- UHD Fibre I/Os
- DVI Seamless I/Os
- VGA I/Os
- DVI I/Os
- SDI I/Os
- RS232 Control
- Front Panel Control
- Infra-red Control
- EDID Management
- HDCP 1.4 Compliant
- Pixel accurate re-clocking
- Hot-swappable
- Rackmount chassis
- Internal PSU
- Data rate 10.2 Gbps

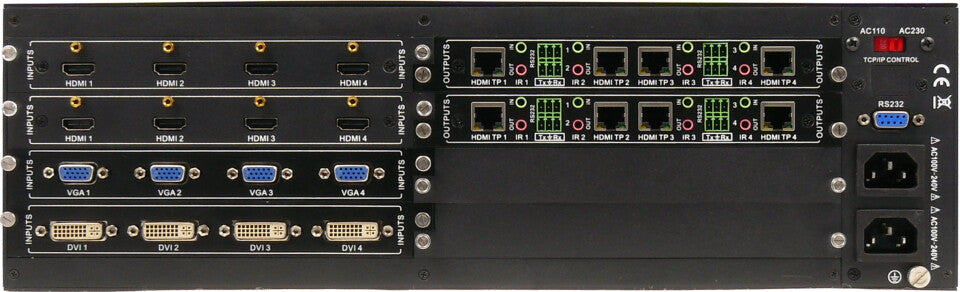

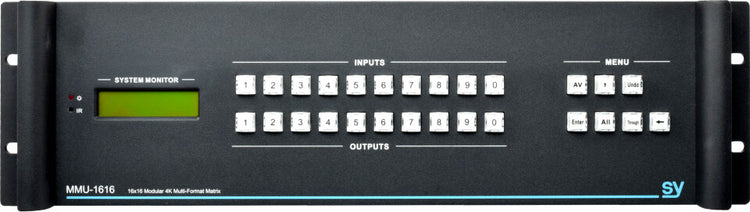

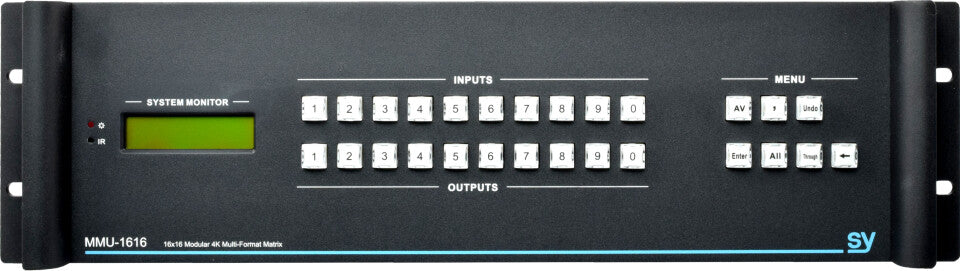

The MMU-1616 is a modular multi-format matrix with 4 input slots & 4 output slots. It supports digital and analogue signal cards and is HDCP compliant. The unit is 4U rack mountable and features RS232 and TCP/IP control and an integral 110/230V redundant power supply.
Designed for demanding professionals
SY MMU series provides the widest range of connections all within one chassis, offering a high-performance customisable matrix switching platform.
Modular System
Choose any combination of input and output HDMI (HD/4K), HDBaseT (4K/HD) UHD Fibre, DVI, SDI, VGA plus various audio I/O.
Upgrade
Populate the right number of inputs and outputs to meet the requirements of each specific project by upgrading and replacing input and output cards.
Control
With LAN, IR, and RS232, the unit is easy to control and ready for connection to SY control panels.
Specifications
Features
| Product type | Modular AV matrix switchers |
|---|---|
| Data transfer rate | 10.6 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| EDID management | Yes |
Design
| Housing colour | Black |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 4U |
| Certification | CE |
Show all 15 specificationsShow fewer specifications
Display
| Built-in display | Yes |
|---|
Ports & interfaces
| HDMI input ports quantity | 8 |
|---|---|
| DVI-I input ports | 4 |
| VGA (D-Sub) input ports | 4 |
| RS-232 ports | 1 |
Power
| AC input voltage | 110 - 230 V |
|---|
