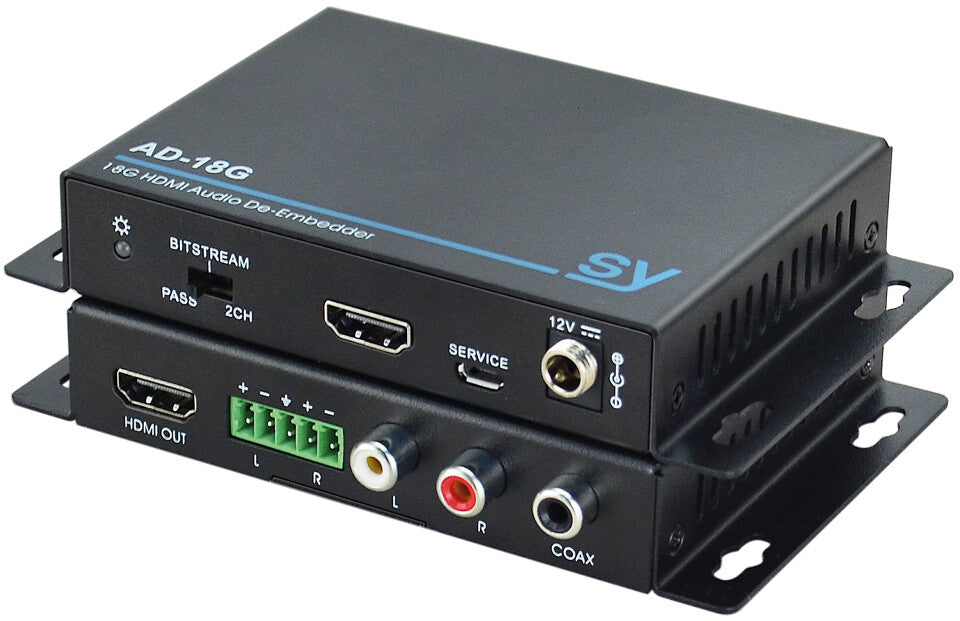

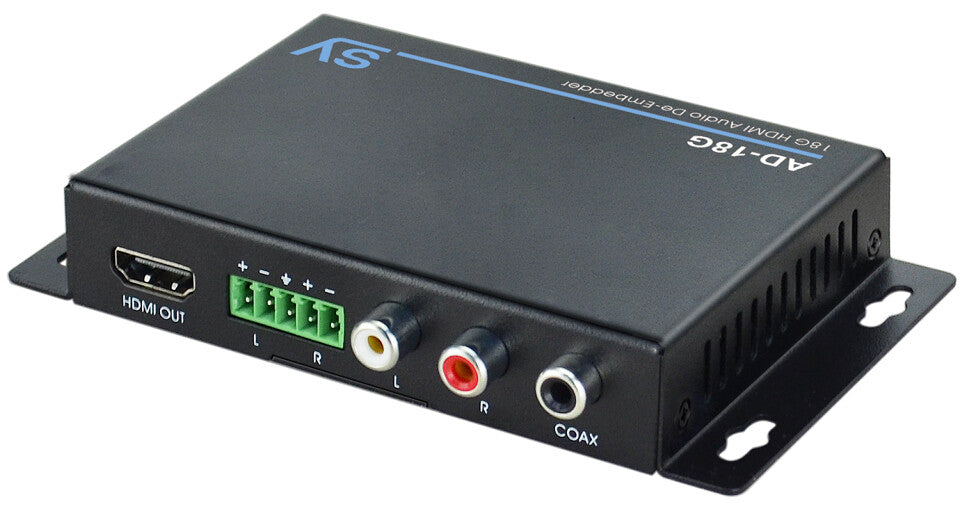

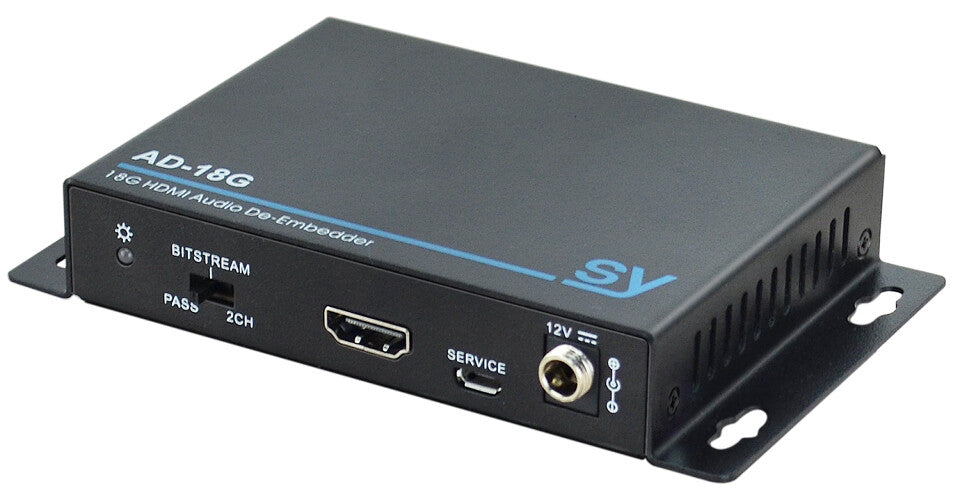

SY Electronics SY-AD-18G audio converter Black
£139.99
Couldn't load pickup availability
- HDMI 2.0, 4K60 4:4:4 (18G), HDCP 2.2, HDR and CEC compliant
- HDMI HBR (high Bit Rate) supported in PASS model
- LPCM 2.1, Dolby 2/5.1 and DTS 2/5.1
- Balanced stereo analogue and Coax S/PDIF audio outputs
- Audio De-embed, even when no display connected
- Supported Audio input modes: Pass-through, Bitstream, PCM
The AD-18G de-embedder is HDMI 2.0, 4K60 4:4:4 (18Gbps) rated, with EDID and CEC pass-through.
In 2Ch mode, it de-embeds the audio simultaneously to all 3 audio outputs (Balance stereo, unbalanced & Coaxial S/PDIF).
In Bitstream mode, the audio is de-embedded only to the Coax S/PDIF.
| Inputs | |
|---|---|
| HDMI in | 1 |
| DC-in jack | Yes |
| Outputs | |
|---|---|
| Number of HDMI outputs | 1 |
| Audio (L/R) out | 1 |
| Digital audio coaxial out | 1 |
| Technical details | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Housing material | Steel |
| Product colour | Black |
| Power | |
|---|---|
| Operating voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Width | 129 mm |
| Depth | 77 mm |
| Height | 21.5 mm |
| Weight | 245 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
