SY Electronics SY-1A-25R audio amplifier 2.0 channels Performance/stage Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £103.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Balanced Analogue Stereo input
- Mono/Stereo modes
- 25 watts output per channel into 8ꭥ
- 4ꭥ to 8ꭥ speaker compatible
- RS232 controllable
- Absolute Volume commands
- Efficient Class-D design
The SY-1A-25R is a Compact 2x 25W Audio Amplifier, with RS232 Control.
This stereo amplifier has both balanced and unbalanced analogue inputs. The efficient class-D stereo amplifier provides 25W per channel into a pair of 8ꭥ speakers.
This AMP is configurable to work in either Mono/Stereo modes for compatibility with various speaker configurations, and is able to work with loud speaker load impedance of between 4ꭥ and 8ꭥ per channel.

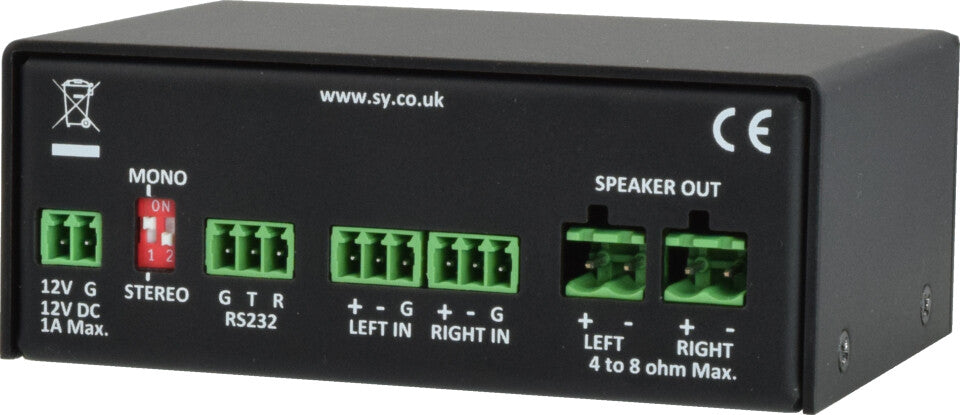

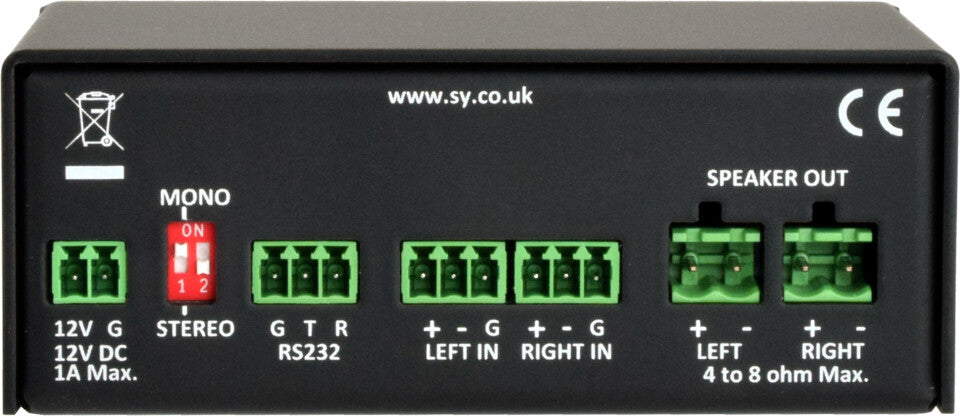

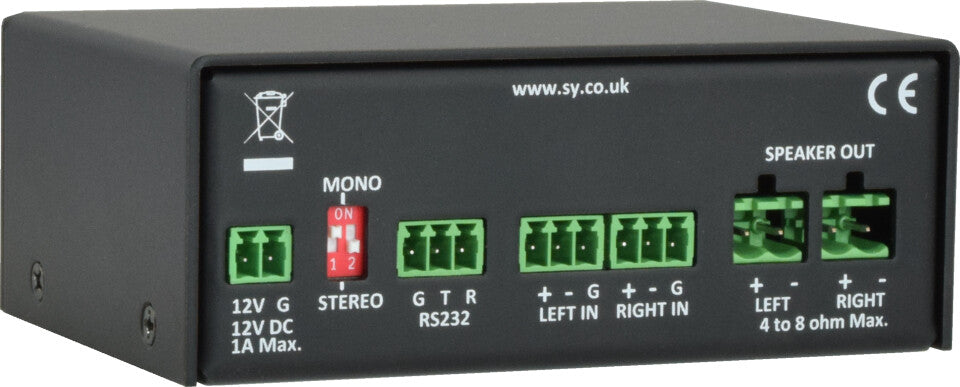

To ensure a neat installation, all connections are on the rear side via phoenix connectors. A rack mount shelf is also available as an optional accessory SY-RS-01
The 1A-25R is fully controllable via RS232, this includes Absolute Volume which can be crucial for exact/ accurate system control when used with control systems
This unit is compact and light weight, with high efficiency and low heat dissipation thanks to the modern class-D design, making this an ideal product for rack installation and for fitting into credenzas and AV cupboards as found in many boardroom and classroom equipment installation scenarios. Ideal for small to medium size meeting rooms.
Specifications
Audio
| Audio output channels | 2.0 channels |
|---|---|
| Peak power per channel | 25 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.1% |
| Frequency range | 20 - 20000 Hz |
Ports & interfaces
| Audio (L/R) in | 1 |
|---|---|
| Audio (L/R) out | 1 |
Show all 21 specificationsShow fewer specifications
Technical details
| Purpose | Performance/stage |
|---|---|
| Connectivity technology | Wired |
| Product colour | Black |
| Quick start guide | Yes |
Power
| DC input voltage | 24 V |
|---|---|
| Power consumption (typical) | 55 W |
| Maximum current | 3 A |
Weight & dimensions
| Width | 108 mm |
|---|---|
| Depth | 75 mm |
| Height | 41 mm |
| Weight | 200 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Indication
| LED indicators | Yes |
|---|
Certificates
| Certification | CE |
|---|
