• Multi-Format Hub
• Choose from VGA, DisplayPort or HDMI sources
• Independent Outputs
• Each independent output is designed to extend the transmission of up to 3 displays
• Transmit 4K up to 70m
• Choose a number of SY’s extenders to transmit 3840x2160 8bits 30Hz up to 70m
• Full control
• RS232, Ethernet, and IR control with separate RS232 port for the HDBaseT outputs and IR control to or from the remote location via the HDBaseT outputs
• Advanced EDID management
• Ensure accuracy, superior refresh rates and instantly solve incompatibility issues with EDID control via web GUI
• Audio De-embedder
• Use Phoenix connectors to output analogue L+R

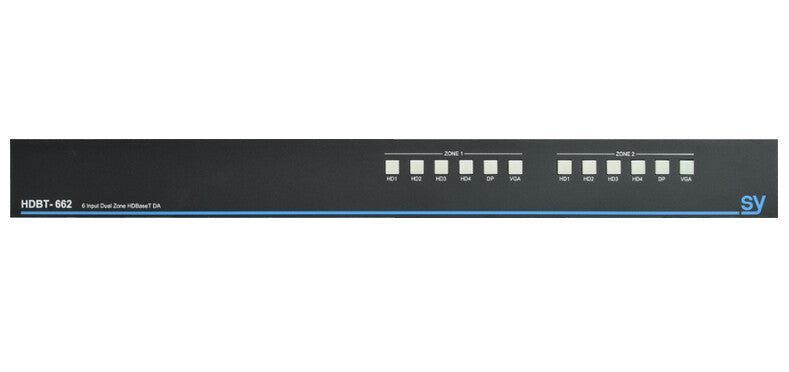

• Front Panel
• Illuminated front panel buttons for each input and output combination
• HDCP support
• HDMI input 1 supports HDCP 2.2

The HDBT-662 is a six input distribution amplifier with 4 x HDMI, 1 x DisplayPort and 1 x VGA inputs and dual output zones, each providing a local HDMI output and three HDBaseT outputs. The input source for these zones can be independently selected from either the front panel buttons using RS232 commands or the Ethernet port.
