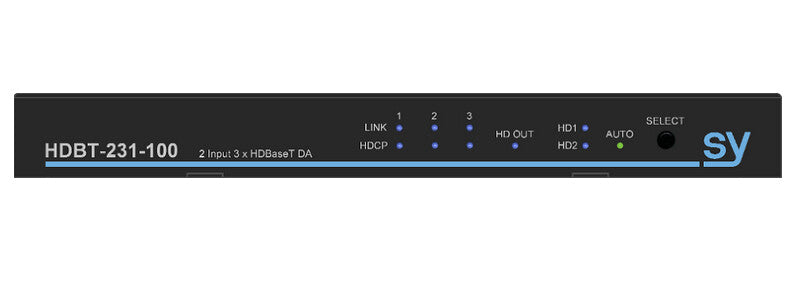

SY Electronics HDBT-231-100 AV transmitter Black
£903.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £301.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- AV transmitter Black
- Maximum transfer distance: 100 m
- EDID management
- HDCP
- Wired
The HDBT-231-70/100 is a dual HDMI to 3x HDBaseT Transmitter with a local HDMI loop out - Single Zone DA.
The HDBT-231-70 and HDBT-231-100 provide a selection from one of two HDMI input sources and distributes that selection to three HDBaseT outputs and a local HDMI output.
The HDBaseT outputs can respectively broadcast up to 70m/100m @ 1080p or 40m/70m @ 4K 30Hz using cat6a cable (using HDBT-70SE-R or HDBT-100-SLIM-R receivers).
Specifications
Features
| Type | AV transmitter |
|---|---|
| Maximum transfer distance | 100 m |
| EDID management | Yes |
| Extended display identification data (EDID) | Yes |
| RS-232 pass-through | Yes |
| Bidirectional | Yes |
| IR pass-through | Yes |
| Bandwidth | 10.2 Gbit/s |
| HDCP version | 2.2 |
| HDCP | Yes |
| Rack mounting | Yes |
| Supported video modes | 1080p |
| Product colour | Black |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 output ports | 3 |
| HDBaseT port | Yes |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| HDMI in | 2 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Audio output | 1 |
Show all 25 specificationsShow fewer specifications
Power
| Operating voltage | 48 V |
|---|
