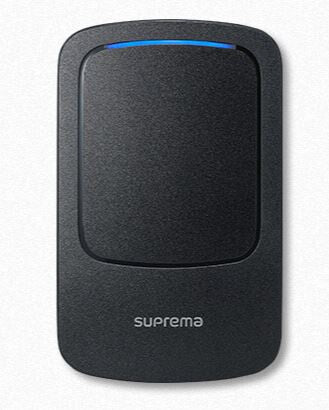

Suprema XP2-GDPB access control reader Basic access control reader
£517.99
Couldn't load pickup availability
- Basic access control reader
- Access chip/card Access chip/card reader
- Built-in processor 1000 MHz
- Internal memory: 4 GB
- Wi-Fi Bluetooth Near Field Communication (NFC) PC connected Power over Ethernet (PoE)
Heavy salt damage resistance specifications (ISO 14993 compliant)
| Technical details | |
|---|---|
| Certification | CE, FCC, KC, RoHS, REACH, WEEE, SIG |
| IK code | IK08 |
| International Protection (IP) code | IP67 |
| Number of users | 200000 user(s) |
| Fingerprint reader | No |
| Access code reader | No |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contactless |
| Waterproof | Yes |
| RFID frequency | 125000 MHz |
| Built-in relay | Yes |
| Wiegand interface | Yes |
| Buzzer | Yes |
| LED indicators | Status |
| Vandal-proof | Yes |
| Authentication type | Access chip/card |
| Type | Basic access control reader |
| Display | |
|---|---|
| Built-in display | No |
| Camera | |
|---|---|
| Front camera | No |
| Performance | |
|---|---|
| Flash memory | 64 GB |
| Internal memory | 4 GB |
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
| Ports & interfaces | |
|---|---|
| PC connected | Yes |
| RS-485 ports | 1 |
| PC connection | RS-485/RJ-45 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Near Field Communication (NFC) | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Power | |
|---|---|
| DC voltage range | 12/24 V |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Width | 80 mm |
| Depth | 25 mm |
| Height | 130 mm |
| Weight | 220 g |
| Mounting bracket weight | 52 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -35 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
