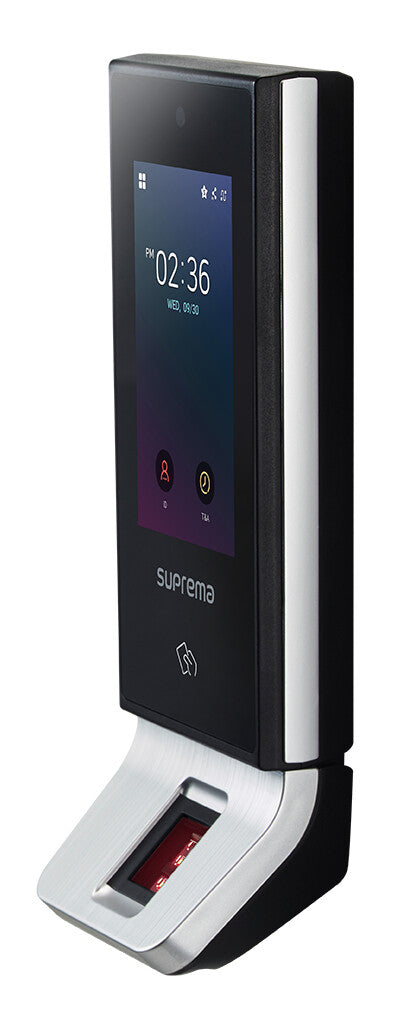

Suprema X-Station 2 is a versatile intelligent terminal that supports RFID cards, Mobile Access as well as QR codes, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X-Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4 ” wide touchscreen, and IP65 rating.
Multi-technology Terminal
with Various Credential Options
X-Station 2 provides multiple credential options of RFID cards, Mobile Access and QR codes, offering maximum system design flexibility. Mobile Access and QR code authentication let users go cardless and carefree by using smartphones as credentials.
Comprehensive RFID Card Compatibility
X-Station 2 is compatible with most existing RFID card technology.
It supports both LF (125kHz) and HF (13.56MHz) RFID as well as various card types including EM, MIFARE, MIFARE Plus, iCLASS, DESFire and FeliCa.
Enhanced Security
and Data Protection
X-Station 2 guards against malware attacks and data breaches with secure boot process. By supporting OSDP (Open Supervised Device Protocol), the terminal encrypts bi-directional RS-485 communication. Using the built-in camera, X-Station 2 can also capture image logs for added security.
Designed for
easy deployment
and management
X-Station 2 enables convenient installation with less wiring by supporting Power over Ethernet (PoE) as well as various interfaces like Wiegand, RS-485, TTL input and Relay. IP65 rated, X-Station 2 is dust-tight, water resistant and easy to maintain.

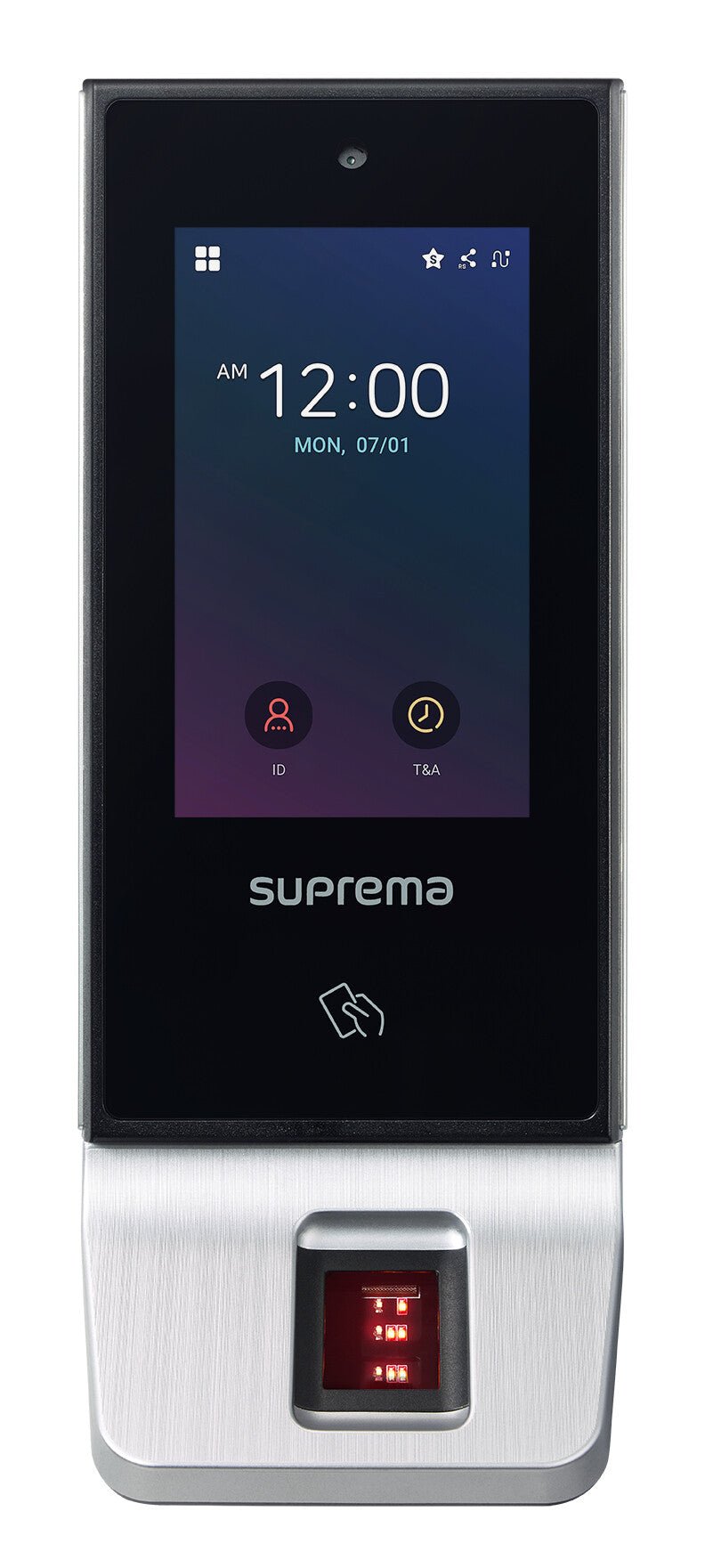

Improved Usability of Intuitive UI on Touchscreen
X-Station 2 allows quick and easy access to features on its 4 ” wide capacitive touchscreen. You can also customize the display for branding purposes.
Expanded Capacity for More Users and
Security Logs
X-Station 2’s large memory can sufficiently meet enterprise needs. Its 16 GB Flash and 1 GB RAM can handle up to 500,000 users,
5 million text logs and 50,000 image logs.
