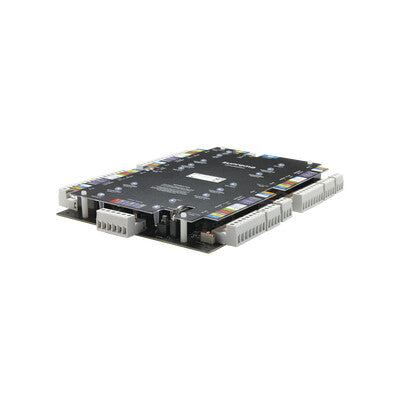

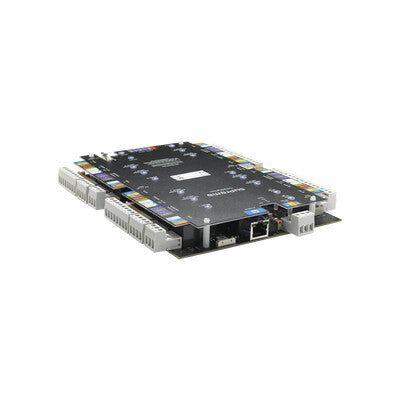

Suprema CoreStation security door controller 4 door(s) RJ-45 / RS-485
£1,018.99
Couldn't load pickup availability
- Maximum number of doors: 4 door(s)
- Interface: RJ-45 / RS-485
- Ethernet LAN
- Operating temperature (T-T): 0 - 50 °C
Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar2 platform.
Centralized Biometric Access Control
Centralized storage for user and access control data including fingerprint credentials
| Technical details | |
|---|---|
| Relay inputs | 4 |
| Number of users | 500000 user(s) |
| Card holders quantity | 1 |
| Interface | RJ-45 / RS-485 |
| Built-in UPS | No |
| Maximum number of doors | 4 door(s) |
| Performance | |
|---|---|
| Certification | CE, FCC, KC, RoHS, WEEE, REACH |
| Number of Wiegand readers supported | 4 |
| Wiegand interface | Yes |
| Number of built-in relays | 4 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Storage media | Flash |
| Internal storage capacity | 8 GB |
| Internal memory type | RAM |
| Internal memory | 1 GB |
| Processor cores | 8 |
| Processor frequency | 1.4 GHz |
| Power | |
|---|---|
| Operating current | 3 A |
| Operating voltage | 12 V |
| Ports & interfaces | |
|---|---|
| RS-485 ports | 5 |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 214 mm |
| Height | 21 mm |
| Weight | 415 g |
