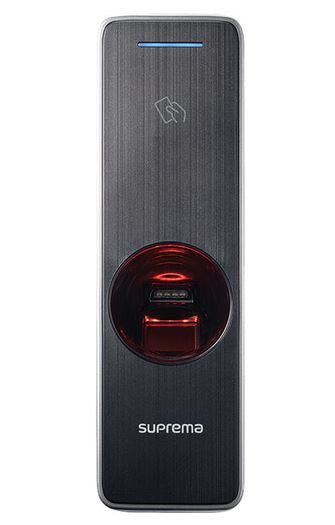

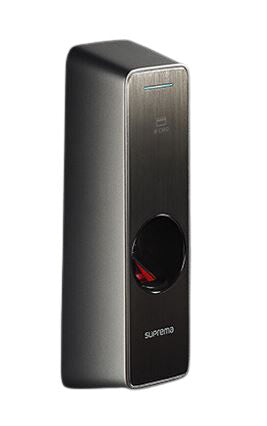

Suprema BEW2-OAPB access control reader Basic access control reader
£1,041.99
Couldn't load pickup availability
- Basic access control reader
- Access chip/card, Biometric Fingerprint reader Access chip/card reader
- Built-in processor 1200 MHz
- Internal memory: 2 GB
- Wi-Fi Near Field Communication (NFC) PC connected Power over Ethernet (PoE)
| Technical details | |
|---|---|
| IK code | IK08 |
| International Protection (IP) code | IP67 |
| Number of users | 500000 user(s) |
| Fingerprint reader | Yes |
| Access code reader | No |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contact |
| Waterproof | Yes |
| RFID frequency | 125000 MHz |
| Built-in relay | Yes |
| HID support | Yes |
| Buzzer | Yes |
| LED indicators | Status |
| Vandal-proof | Yes |
| Authentication type | Access chip/card, Biometric |
| Type | Basic access control reader |
| Display | |
|---|---|
| Built-in display | No |
| Camera | |
|---|---|
| Front camera | No |
| Performance | |
|---|---|
| Flash memory | 256 GB |
| Internal memory | 2 GB |
| Processor frequency | 1200 MHz |
| Built-in processor | Yes |
| Ports & interfaces | |
|---|---|
| PC connected | Yes |
| RS-485 ports | 1 |
| PC connection | RS-485/RJ-45 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Near Field Communication (NFC) | Yes |
| Wi-Fi | Yes |
| Power | |
|---|---|
| DC voltage range | 12 V |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Width | 50 mm |
| Depth | 43.5 mm |
| Height | 172 mm |
| Weight | 251 g |
| Mounting bracket weight | 43 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | -40 - 70% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | 0 - 80 °C |
